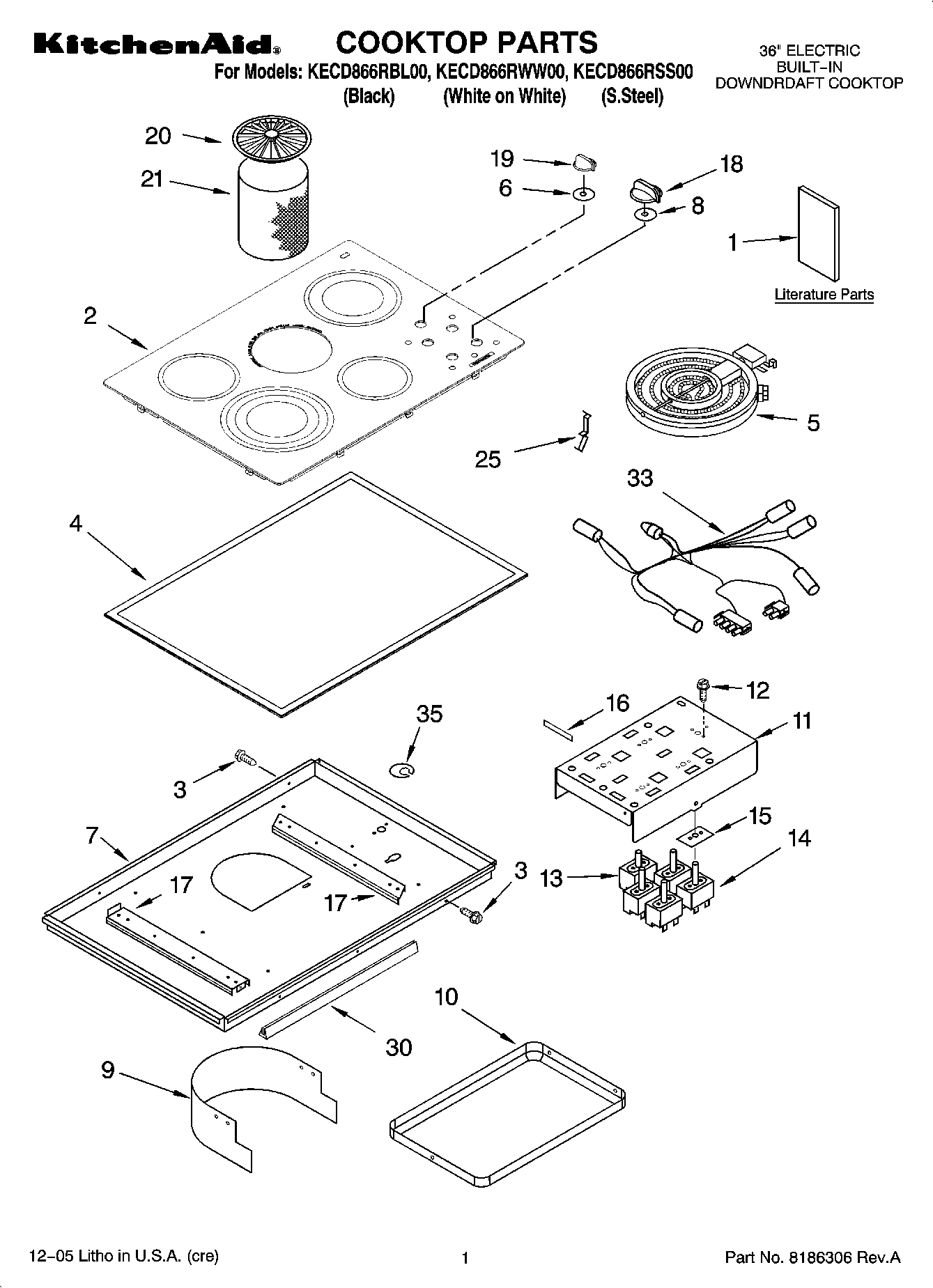

KECD866RSS00 01 – COOKTOP PARTSadmin2025-04-26T12:14:19+00:00KECD866RSS00 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | Installation Instructions |
| 1 | Use & Care Guide |
| 1 | Wiring Diagram |
| 1 | Safe Cooking Tips (French) |
| 1 | Safe Cooking Tips |
| 2 | Foam, Seal |
| 2 | W10141009 Whirlpool Cooktop |
| 2 | Cooktop, Glass & Bracket Assembly (White) |
| 3 | WP3196557 Whirlpool Screw |
| 4 | Frame, Cooktop (S.Steel Only) |
| 5 | Element, Surface (RR 1000/2000W) |
| 5 | W10823711 Whirlpool Surface Element Left Front and Right Rear |
| 5 | W10823699 Whirlpool Right Front Surface Element |
| 5 | Element, Surface (2500/1800/900W LF) |
| 6 | WP3188425 Whirlpool Seal Switch |
| 7 | Box, Burner |
| 8 | 3183956 Whirlpool Oven Seal Switch |
| 9 | Shield, Vent |
| 9 | WP3177991 Whirlpool Screw |
| 10 | Drip Bowl, Grease |
| 11 | Bracket, Control Mounting |
| 12 | WP486579 Whirlpool Air Conditioner Screw |
| 13 | WP4456836 Whirlpool Speed Switch |
| 14 | WP3191049 Infinite Switch Left Rear Right Front |
| 14 | WP4456027 Whirlpool Infinite Switch Right Rear |
| 14 | WP8286070 Whirlpool Infinite Switch Left Front |
| 15 | 8285469 Whirlpool Oven Seal Switch |
| 16 | W10491984 Whirlpool Switch Seal |
| 17 | Rail, Element (Left Hand) |
| 17 | Rail, Element (Right Hand) |
| 18 | Knob, Control (4) (Cashmere Metal) |
| 18 | WP8286096BL Whirlpool Knob |
| 18 | 8286096WH Whirlpool Knob |
| 19 | Knob, Blower Switch (Cashmere Metalic) |
| 19 | WP8286097BL Whirlpool Knob |
| 19 | Knob, Blower Switch (White) |
| 20 | Grille, Air (Cashmere Metalic) |
| 20 | Grille, Air (White) |
| 20 | Grille, Air (Black) |
| 21 | Filter, Grease |
| 25 | 9759094 Whirlpool Spring |
| 25 | WP486754 Whirlpool Compactor Screw |
| 30 | Gasket, Vent Shield |
| 33 | Lamp, Hot Surface Indicator |
| 35 | WPL 3193094 |
