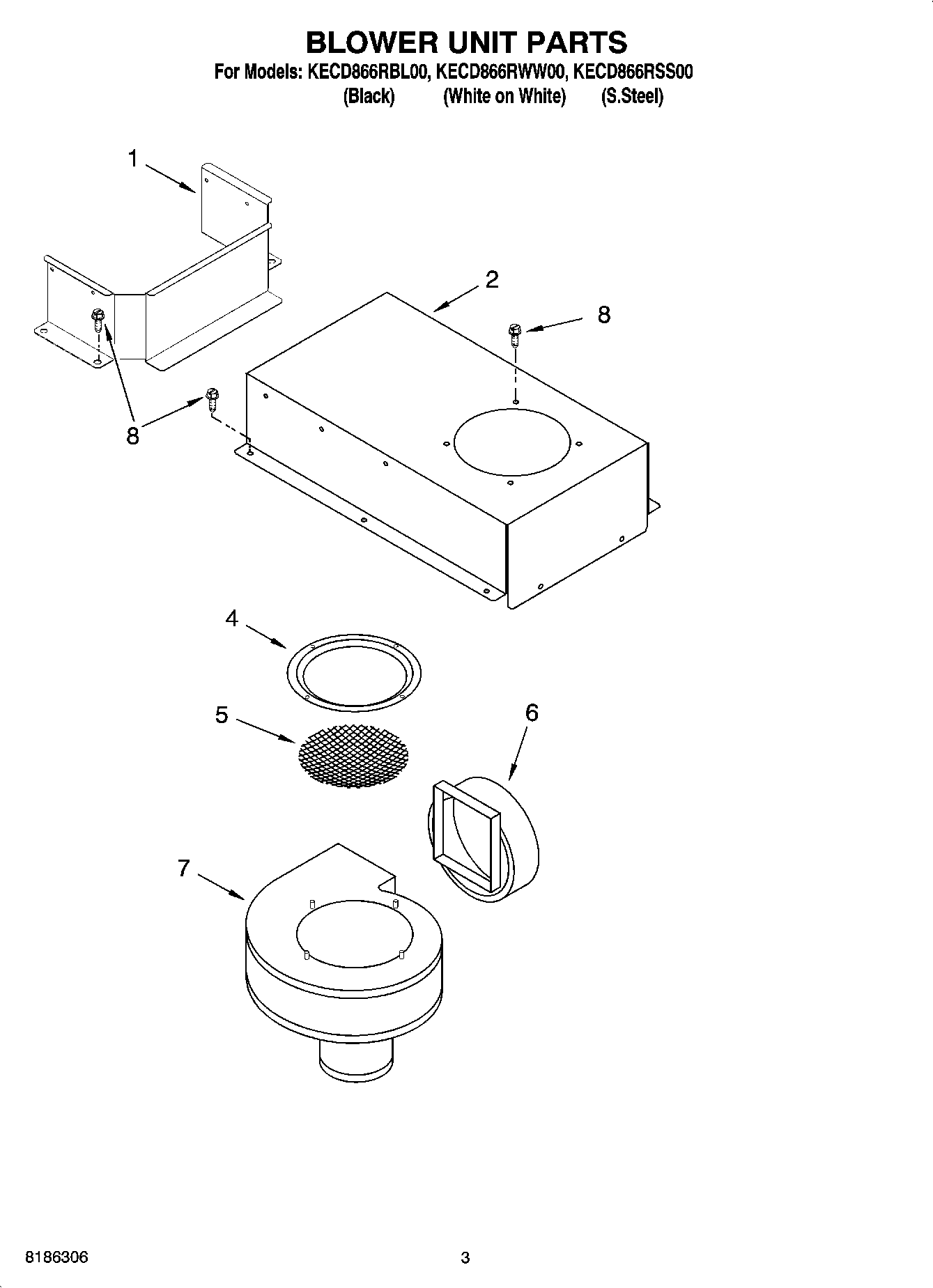

KECD866RSS00 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

Position	Product
	8186533 Whirlpool Hardware
	Wire (14 Ga. 200 c Brown)
	1
	WIRING HARNESS PARTS
	Hardware Asm.
	WPL 4456028
	4456859 Whirlpool Oven Wire Harness
	Strain Relief
	Conduit, Downdraft
	Harness, Wire (Ceran Downdraft)
	FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
	FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES–25FT. LENGTH
	ACCESSORY PARTS
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP3400093 Whirlpool Screw
	WP3400015 Whirlpool Screw
	8528351 Whirlpool Clip
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire, 25“ Roll (White 14 GA.)
1	Bracket, Shield
2	Bracket, Blower Mounting
4	Ring, Inlet
5	Screen, Inlet
6	Adapter, Vent
7	WPW10109930 Whirlpool Blower Assembly
8	WP3196557 Whirlpool Screw
