KECD866RSS02 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
8186533 Whirlpool Hardware
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
Hardware Asm.
WPL 4456028
4456859 Whirlpool Oven Wire Harness
Strain Relief
Conduit, Downdraft
Harness, Wire (Ceran Downdraft)
FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES–25FT. LENGTH
ACCESSORY PARTS
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
WP3400015 Whirlpool Screw
WP3400093 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WIRING HARNESS PARTS
WP8286642 Whirlpool Tape
8528351 Whirlpool Clip
242831 Whirlpool Oven Wire
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)

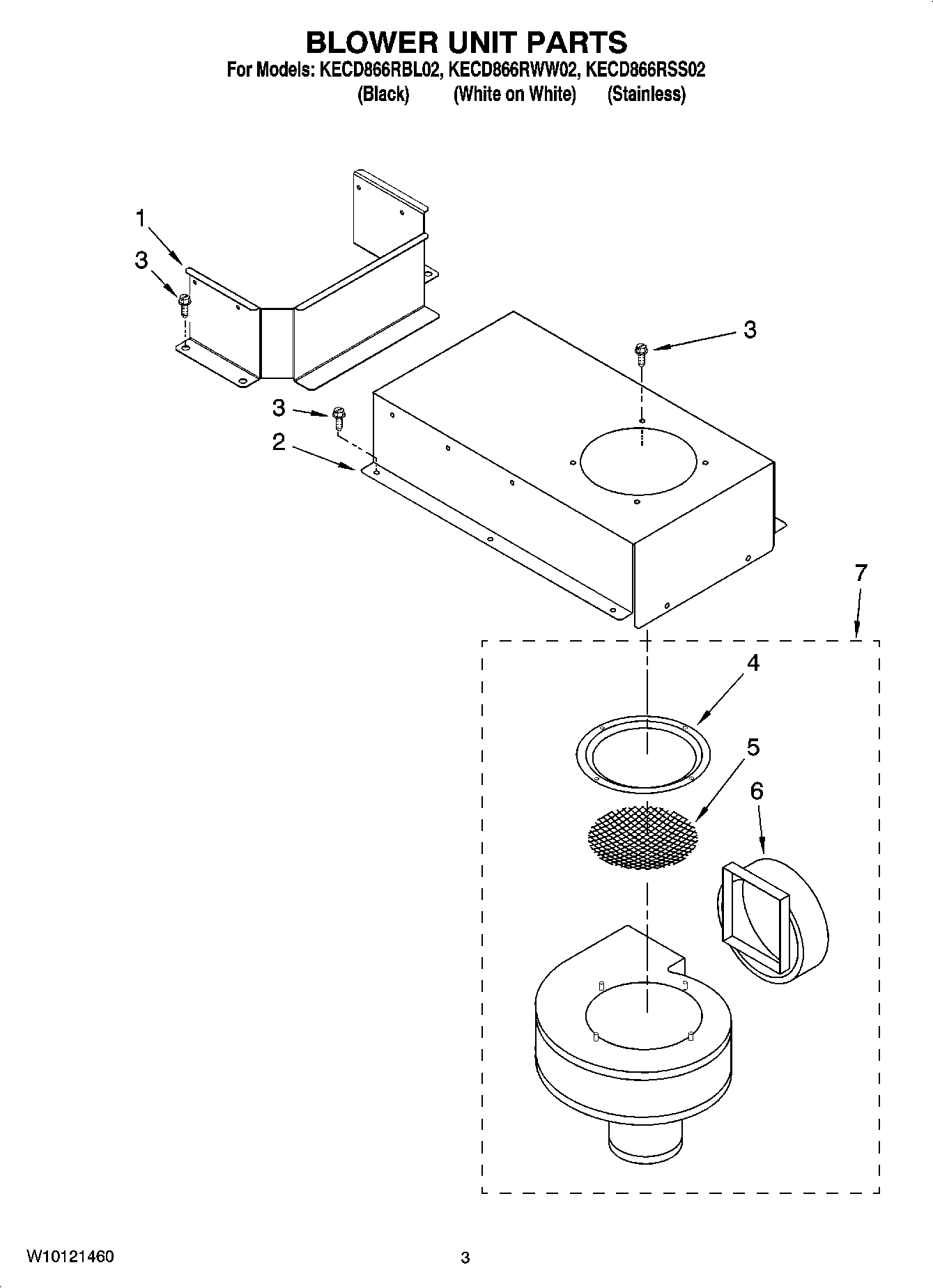

1Bracket, Shield
2Bracket, Blower Mounting
3WP3196557 Whirlpool Screw
4Ring, Inlet
5Screen, Inlet
6Adapter, Vent
7WPW10109930 Whirlpool Blower Assembly
