KECD866RSS03 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
8186533 Whirlpool Hardware
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL 4456028
4456859 Whirlpool Oven Wire Harness
Strain Relief
Conduit, Downdraft
Harness, Wire (Ceran Downdraft)
Following Parts Not Illustrated
Miscellaneous
SPLICING WIRES–25FT. LENGTH
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
WP3400015 Whirlpool Screw
WP3400093 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WIRING HARNESS PARTS
WP8286642 Whirlpool Tape
8528351 Whirlpool Clip
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire

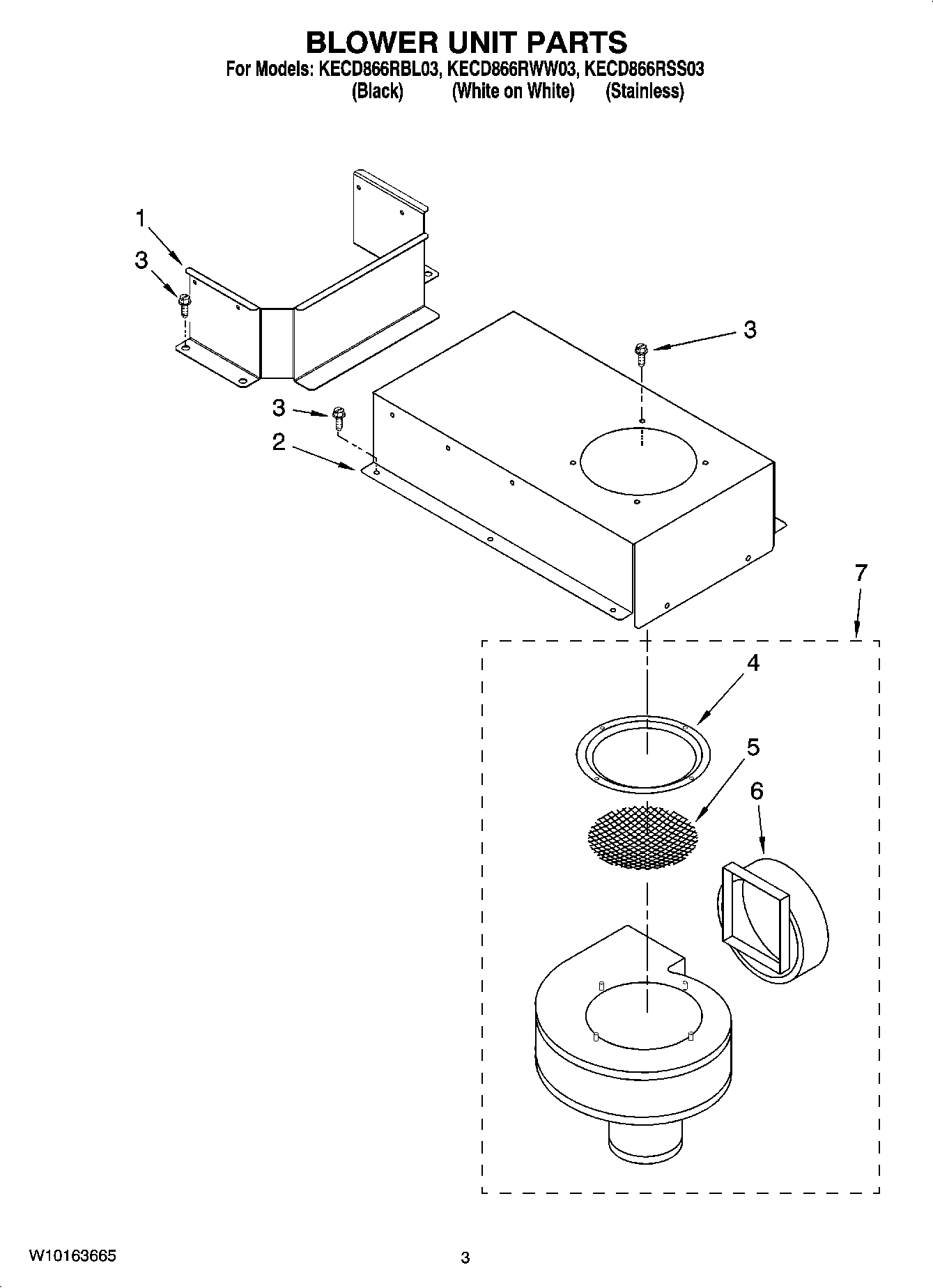

1Bracket, Vent Shield
2Bracket, Blower Mounting
3WP3196557 Whirlpool Screw
4Ring, Inlet
5Screen, Inlet
6Adapter, Vent
7WPW10109930 Whirlpool Blower Assembly
