KECD866RSS04 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
8186533 Whirlpool Hardware
Wire (14 Ga. 200 c Brown)
1
WIRING HARNESS PARTS
WPL 4456028
4456859 Whirlpool Oven Wire Harness
Strain Relief
Conduit, Downdraft
Harness, Wire (Ceran Downdraft)
FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
SPLICING WIRES–25FT. LENGTH
ACCESSORY PARTS
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP3400093 Whirlpool Screw
8528351 Whirlpool Clip
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
WP8286642 Whirlpool Tape

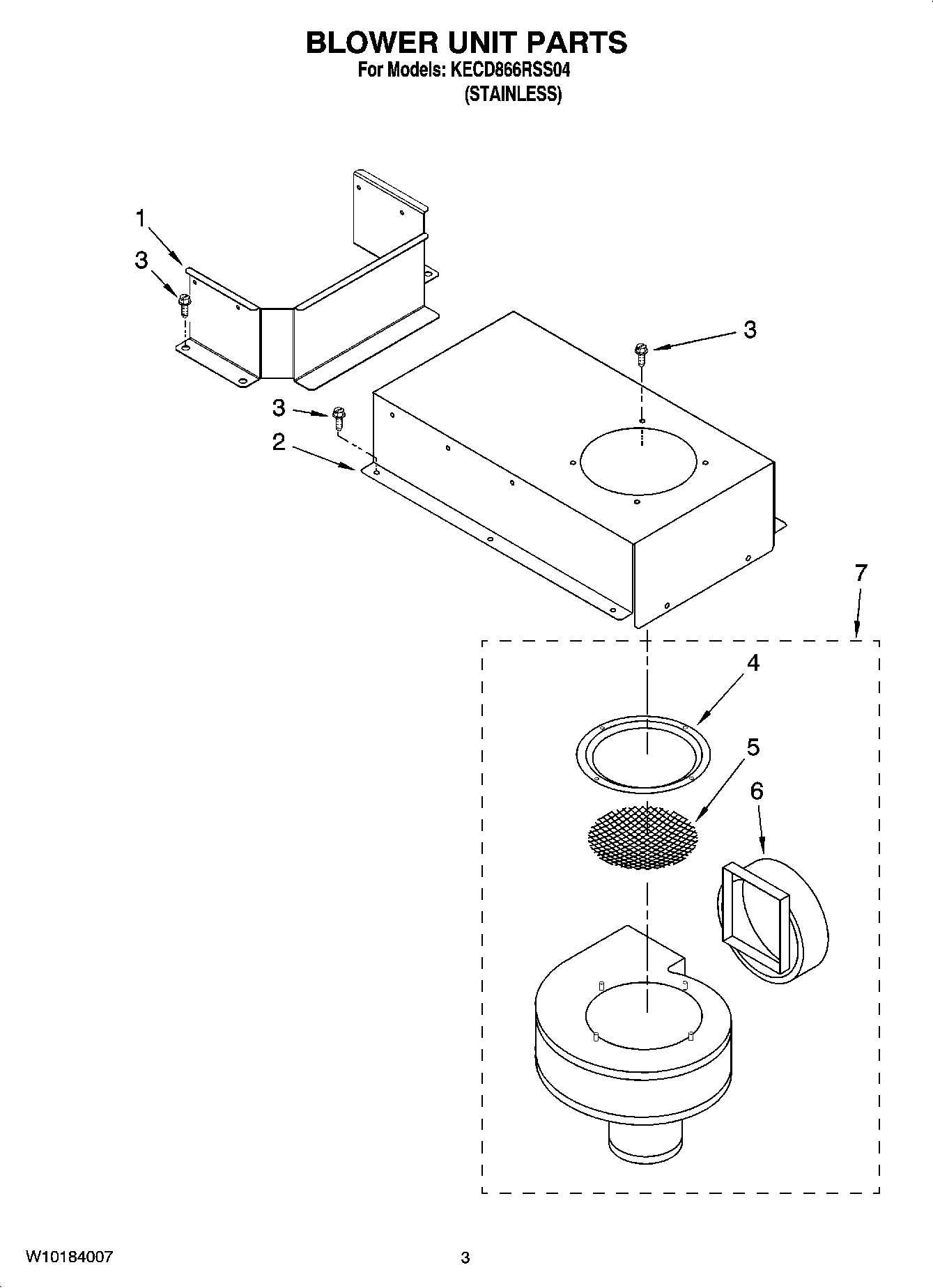

1Bracket, Shield
2Bracket, Blower Mounting
3WP3196557 Whirlpool Screw
4Ring, Inlet
5Screen, Inlet
6Adapter, Vent
7WPW10109930 Whirlpool Blower Assembly
