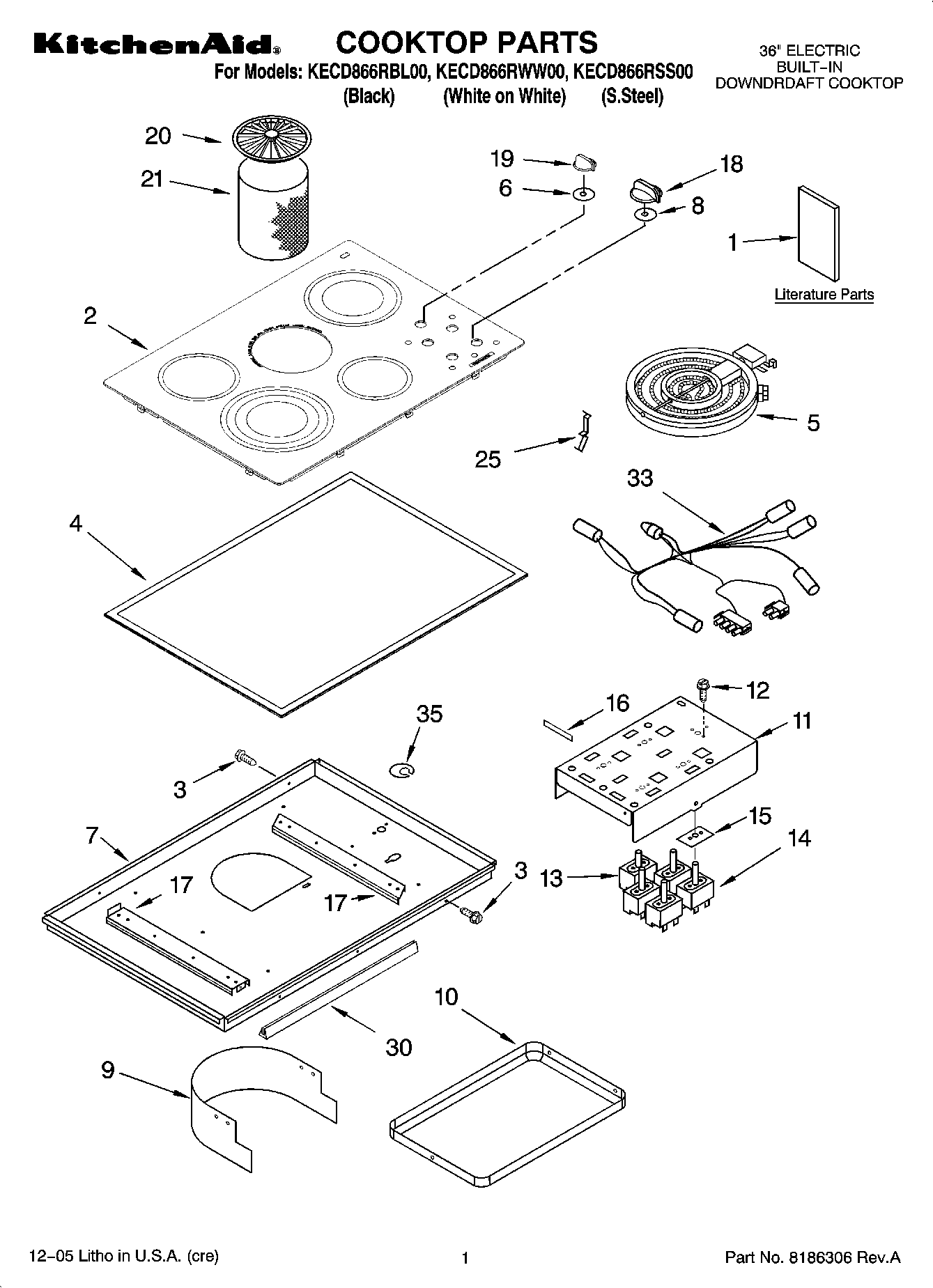

KECD866RWW00 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide
1Wiring Diagram
1Safe Cooking Tips (French)
1Safe Cooking Tips
2Foam, Seal
2W10141009 Whirlpool Cooktop
2Cooktop, Glass & Bracket Assembly (White)
3WP3196557 Whirlpool Screw
4Frame, Cooktop (S.Steel Only)
5Element, Surface (RR 1000/2000W)
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823699 Whirlpool Right Front Surface Element
5Element, Surface (2500/1800/900W LF)
6WP3188425 Whirlpool Seal Switch
7Box, Burner
83183956 Whirlpool Oven Seal Switch
9Shield, Vent
9WP3177991 Whirlpool Screw
10Drip Bowl, Grease
11Bracket, Control Mounting
12WP486579 Whirlpool Air Conditioner Screw
13WP4456836 Whirlpool Speed Switch
14WP3191049 Infinite Switch Left Rear Right Front
14WP4456027 Whirlpool Infinite Switch Right Rear
14WP8286070 Whirlpool Infinite Switch Left Front
158285469 Whirlpool Oven Seal Switch
16W10491984 Whirlpool Switch Seal
17Rail, Element (Left Hand)
17Rail, Element (Right Hand)
18Knob, Control (4) (Cashmere Metal)
18WP8286096BL Whirlpool Knob
188286096WH Whirlpool Knob
19Knob, Blower Switch (Cashmere Metalic)
19WP8286097BL Whirlpool Knob
19Knob, Blower Switch (White)
20Grille, Air (Cashmere Metalic)
20Grille, Air (White)
20Grille, Air (Black)
21Filter, Grease
259759094 Whirlpool Spring
25WP486754 Whirlpool Compactor Screw
30Gasket, Vent Shield
33Lamp, Hot Surface Indicator
35WPL 3193094
