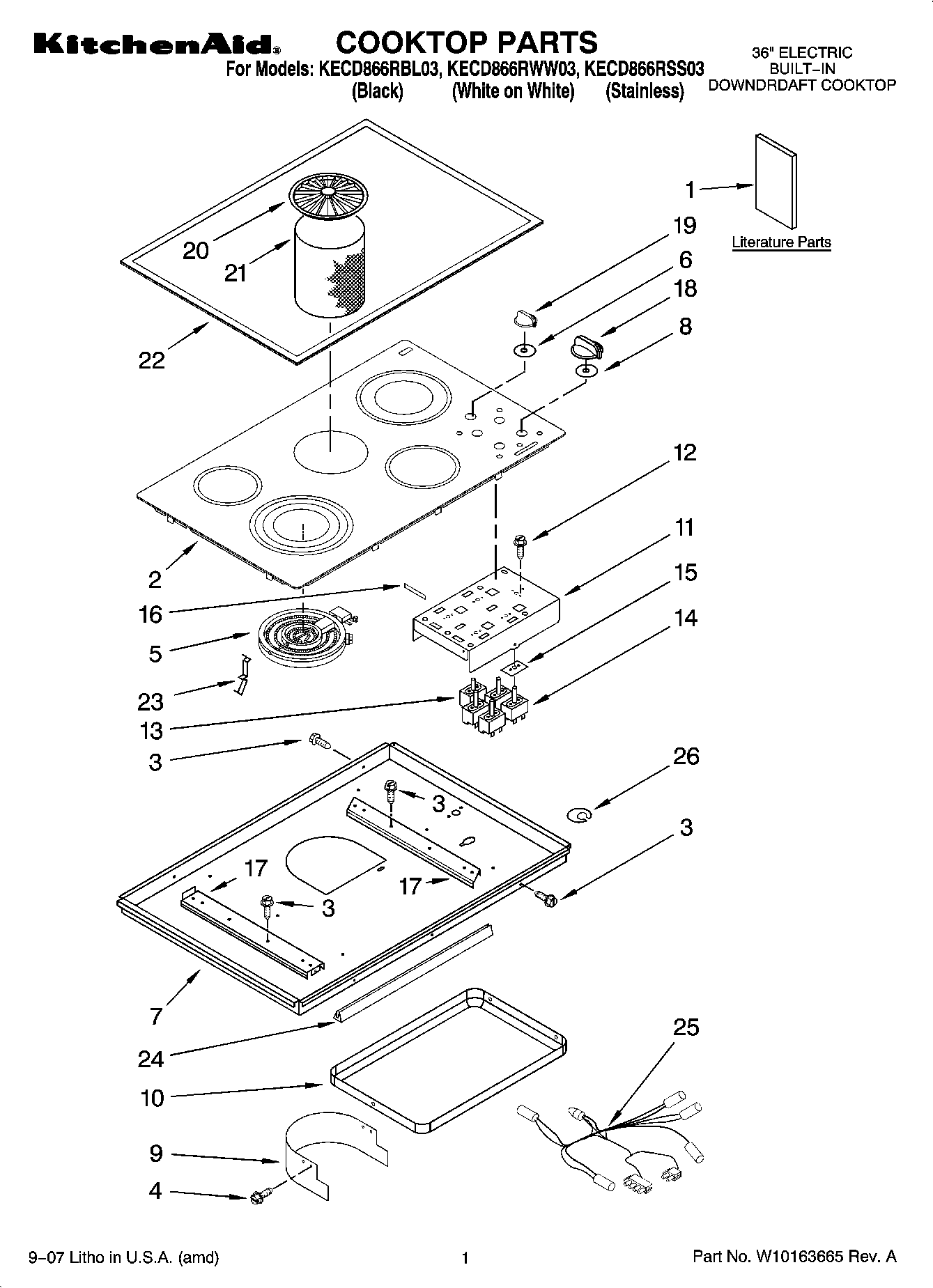

KECD866RWW03 01 – COOKTOP PARTS

KECD866RWW03 01 – COOKTOP PARTS

Written by

in

KECD866RWW03 01 – COOKTOP PARTS

Products

PositionProduct
1Safe Cooking Tips
1Installation Instructions
1Use & Care Guide
1Wiring Diagram
1Safe Cooking Tips (French)
2W10141009 Whirlpool Cooktop
2Cooktop, Glass & Bracket Assembly (White)
3WP3196557 Whirlpool Screw
4WP3177991 Whirlpool Screw
5W10823699 Whirlpool Right Front Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5Element, Surface (RR 1000/2000W)
5Element, Surface (2500/1800/900W LF)
6WP3188425 Whirlpool Seal Switch
7Box, Burner
83183956 Whirlpool Oven Seal Switch
9Shield, Vent
10Drip Bowl, Grease
11Bracket, Control Mounting
12WP486579 Whirlpool Air Conditioner Screw
13WP4456836 Whirlpool Speed Switch
14WP4456027 Whirlpool Infinite Switch Right Rear
14WP3191049 Infinite Switch Left Rear Right Front
14WP8286070 Whirlpool Infinite Switch Left Front
158285469 Whirlpool Oven Seal Switch
15Seal, Switch (White)
16W10491984 Whirlpool Switch Seal
17Rail, Element (Left Hand)
17Rail, Element (Right Hand)
188286096WH Whirlpool Knob
18WP8286096BL Whirlpool Knob
18Knob, Control (4) (Cashmere Metal)
19Knob, Blower Switch (White)
19Knob, Blower Switch (Cashmere Metalic)
19WP8286097BL Whirlpool Knob
20Grille, Air (White)
20Grille, Air (Cashmere Metalic)
20Grille, Air (Black)
21Filter, Grease
22Frame, Cooktop (Stainless Only)
239759094 Whirlpool Spring
24Gasket, Vent Shield
25Lamp, Hot Surface Indicator
26WPL 3193094
