KECD866RWW04 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
WP3400015 Whirlpool Screw
WIRING HARNESS PARTS
4456859 Whirlpool Oven Wire Harness
Strain Relief
Conduit, Downdraft
Harness, Wire (Ceran Downdraft)
Following Parts Not Illustrated
Miscellaneous
SPLICING WIRES–25FT. LENGTH
ACCESSORY PARTS
WPL 4456028
Wire (14 Ga. 200 c Brown)
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Brown)
8528351 Whirlpool Clip
WP8286642 Whirlpool Tape
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)

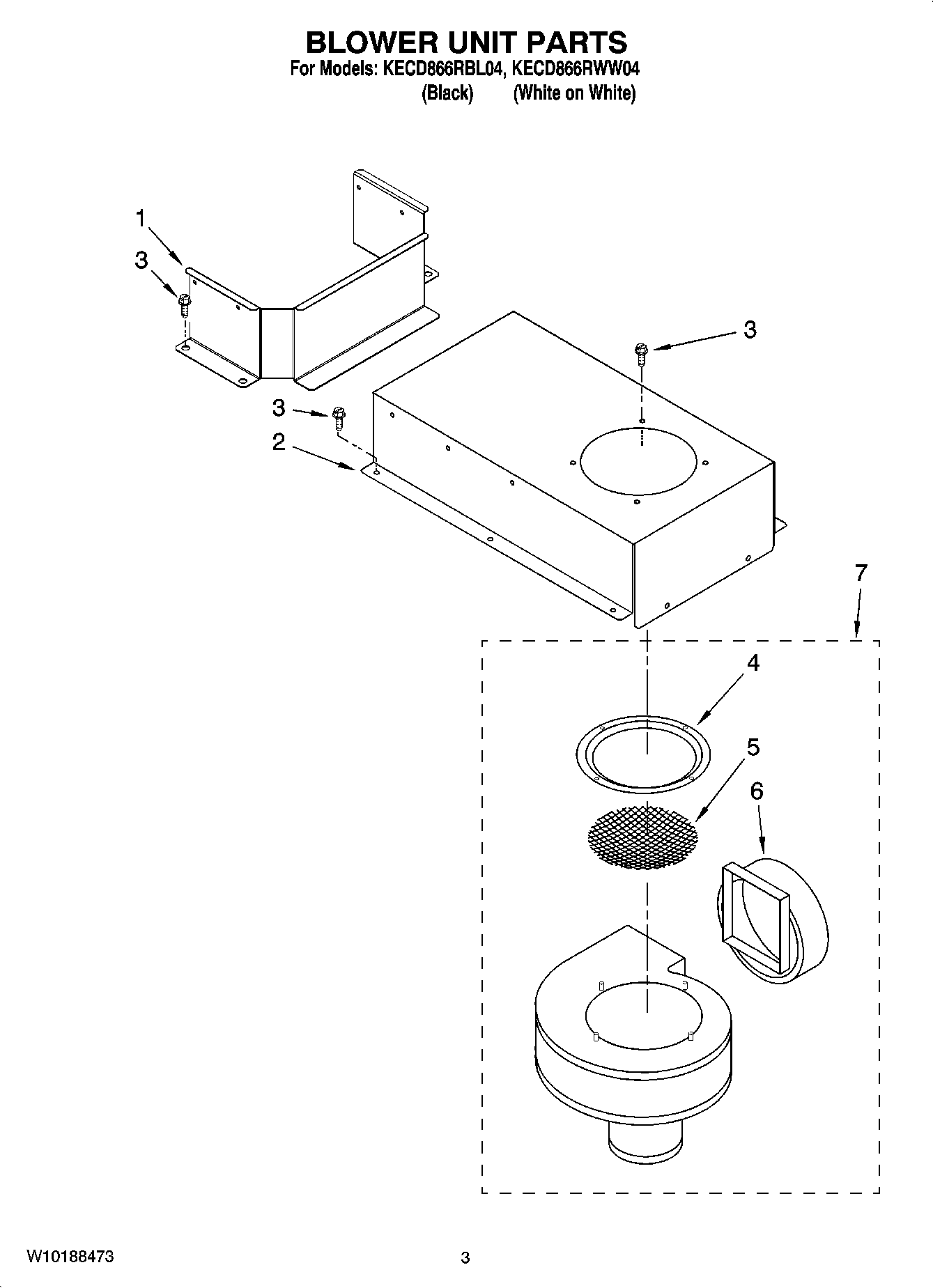

1Bracket, Shield
2Bracket, Blower Mounting
3WP3196557 Whirlpool Screw
4Ring, Inlet
5Screen, Inlet
6Adapter, Vent
7WPW10109930 Whirlpool Blower Assembly
