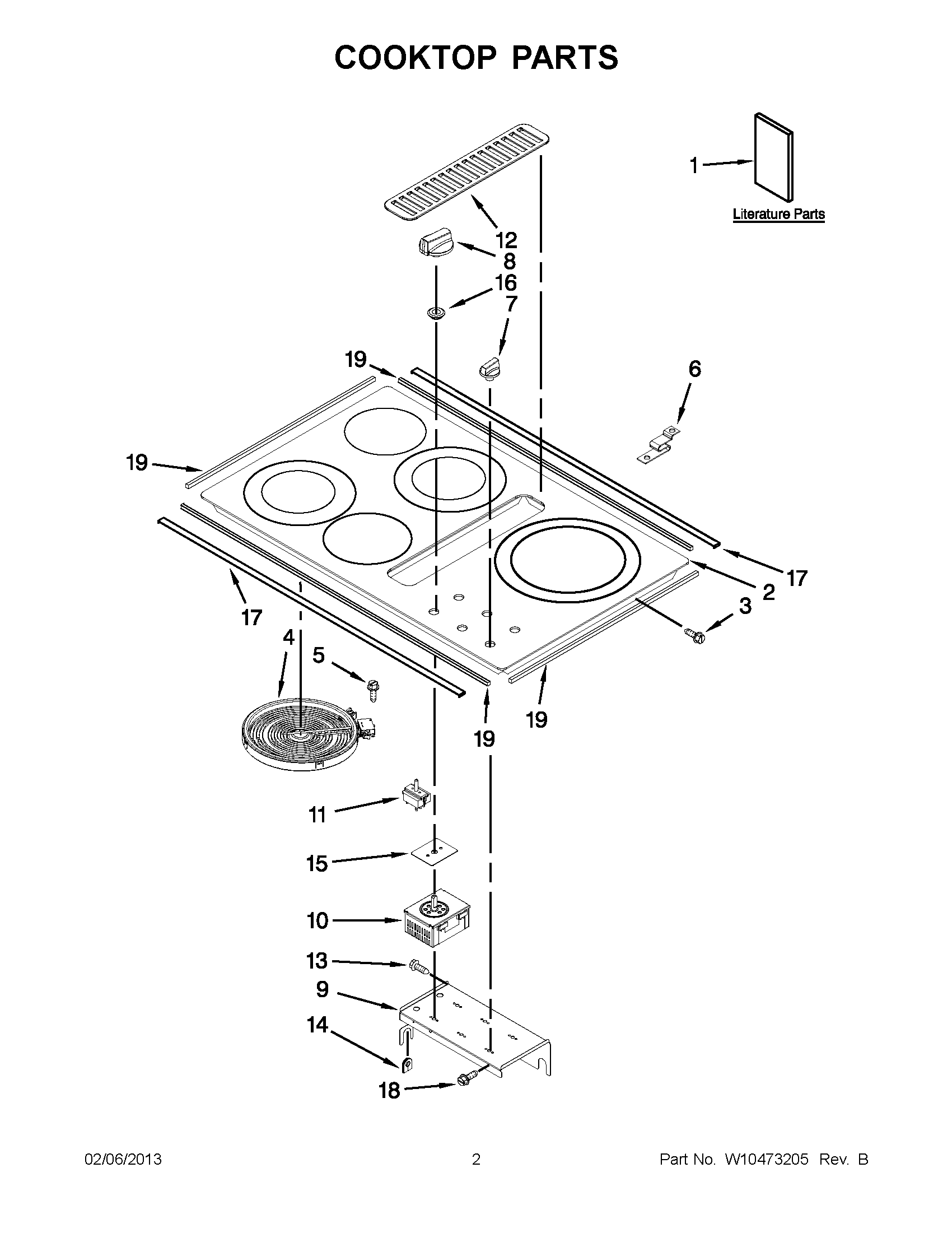

KECD867XBL01 01 – COOKTOP PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	TECH SHEET
1	CARD, FLOW TEST
1	USE & CARE GUIDE
2	TOP, MAIN
4	WPW10221529 Whirlpool Surface Element
4	ELEMENT, SURFACE (LR)
4	ELMNT-SURF
4	WPW10204680 Whirlpool Surface Element
5	SCREW
6	SUPPORT,ELEMENT
7	W10298840 Whirlpool Knob
8	WPW10298835 Whirlpool Knob
9	W10161712 Whirlpool Mounting Bracket
10	WPW10234425 Whirlpool Infinite Switch
10	WPW10215034 Whirlpool Infinite Switch
10	WPW10222828 Whirlpool Infinite Switch
10	SWITCH, INFINITE (RIGHT REAR)
11	WP4456836 Whirlpool Speed Switch
12	WPW10205094 Whirlpool Grille
13	SCREW
14	GROMMET, WIRE
15	GASKET, SWITCH
16	WPW10293874 Whirlpool Stove Cooktop Knob Grommet
17	TRIM STAINLESS ONLY (FRONT TRIM)
17	W10168884 Whirlpool Cooktop Trim
18	WPL 7101P30960
19	TAPE, FOAM
