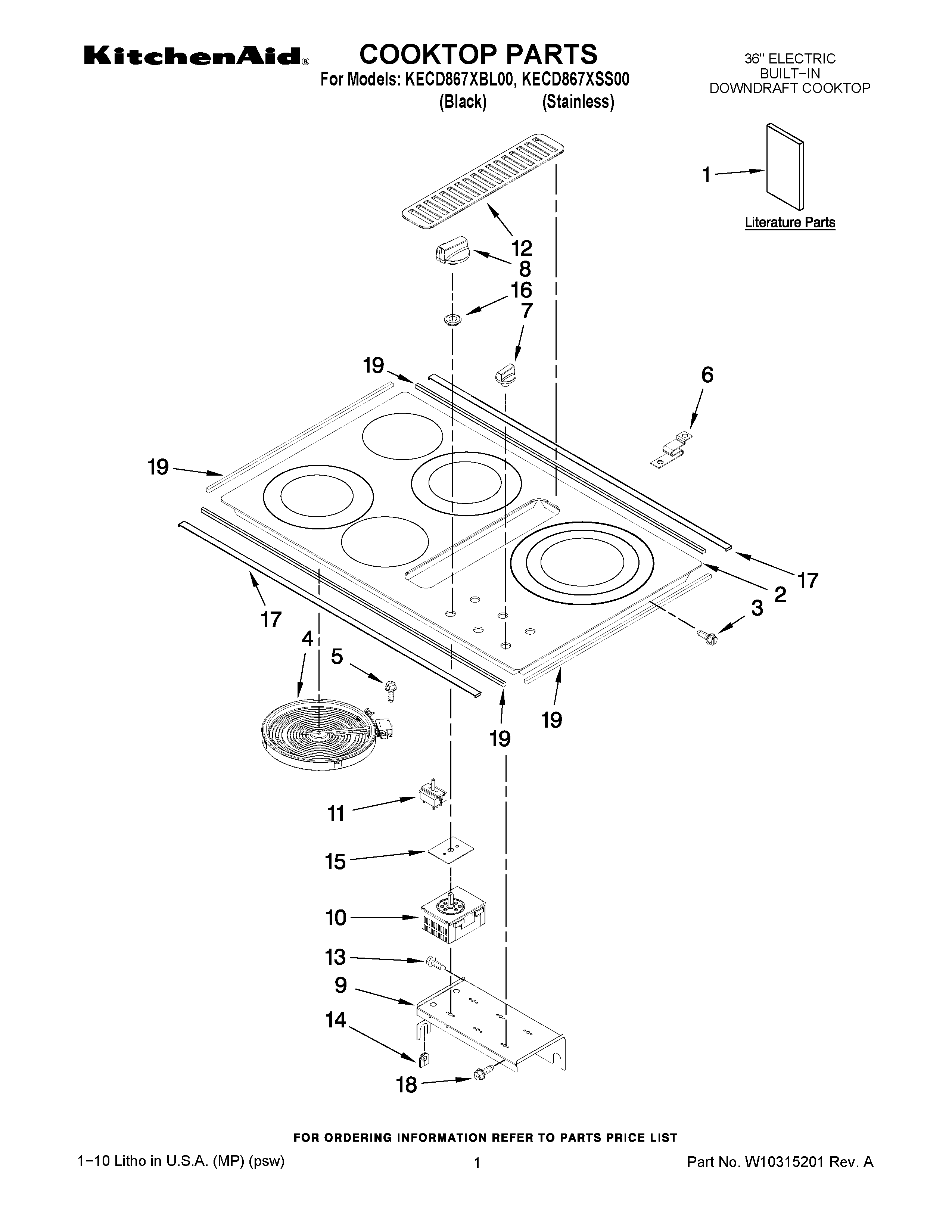

KECD867XSS00 01 – COOKTOP PARTS

KECD867XSS00 01 – COOKTOP PARTS

Written by

in

KECD867XSS00 01 – COOKTOP PARTS

Products

PositionProduct
1TECH SHEET
1CARD, FLOW TEST
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2TOP, MAIN
4WPW10204680 Whirlpool Surface Element
4ELEMENT, SURFACE (LR)
4ELMNT-SURF
4WPW10221529 Whirlpool Surface Element
5SCREW
6SUPPORT,ELEMENT
7W10298840 Whirlpool Knob
8WPW10298835 Whirlpool Knob
9W10161712 Whirlpool Mounting Bracket
10WPW10215034 Whirlpool Infinite Switch
10WPW10234425 Whirlpool Infinite Switch
10WPW10222828 Whirlpool Infinite Switch
10SWITCH, INFINITE (RIGHT REAR)
11WP4456836 Whirlpool Speed Switch
12WPW10205094 Whirlpool Grille
13SCREW
14GROMMET, WIRE
15GASKET, SWITCH
16GROMMET
17W10168884 Whirlpool Cooktop Trim
17TRIM STAINLESS ONLY (FRONT TRIM)
18WPL 7101P30960
19TAPE, FOAM
