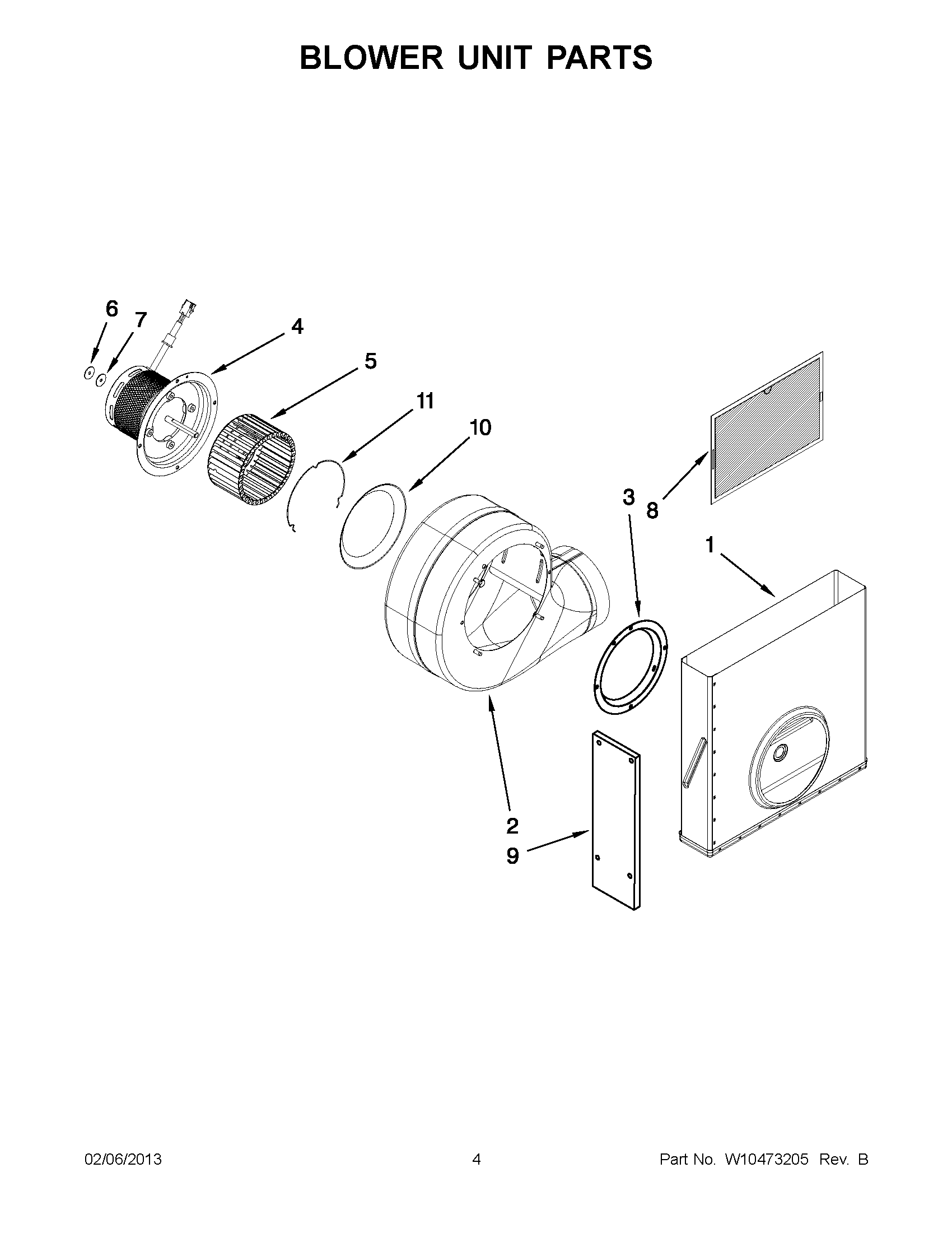

KECD867XSS01 02 – BLOWER UNIT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	HOUSING, BLOWER
3	RING, INLET
4	MOTOR, BLOWER
5	WHEEL, BLOWER
6	NUT, MTG.
7	WASHER
8	FILTER, GREASE
9	GUARD, BLOWER
10	SPRING, RETAINER
11	RING, RESTRICTOR
