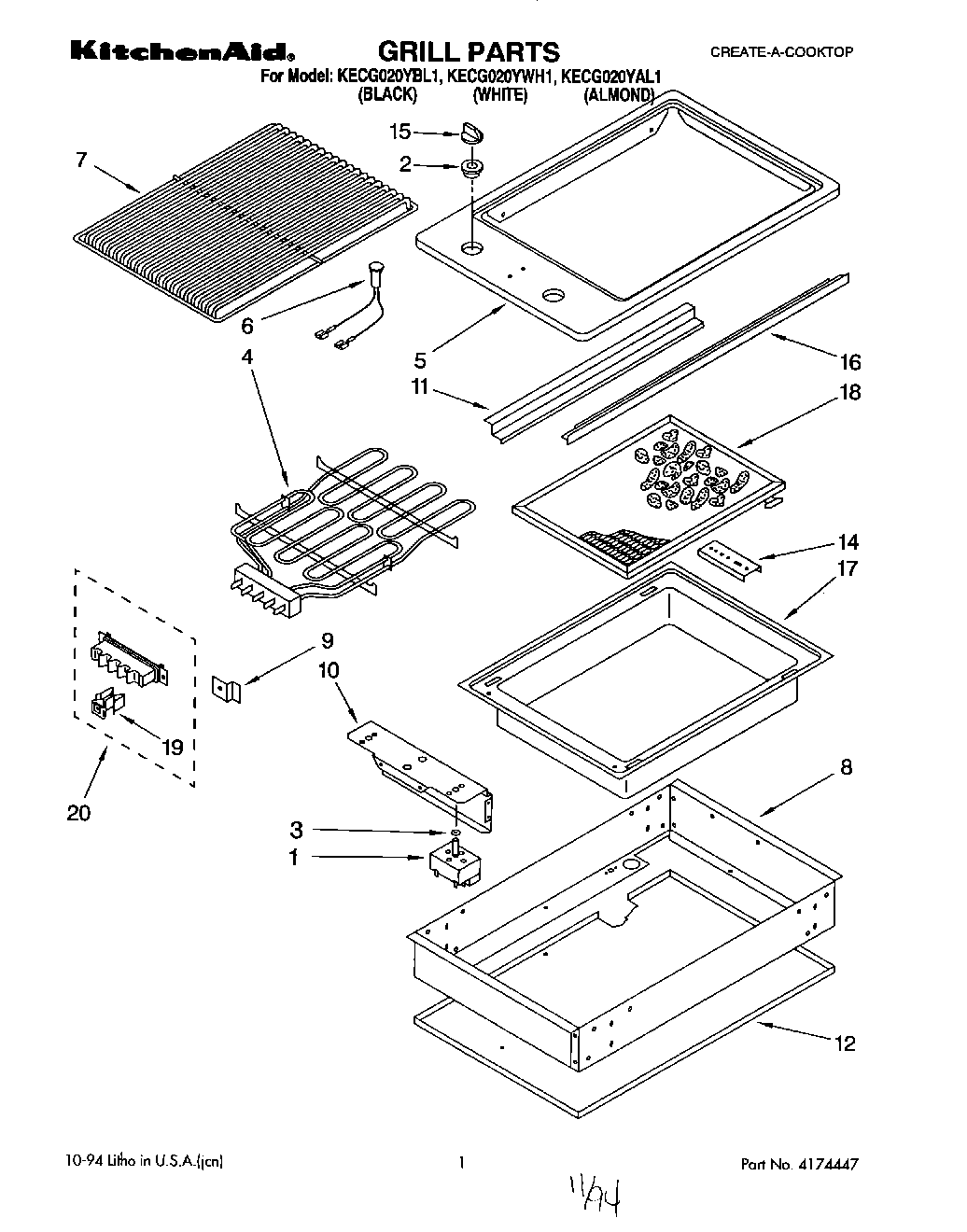

KECG020YAL1 01 – SECTION

Products

Position	Product
	Tape, Foam (67“)
	Hardware Assembly
	Installation Instructions
	Use & Care Guide
1	Switch, Inifinite (2)
2	Seal, Inifinite Switch
3	Seal, Switch Shaft (2)
4	Element, Grill (240 Volt)
4	Element, Grill (204 Volt (opt.))
5	Top, Burner Box (Almond)
5	Top, Burner Box (White)
5	Top, Burner Box (Black)
6	Light, Indicator (2)
7	Grate, Grill (Stainless Steel)
7	Grate, Grill (Black)
8	Side, Burner Box (2)
9	Bracket, Terminal Block (2)
10	Bracket, Control Panel
11	Bracket, Wireway
12	WPL 312318
12	Bottom, Burner Box
12	Screw,
14	8186533 Whirlpool Hardware
14	Screw
14	Nut, Tinnerman (2)
14	WP488729 Whirlpool Refrigerator Door Screw
15	Knob, Cooktop (Black)
15	Knob, Cooktop (White)
15	Knob, Cooktop (Almond)
16	Trim, Extrusion (Black)
16	Trim, Extrusion (Almond)
16	Trim, Extrusion (White)
17	Pan, Grill
18	Screen Basket Assy. (Lava Rocks Included)
19	Clip, Terminal Block (5)
19	303776 Whirlpool Dishwasher Screw
20	Block, Terminal
