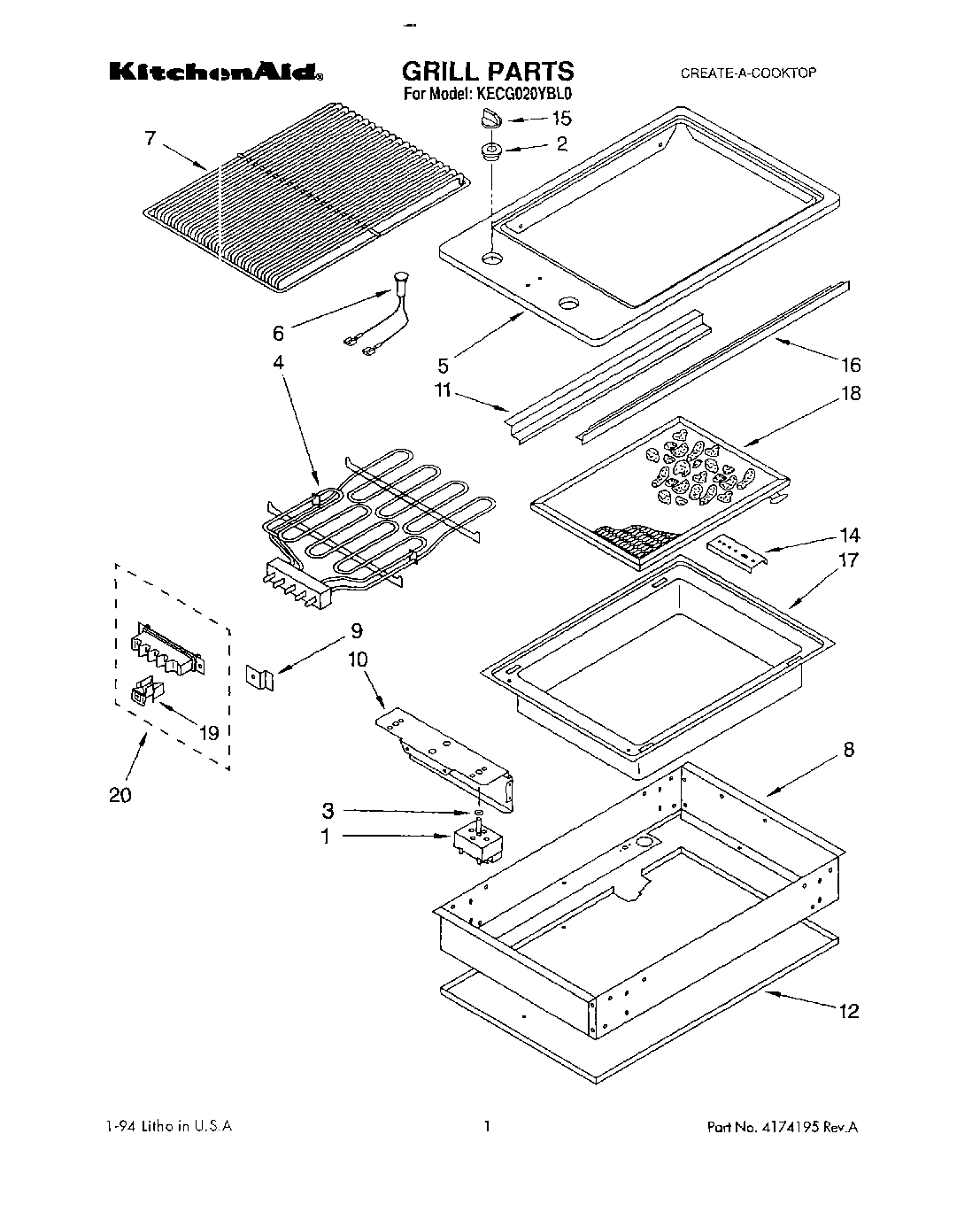

KECG020YWH0 01 – SECTION

Products

Position	Product
	Installation Instructions
	Repair Parts List
	Tape, Foam (67“)
	Use & Care Guide
1	Switch, Inifinite (2)
2	Seal, Inifinite Switch
3	Seal, Switch Shaft (2)
4	Element, Grill (240 Volt)
4	Element, Grill (204 Volt (opt.))
5	Top, Burner Box (Black)
5	Top, Burner Box (Almond)
5	Top, Burner Box (White)
6	Light, Indicator (2)
7	Grate, Grill (Stainless Steel)
7	Grate, Grill (Black)
8	Side, Burner Box (2)
9	Bracket, Terminal Block (2)
10	Bracket, Control Panel
11	Bracket, Wireway
12	Bottom, Burner Box
12	Screw,
12	WPL 312318
14	8186533 Whirlpool Hardware
14	Screw
14	Nut, Tinnerman (2)
14	Screw
14	Screw, 8-32 X 1 1/2
15	Knob, Cooktop (Black)
15	Knob, Cooktop (White)
15	Knob, Cooktop (Almond)
16	Trim, Extrusion (Almond)
16	Trim, Extrusion (White)
16	Trim, Extrusion (Black)
17	Pan, Grill
18	Screen Basket Assy. (Lava Rocks Included)
19	Clip, Terminal Block (5)
19	303776 Whirlpool Dishwasher Screw
20	Block, Terminal
