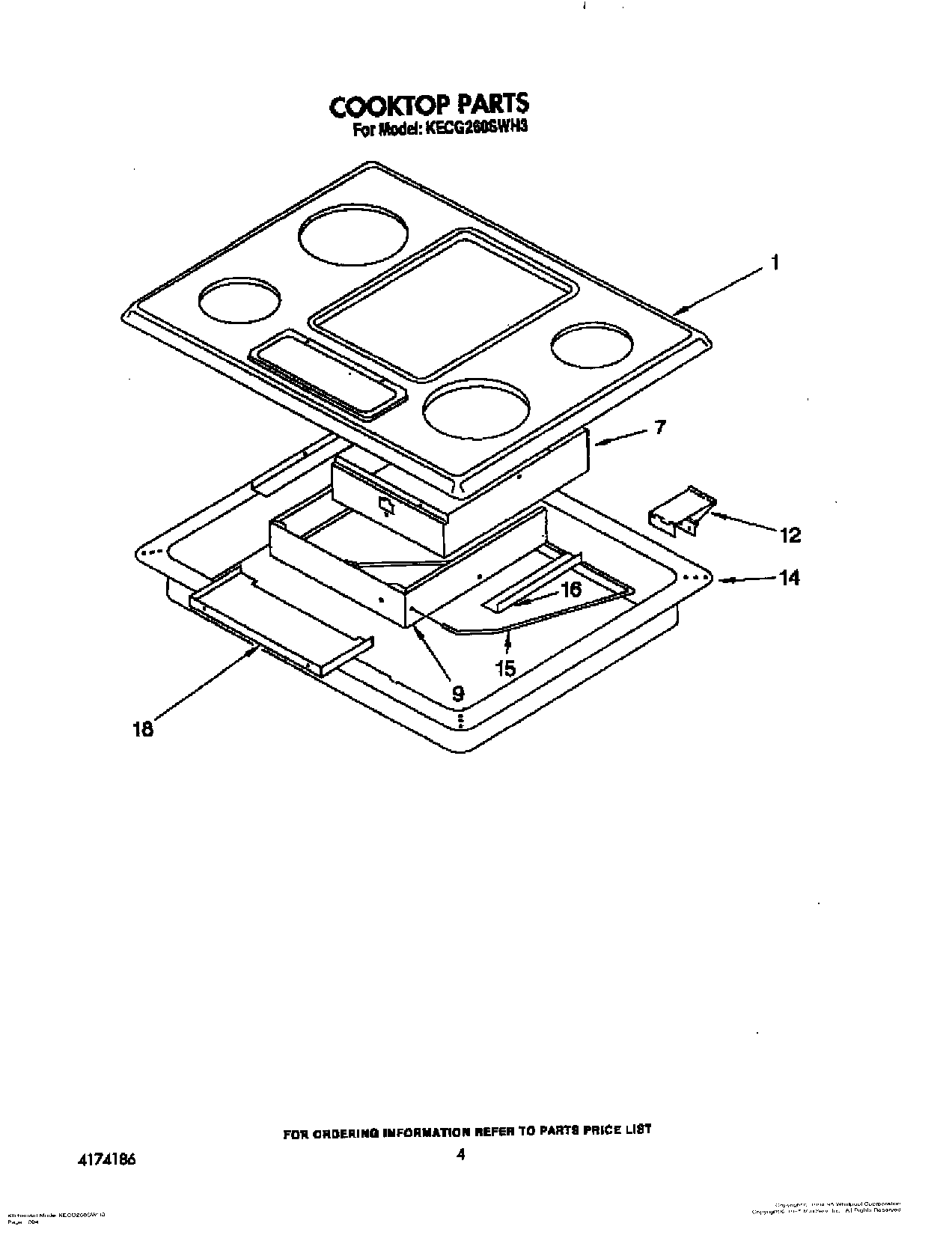

| 1 | Cooktop (Brushed Chrome) |
| 1 | Cooktop (White) |
| 1 | Cooktop (Almond) |
| 1 | Cooktop (Onyx Black) |
| 7 | Pan, Heat Shield |
| 9 | Frame, Outer Substructure |
| 9 | Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB |
| 12 | Hinge (2) |
| 12 | Screw, Self- Tapping 8-18 X 5/16 Phil. Pan Hd. |
| 14 | Box, Burner |
| 15 | Rod, Top Support |
| 16 | Screw, |
| 16 | Cover, Control (Right) |
| 18 | Cover, Control (Front) |
| 21 | Cover, Control (Left) |
| 21 | screw (4) |
