| Installation Instructions |
| Use & Care Guide |
| Mounting Hardware |

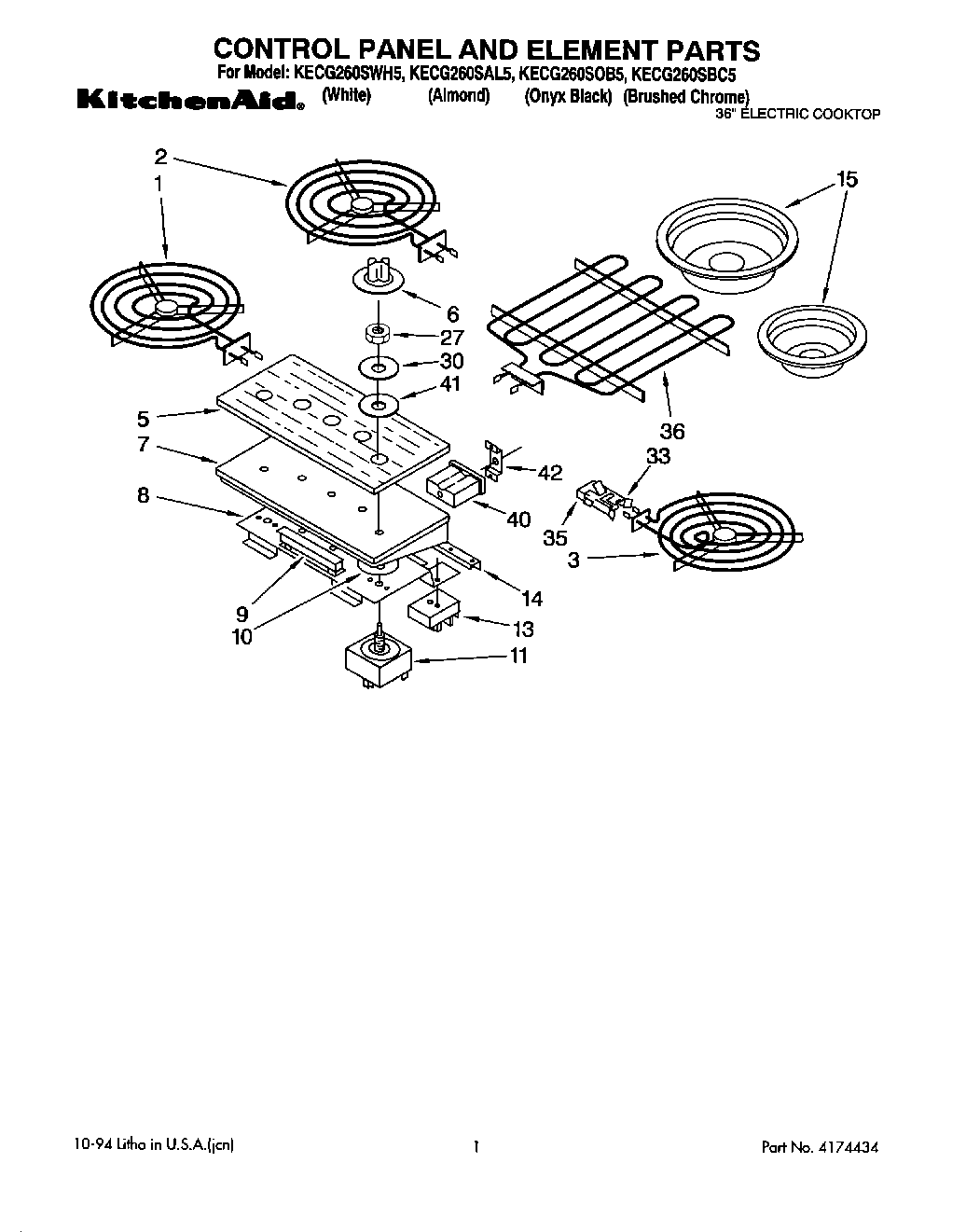

| 1 | WP3177565 Whirlpool Surface Element |
| 2 | 326789 Whirlpool Surface Element 8 Inch |
| 3 | WP3191455 Whirlpool Surface Element |
| 5 | Glass, Control Panel |
| 6 | Knob, Control (4) |
| 7 | Frame, Glass Mounting |
| 8 | Bracket, Switch Mounting |
| 9 | Indicator Light Assembly |
| 11 | Switch, Infinite (Grill) |
| 11 | Switch, Infinite (8`` (2)) |
| 11 | Switch, Infinite (6`` (2)) |
| 13 | Block, Terminal |
| 13 | Screw, Self Tapping (10-16 X 7/8) Phil. Pan Hd. |
| 14 | screw (4) |
| 14 | Conduit, Extra Flexible |
| 15 | DRIP BOWL 8" W/HOLE CHROME |
| 15 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 27 | Nut, Hex Jam (4) |
| 30 | Washer (4) |
| 33 | Clip, Receptacle (4) |
| 33 | Screw |
| 35 | BURNER RECEPTACLE KIT |
| 36 | Element, Grill |
| 36 | Lockwasher, 8 Int. Shake- proof |
| 36 | Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB |
| 40 | Receptacle, Grill Element |
| 41 | WP3188425 Whirlpool Seal Switch |
| 42 | Clip, Mou |
