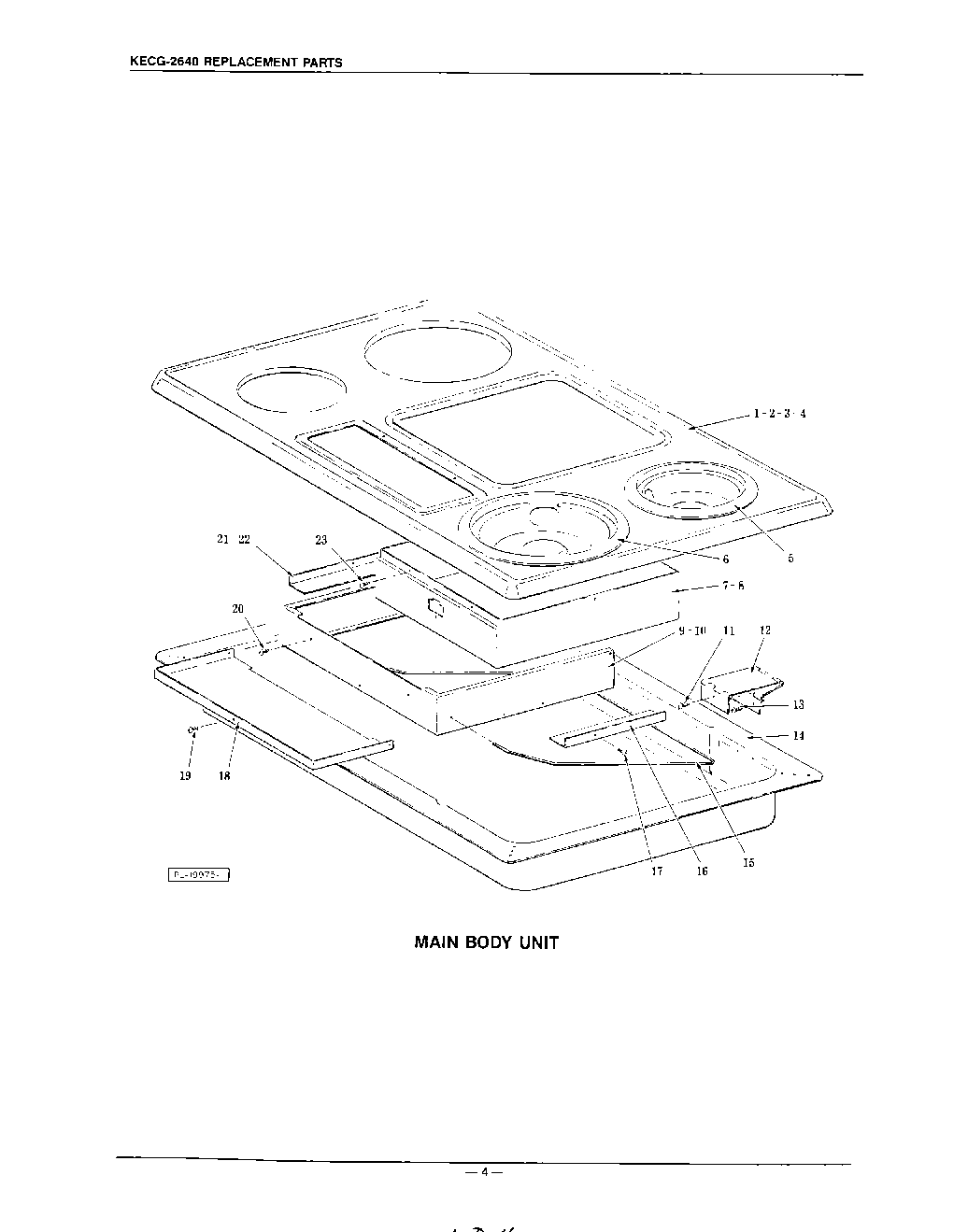

KECG260SBC0 03 – SECTION

Products

Position	Product
1	Cook Top (Brush Chrome)
2	Cook Top (White)
3	Cook Top (Almond)
4	Cook Top (Onyx Black)
5	Bowl – Burner (6“)
6	Bowl – Burner (8“)
7	Pan – Heat Shield
9	Frame – Outer Substructure
10	Self-Tapping Screw 8-18 x 3/8 Phil. Truss Hd., Type AB
11	Mach. Screw 8-32 x 3/8 Phil. Pan Hd
12	Hinge – Multi-Leaf
14	Control Valve
15	Rod – Top Support
16	Cover – Control (Right)
18	Cover – Control (Front)
21	Cover – Control (Left)
23	Self-Tapping Screw – No.8-18 x 5/16“ Phil. Pan Undercut Hd., Type AB
