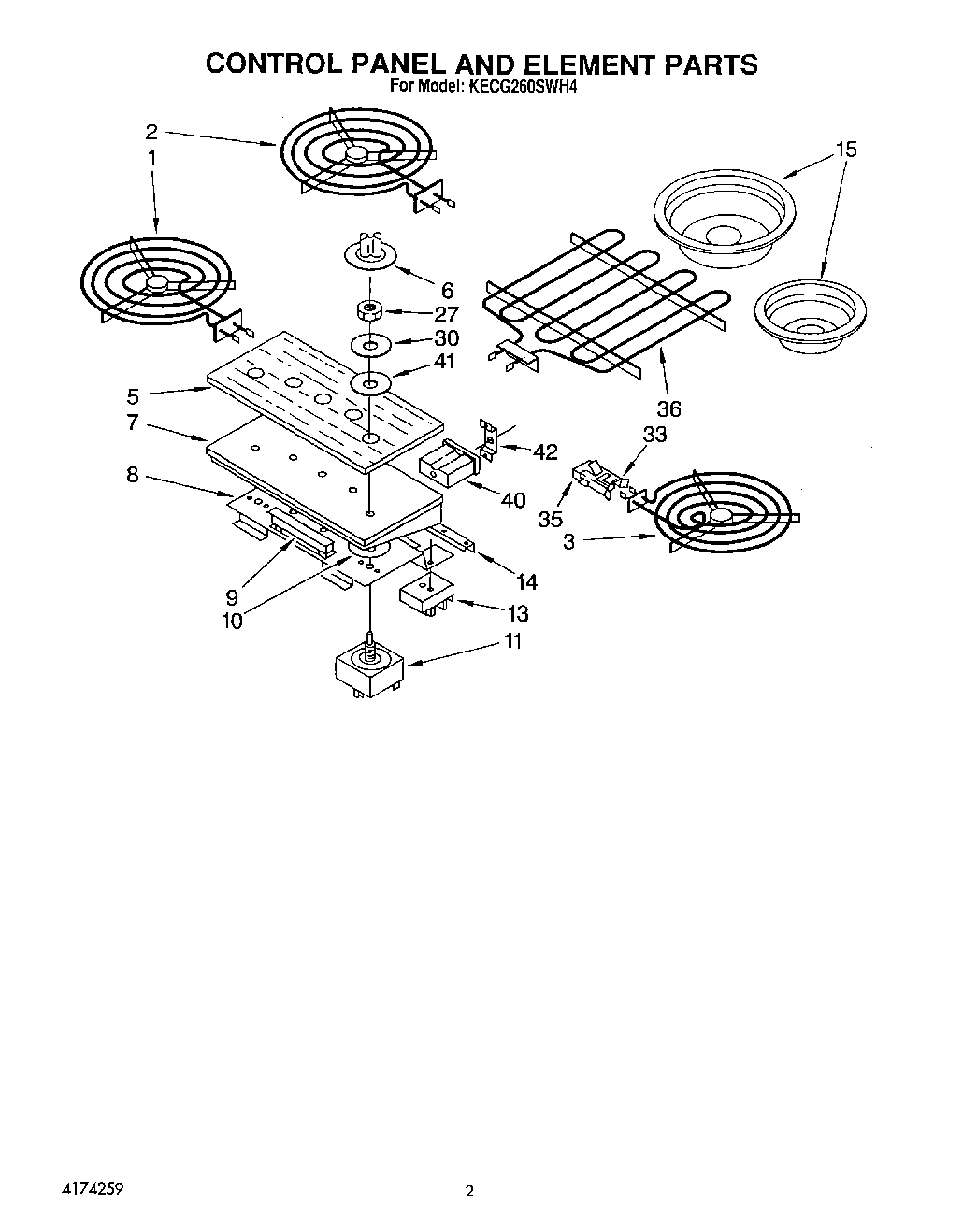

KECG260SBC4 02 – CONTROL PANEL AND ELEMENT, LITERATURE

Products

Position	Product
	Installation Instructions
	Repair Parts List
	WPL LIT4177642
	Mounting Hardware
1	WP3177565 Whirlpool Surface Element
2	326789 Whirlpool Surface Element 8 Inch
3	WP3191455 Whirlpool Surface Element
5	Glass, Control Panel
6	Knob, Control (4)
7	Frame, Glass Mounting
8	Bracket, Switch Mounting
9	Indicator Light Assembly
11	Switch, Infinite (Grill)
11	Switch, Infinite (6`` (2))
11	Switch, Infinite (8`` (2))
13	Block, Terminal
13	Screw, Self Tapping (10-16 X 7/8) Phil. Pan Hd.
14	Conduit, Extra Flexible
14	screw (4)
15	DRIP BOWL 8" W/HOLE CHROME
15	WPW10196406 Whirlpool 6" Chrome Drip Bowl
27	Nut, Hex Jam (4)
30	Washer (4)
33	Clip, Receptacle (4)
33	Screw
35	BURNER RECEPTACLE KIT
36	Element, Grill
36	Lockwasher, 8 Int. Shake- proof
36	Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB
40	Receptacle, Grill Element
41	WP3188425 Whirlpool Seal Switch
42	Clip, Mou
