KECG260SBC5 03 – SECTION

Products

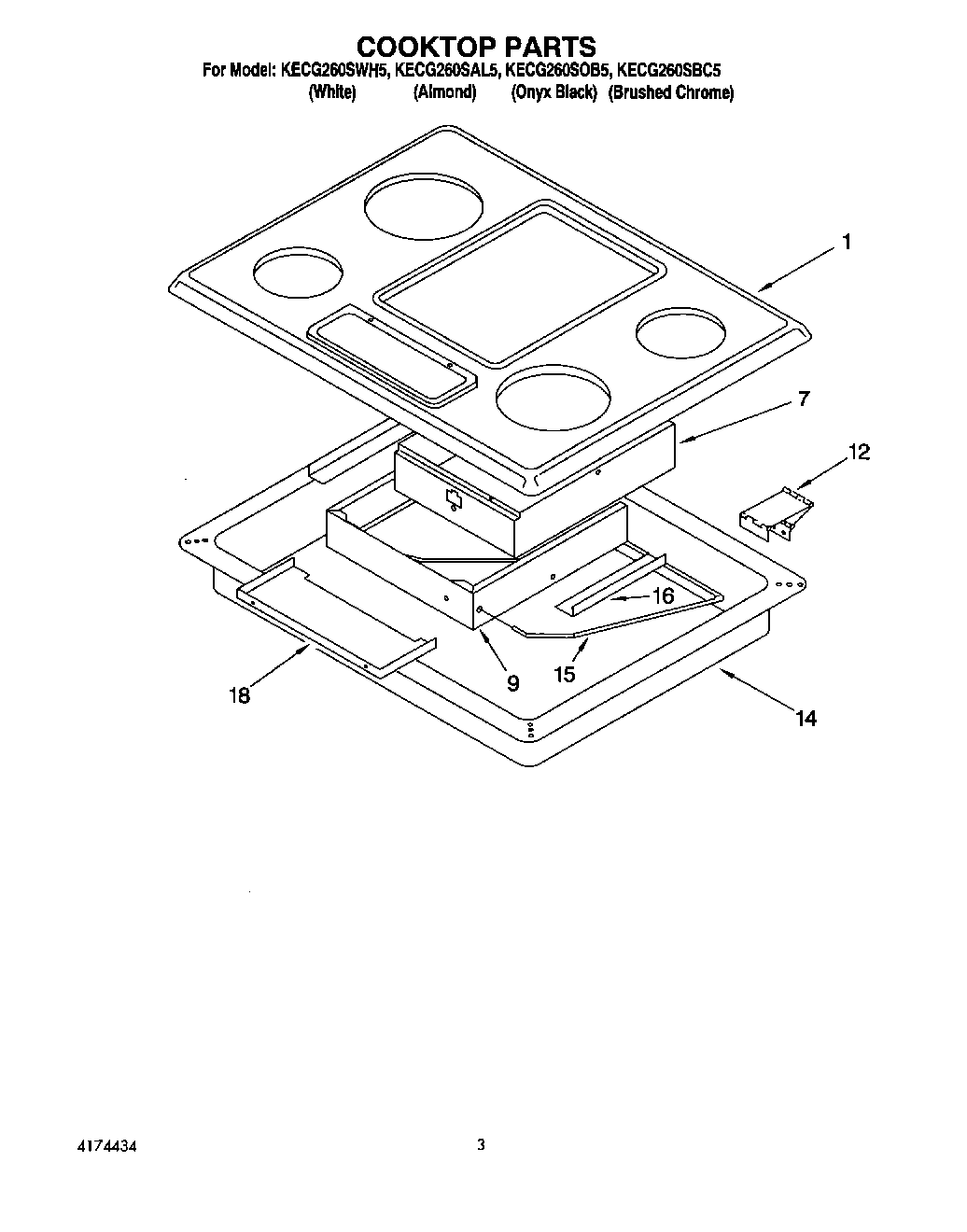

Position	Product
1	Cooktop (Onyx Black)
1	Cooktop (Almond)
1	Cooktop (White)
1	Cooktop (Brush Chrome)
7	Pan, Heat Shield
9	Frame, Outer Substructure
9	Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB
12	Hinge (2)
12	Screw, Self- Tapping 8-18 X 5/16 Phil. Pan Hd.
14	Box, Burner
15	Rod, Top Support
16	Cover, Control (Left)
16	Cover, Control (Right)
18	Screw,
18	Screw (5)
18	Cover, Control (Front)
