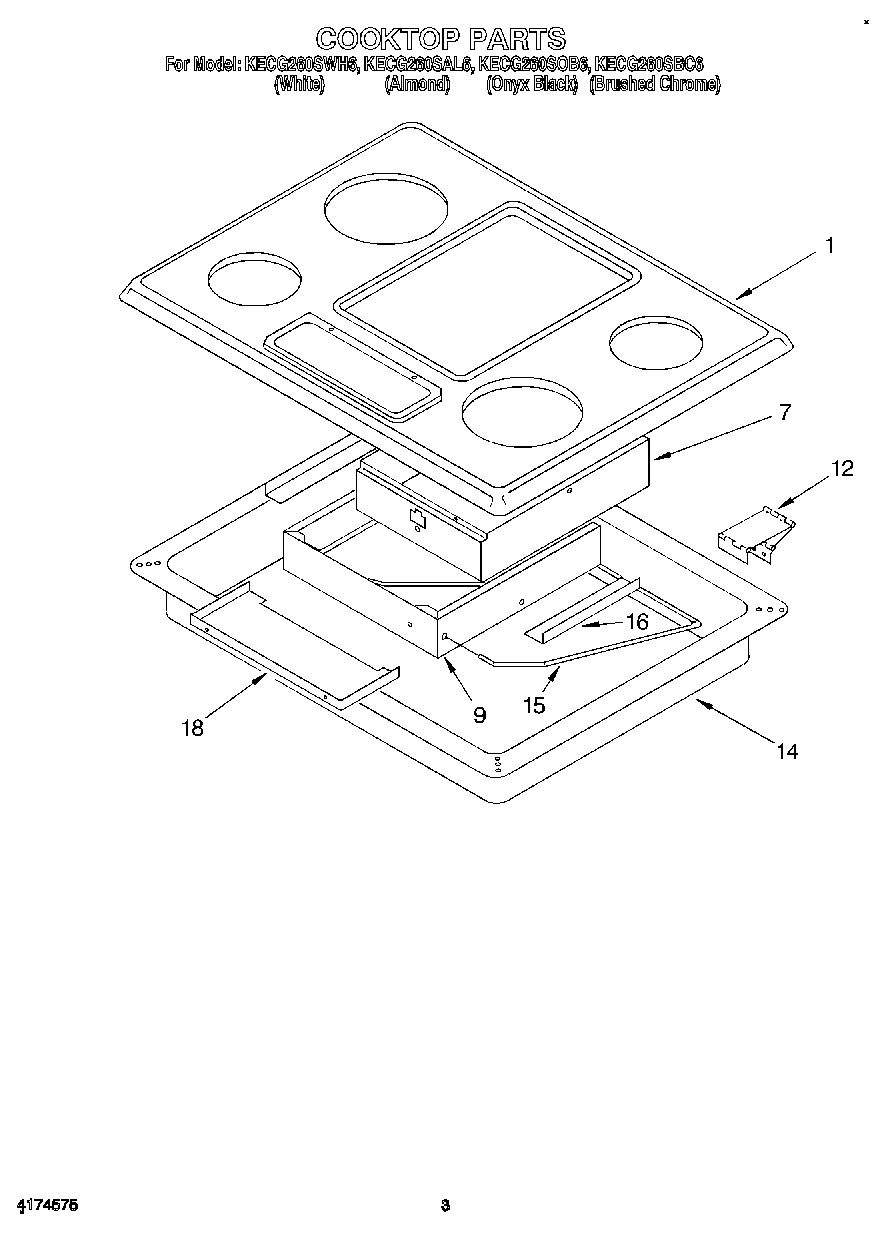

KECG260SBC6 03 – SECTION

Products

Position	Product
1	Cooktop (White)
1	Cooktop (Brush Chrome)
1	Cooktop (Almond)
1	Cooktop (Onyx Black)
7	Pan, Heat Shield
9	Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB
9	Frame, Outer Substructure
12	Screw, Self- Tapping 8-18 X 5/16 Phil. Pan Hd.
12	Hinge (2)
14	Box, Burner
15	Rod, Top Support
16	Cover, Control (Right)
16	Cover, Control (Left)
18	Cover, Control (Front)
18	Screw,
18	7111P002-60 Whirlpool Clamp
18	Screw (5)
18	Harness,
