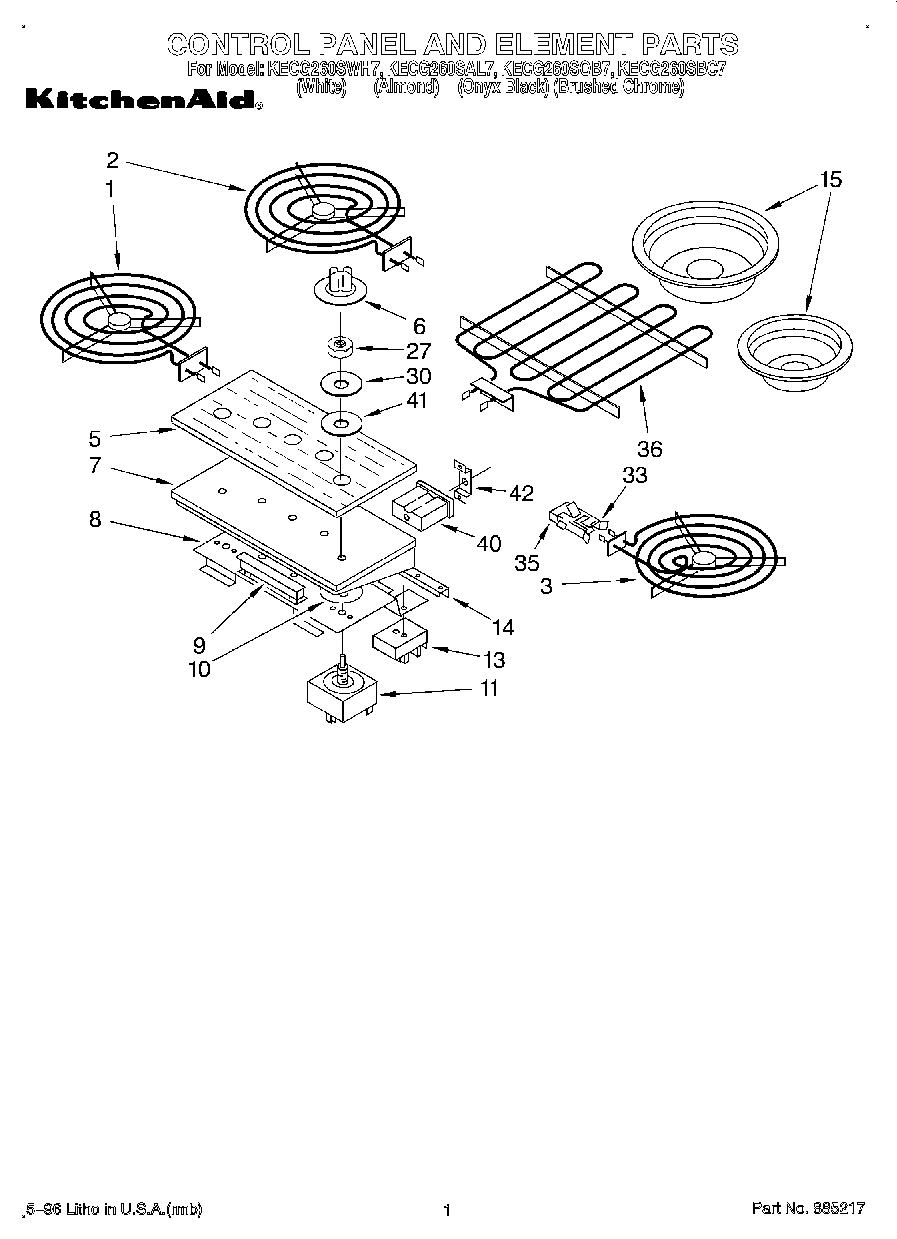

KECG260SBC7 01 – SECTION

Products

Position	Product
	Installation Instructions
	Use & Care Guide
	Mounting Hardware
1	WP3177565 Whirlpool Surface Element
2	326789 Whirlpool Surface Element 8 Inch
3	WP3191455 Whirlpool Surface Element
5	Glass, Control Panel
6	Knob, Control (4)
7	Frame, Glass Mounting
8	Bracket, Switch Mounting
9	Indicator Light Assembly
11	Switch, Infinite (Use W/1800W Grill)
11	Switch, Infinite (Use W/ Right Rear & Left Front Burner)
11	Switch, Infinite (Use W/ Right Front & Left Rear Burner)
13	Block, Terminal
13	Screw, Self Tapping (10-16 X 7/8) Phil. Pan Hd.
14	screw (4)
14	Conduit, Extra Flexible
15	WPW10196406 Whirlpool 6" Chrome Drip Bowl
15	DRIP BOWL 8" W/HOLE CHROME
27	Nut, Hex Jam (4)
30	Washer (4)
33	Screw
33	Clip, Mounting
35	BURNER RECEPTACLE KIT
36	Element, Grill
36	Lockwasher, 8 Int. Shake- proof
36	Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB
40	Receptacle, Grill Element
41	WP3188425 Whirlpool Seal Switch
42	Clip, Mou
