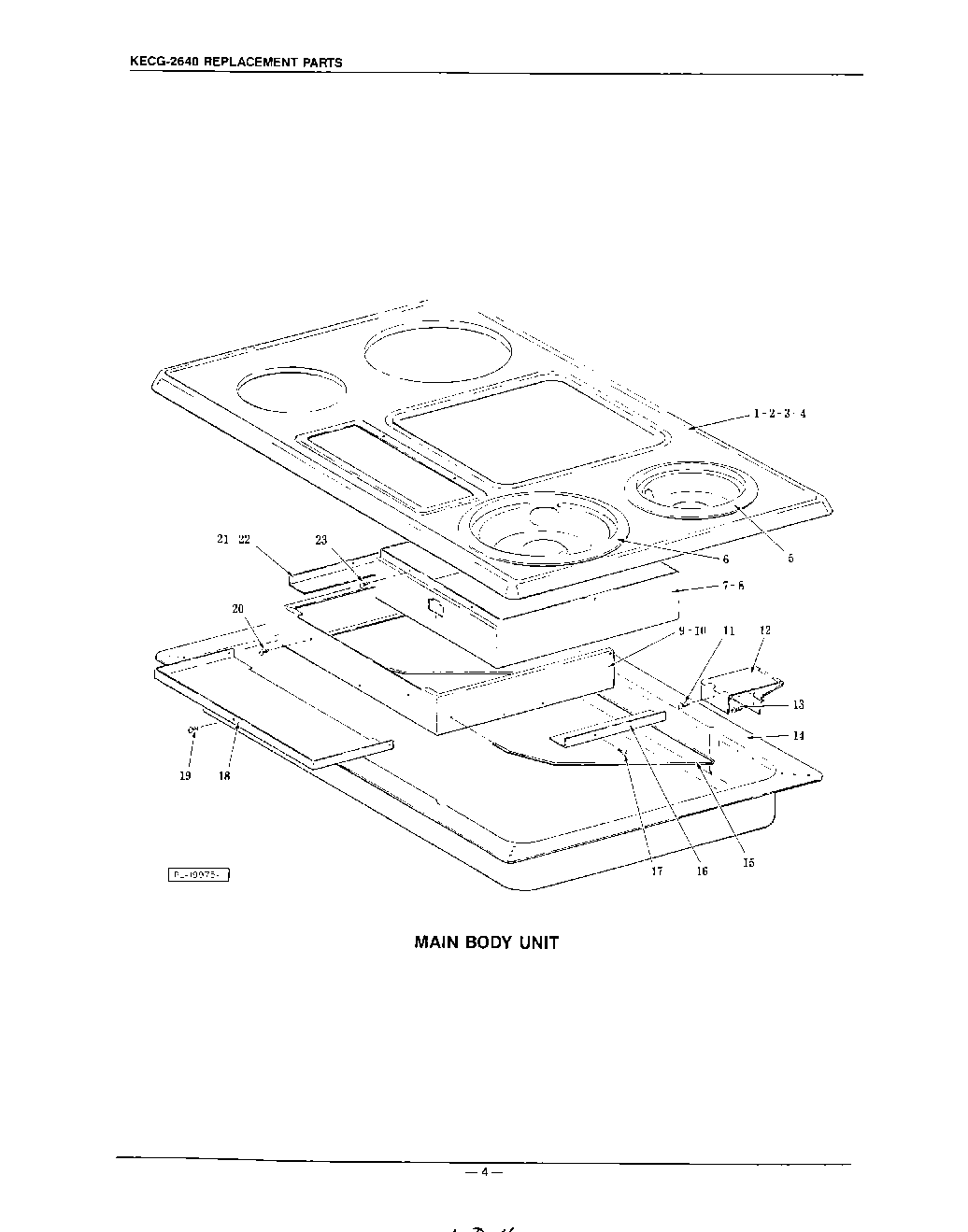

| 1 | Cook Top (Brush Chrome) |
| 2 | Cook Top (White) |
| 3 | Cook Top (Almond) |
| 4 | Cook Top (Onyx Black) |
| 5 | Bowl - Burner (6``) |
| 6 | Bowl - Burner (8``) |
| 7 | Pan - Heat Shield |
| 9 | Frame - Outer Substructure |
| 10 | Self-Tapping Screw 8-18 x 3/8 Phil. Truss Hd., Type AB |
| 11 | Mach. Screw 8-32 x 3/8 Phil. Pan Hd |
| 12 | Hinge - Multi-Leaf |
| 14 | Control Valve |
| 15 | Rod - Top Support |
| 16 | Cover - Control (Right) |
| 18 | Cover - Control (Front) |
| 21 | Cover - Control (Left) |
| 23 | Self-Tapping Screw - No.8-18 x 5/16`` Phil. Pan Undercut Hd., Type AB |
