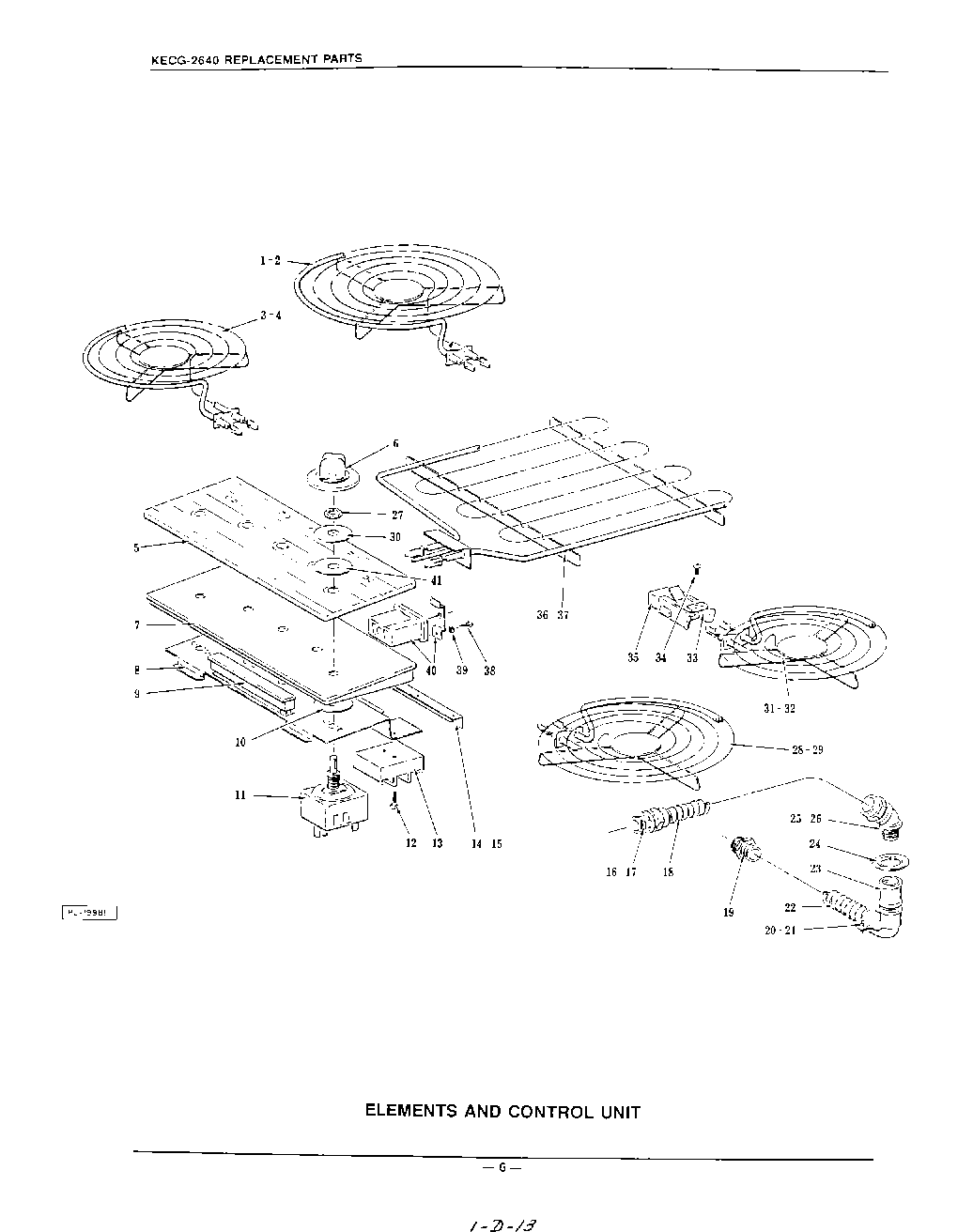

| 1 | Element 8`` (2100 W 240 V.) |
| 2 | Element 8`` (1820 W 208 V.) |
| 5 | Glass - Control Panel |
| 6 | Knob Control |
| 7 | Frame - Glass Mounting |
| 8 | Bracket - Switch Mounting |
| 9 | Indicator Light Assy |
| 11 | Switch - Infinite |
| 12 | Self-Tapping Screw 10-16 x 7/8 Phil. Pan Hd., Type AB |
| 13 | Terminal Block |
| 14 | Bracket - Support |
| 15 | Self-Tapping Screw - No.8-18 x 5/16`` Phil. Pan Undercut Hd., Type AB |
| 17 | Connector 1/2 Straight |
| 18 | Conduit - Extra Flexible |
| 19 | Connector 1/2 Straight (Flex. Cond.) |
| 20 | Elbow, 90o Fitting |
| 21 | Bushing - 1/2`` Anti-Short |
| 22 | Conduit, 1/2`` x 48`` |
| 23 | Coupling 1/2 Pipe |
| 24 | Washer - Reducing |
| 25 | Bushing - Conduit |
| 26 | Connector 3/8 x 45o |
| 27 | nut, infinite switch |
| 28 | Element 8`` (2600 W 240 V.) |
| 29 | Element 8`` (2250 W 208 V.) |
| 30 | Washer |
| 31 | Element 6`` (1250 W 240 V.) |
| 32 | Element 6`` (1080 W 208 V.) |
| 33 | Clip - Receptacle Mounting |
| 34 | Self-Tapping Screw 8-18 x 1/4 Phil. Bind Hd., Type AB |
| 35 | Receptacle - Element (6``/8``) |
| 36 | Element - Grill (1800 W 240 V.) |
| 37 | Element - Grill (1800 W 208 V.) |
| 38 | Self-Tapping Screw 8-18 x 3/8 Phil. Truss Hd., Type AB |
| 39 | Lock Washer 8 Int. Shakeproof |
| 40 | Recep |
| 41 | WPL CC8138 |
