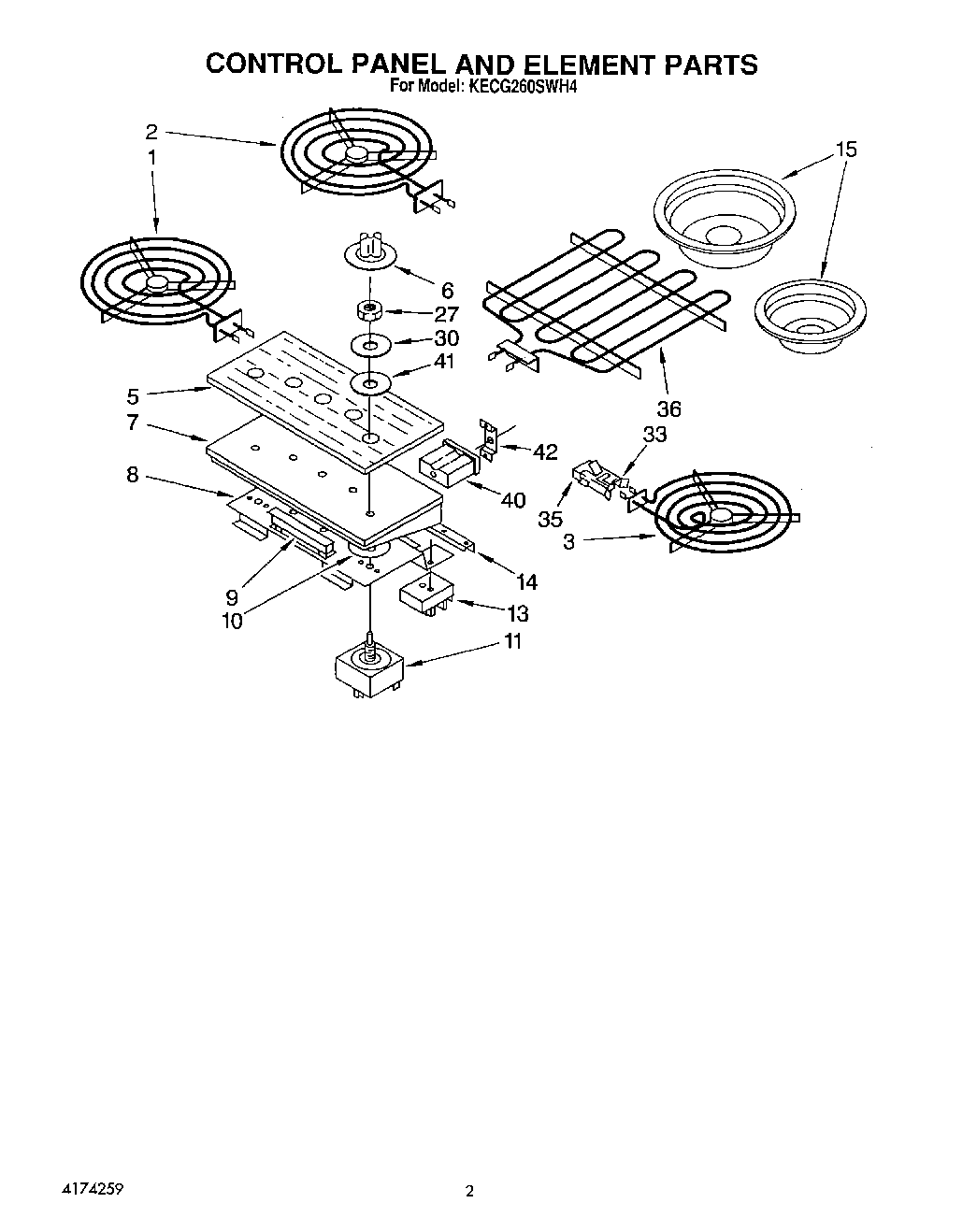

KECG260SOB4 02 – CONTROL PANEL AND ELEMENT, LITERATURE

Products

PositionProduct
Installation Instructions
Repair Parts List
WPL LIT4177642
Mounting Hardware
1WP3177565 Whirlpool Surface Element
2326789 Whirlpool Surface Element 8 Inch
3WP3191455 Whirlpool Surface Element
5Glass, Control Panel
6Knob, Control (4)
7Frame, Glass Mounting
8Bracket, Switch Mounting
9Indicator Light Assembly
11Switch, Infinite (Grill)
11Switch, Infinite (6“ (2))
11Switch, Infinite (8“ (2))
13Block, Terminal
13Screw, Self Tapping (10-16 X 7/8) Phil. Pan Hd.
14Conduit, Extra Flexible
14screw (4)
15DRIP BOWL 8" W/HOLE CHROME
15WPW10196406 Whirlpool 6" Chrome Drip Bowl
27Nut, Hex Jam (4)
30Washer (4)
33Clip, Receptacle (4)
33Screw
35BURNER RECEPTACLE KIT
36Element, Grill
36Lockwasher, 8 Int. Shake- proof
36Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB
40Receptacle, Grill Element
41WP3188425 Whirlpool Seal Switch
42Clip, Mou
