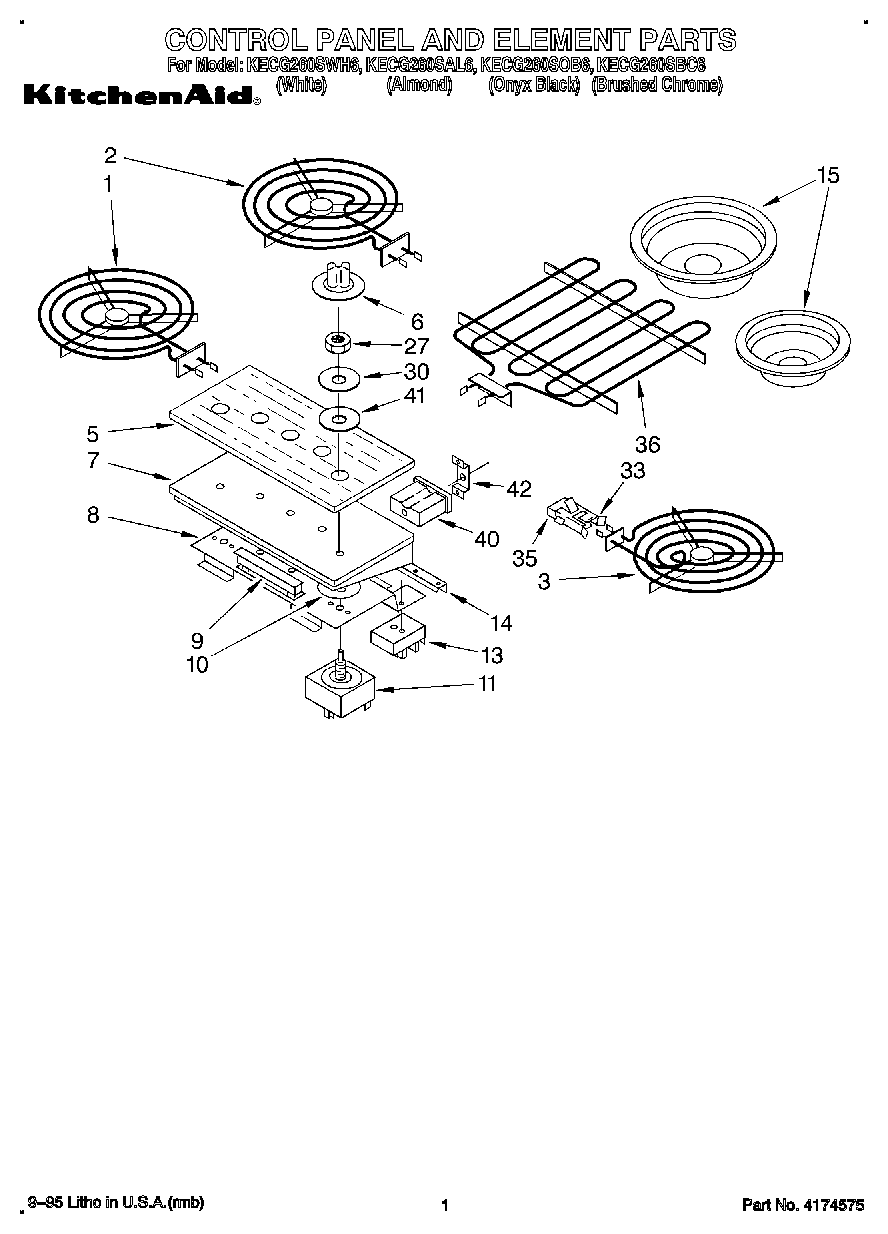

KECG260SOB6 01 – SECTION

Products

Position	Product
	Installation Instructions
	Use & Care Guide
	Mounting Hardware
1	WP3177565 Whirlpool Surface Element
2	326789 Whirlpool Surface Element 8 Inch
3	WP3191455 Whirlpool Surface Element
5	Glass, Control Panel
6	Knob, Control (4)
7	Frame, Glass Mounting
8	Bracket, Switch Mounting
9	Indicator Light Assembly
11	Switch, Infinite (Grill)
11	Switch, Infinite (8“ (2))
11	Switch, Infinite (6“ (2))
13	Block, Terminal
13	Screw, Self Tapping (10-16 X 7/8) Phil. Pan Hd.
14	screw (4)
14	Conduit, Extra Flexible
15	DRIP BOWL 8" W/HOLE CHROME
15	WPW10196406 Whirlpool 6" Chrome Drip Bowl
27	Nut, Hex Jam (4)
30	Washer (4)
33	Clip, Mounting
33	Screw
35	BURNER RECEPTACLE KIT
36	Element, Grill
36	Lockwasher, 8 Int. Shake- proof
36	Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB
40	Receptacle, Grill Element
41	WP3188425 Whirlpool Seal Switch
42	Clip, Mou
