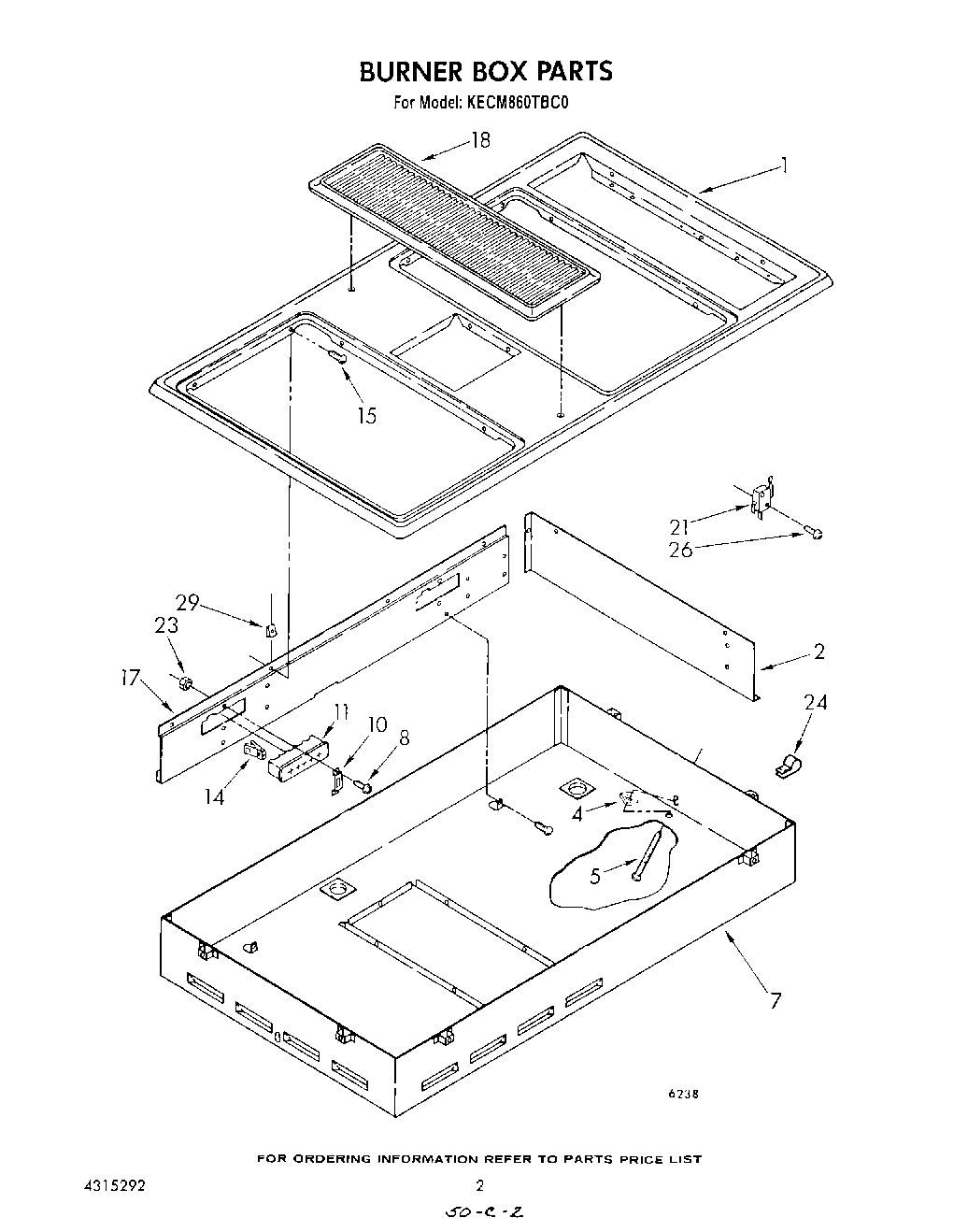

KECM860TBC0 02 – BURNER BOX , LITERATURE AND OPTIONAL

Products

PositionProduct
Vent Installation Instructions
Use & Care Guide
Installation Instructions
List, Repair Parts
1Top, Main
2Sheild, Switch
4Nut, 1/4-20 (2)
5Screw, Hold Down (2)
7Box, Burner
8WP313808 Whirlpool Screw
10Bracket, Plug Block Mounting
11Plug Block
14Contact, Element (10)
15WP965173 Whirlpool Dishwasher Screw
17Baffle, Plug Block
18Cover, Vent
21Switch, Fan
23Nut
24Clip, Wire
26Screw, 6-32 X 3/16 (2)
29WP285432 Whirlpool Terminal
29Rotisserie Kit (RCK 982)
29Smooth Top (RCK 988)
29Wire (14 Ga. 150 c Brown)
29Wire (14 Ga. 150 c Blue)
29W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
29242831 Whirlpool Oven Wire
29Wire, 25“ Roll (White 14 GA.)
29Wire, 25` Roll (Red 14 Ga.)
29Wire, 25` Roll (Black 14 Ga.)
29Wire (14 Ga. 150 c Green)
29Wire (14 Ga. 150 c Orange)
29WPL 261961
29WP90028 Whirlpool Terminal
291
29U-Clip, Top Mounting (12)
29Wire (14 Ga. 200 c Brown)
2918 Ga. 80~c Rating (Red)
29Griddle
29Wire (12 Ga. 150 c Black)
29Wire (14 Ga. 150 c Yellow)
29Grille Kit
