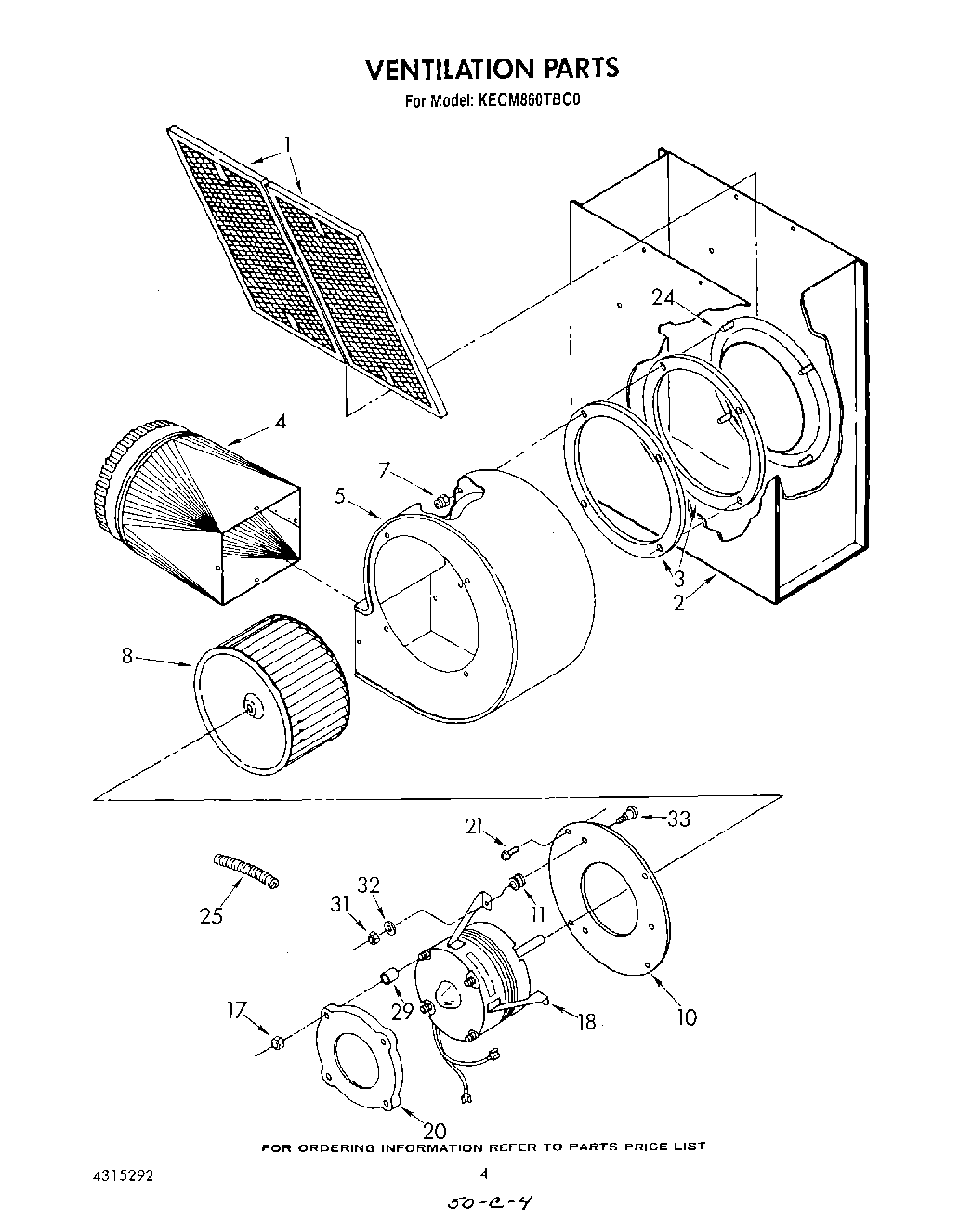

KECM860TBC0 03 – VENTILATION

Products

Position	Product
1	786235 Whirlpool Oven Grease Filter Pack of 2
2	Plenum
3	Gasket, Motor Mounting
4	Transition 6“
5	Scroll, Fan
7	Nut, Locking (4)
8	Wheel, Fan
10	Plate, Motor Mounting
11	Grommet, Motor Mounting (8)
17	WP488826 Whirlpool Nut
18	Motor, 60 Hz.
20	Cover, Motor
21	WP90767 Whirlpool Screw
24	Orifice
25	Conduit
29	Spacer, Motor Cover (4)
31	Screw, 8 X 3/8 (14)
32	Washer (3)
33	Bolt, 10-24 X 3/4 (3)
