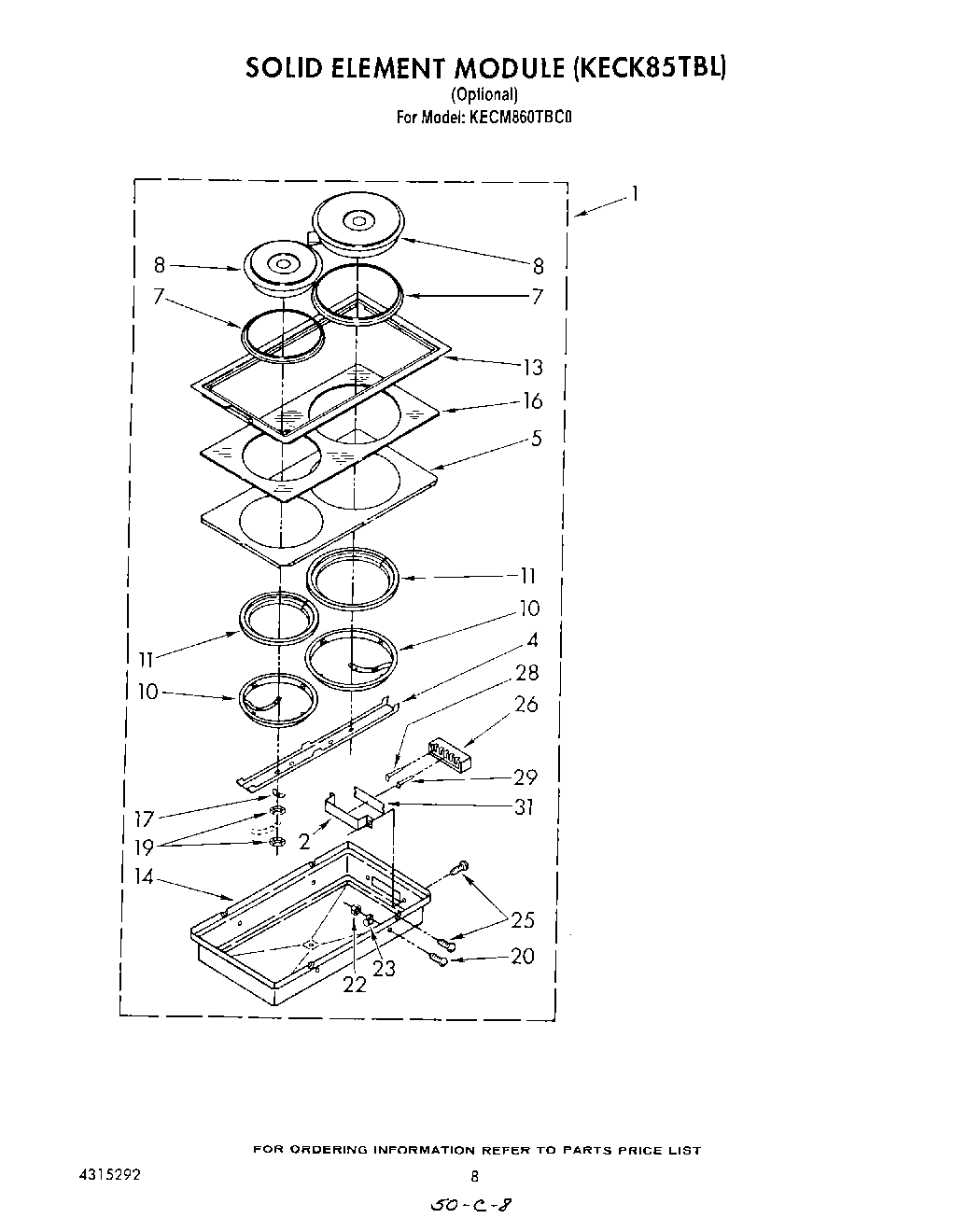

KECM860TBC0 07 – SOLID ELEMENT MODULE

Products

PositionProduct
1xModule Kit, Solid Element (Complete)
2WPL 786707
4WPL 786708
5WPL 786709
7Ring, Spill (8“)
7AIR GRILL
8WP3147131 Whirlpool Surface Element
8WP3147132 Whirlpool Surface Element
10WPL 786715
10Ring, Gasket (6“)
11Gasket (8“)
11Gasket (6“)
13Frame, Top
14WPL 786719
16WPL 786720
17Spring, Leaf
19Nut, Hex
20Screw, 8-32 X 3/8 (4)
22WP488130 Whirlpool Air Conditioner Nut
23Clamp
25Screw, 8-18 X 3/8
26Plug Block, Module
28Contact, Spade (4)
29WPL 786726
31Insulator
