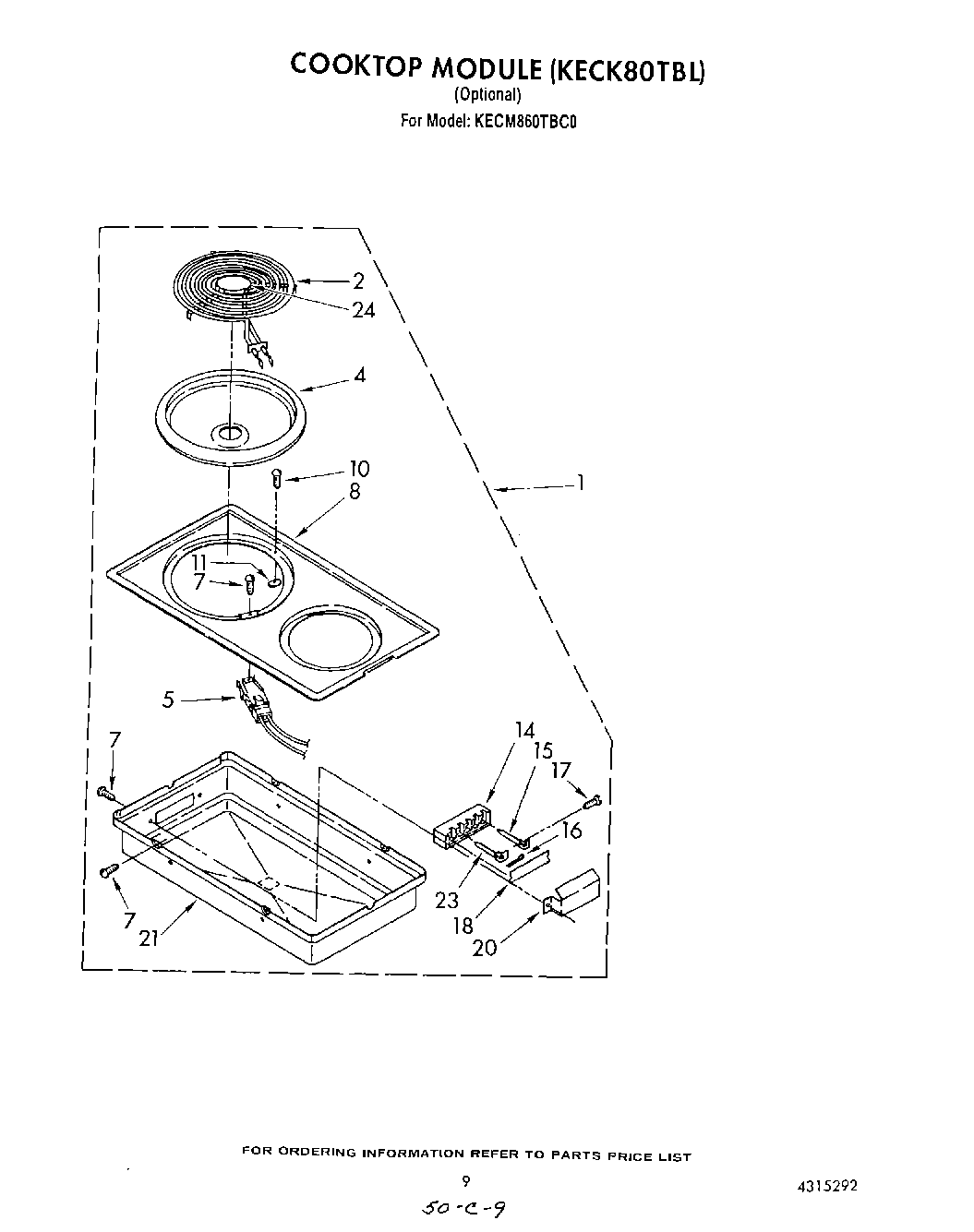

KECM860TBC0 08 – COOKTOP MODULE

Products

PositionProduct
1xKit, Cooktop Module (Complete)
2Element, Surface (Optional) (6“ (208V))
2Element, Surface (Optional) (8“ (208V))
2WP660533 Whirlpool Oven 8" Surface Element
2WP660532 Whirlpool Oven Surface Element
4W10278125 Whirlpool Drip Bowl
4WPW10196406 Whirlpool 6" Chrome Drip Bowl
5BURNER RECEPTACLE KIT
7WP313808 Whirlpool Screw
8Top, Module
10Screw
11Nut
14Plug Block, Module
15WPL 786726
16Wire, Ground (Green)
17Screw (4) No.8-32 x 3/18
18Insulator
20Bracket, Plug Block Mounting
21Pan, Module Element
23Contact, Spade (4)
24Medallion (4)
