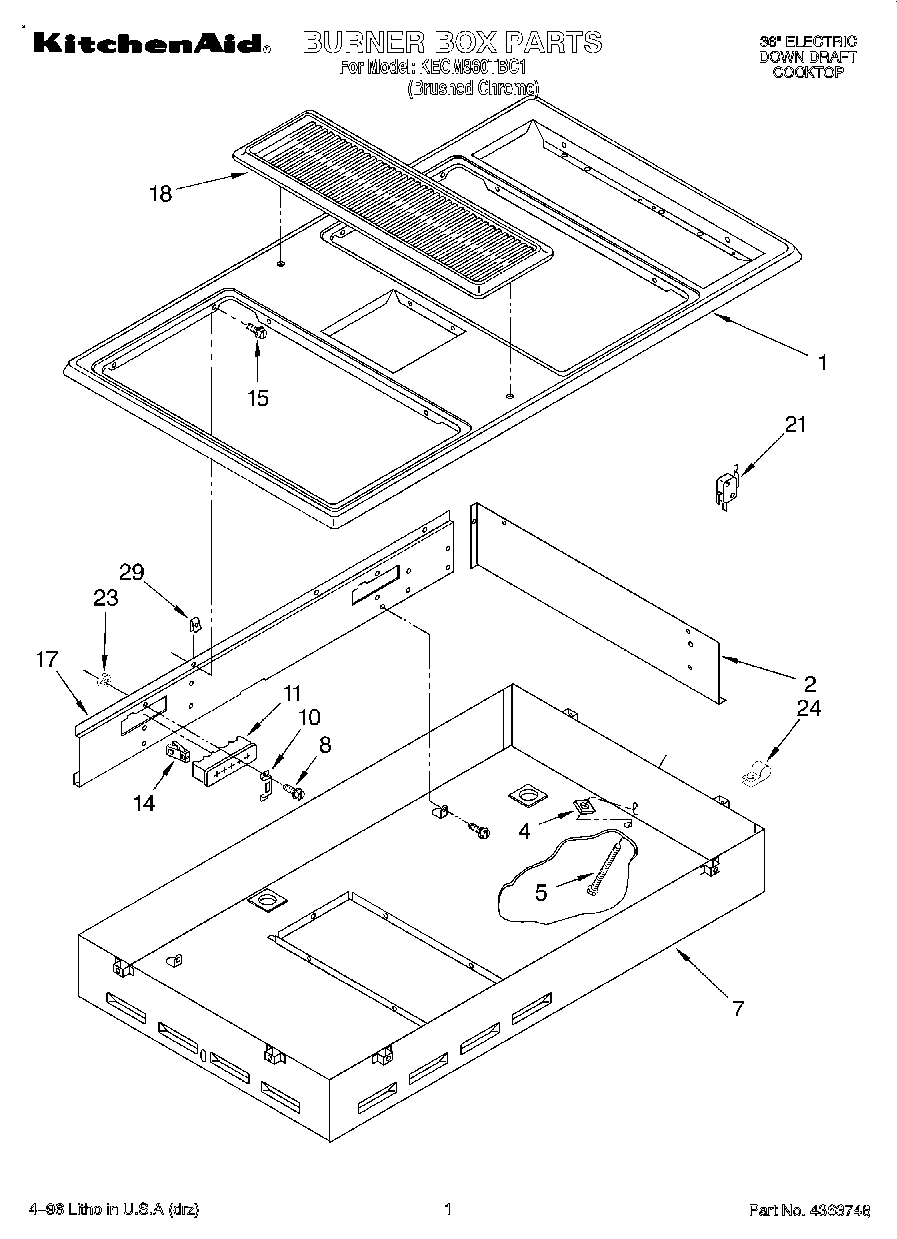

KECM860TBC1 01 – BURNER BOXadmin2025-04-26T12:11:37+00:00KECM860TBC1 01 – BURNER BOX
Products
| Position | Product |
|---|
| 1 | Top, Main |
| 2 | Sheild, Switch |
| 4 | Nut, 1/4-20 (2) |
| 5 | Screw, Hold Down (2) |
| 7 | Box, Burner |
| 8 | WP313808 Whirlpool Screw |
| 10 | Bracket, Plug Block Mounting |
| 11 | Plug Block |
| 14 | Contact, Element (10) |
| 15 | WP965173 Whirlpool Dishwasher Screw |
| 17 | Baffle, Plug Block |
| 18 | Cover, Vent |
| 21 | Switch, Fan |
| 23 | Nut |
| 24 | Clip, Wire |
| 29 | U-Clip, Top Mounting (12) |
