KECN507YBL0 01 – SECTION

Products

PositionProduct
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Installation, Instructions
Use & Care Guide
Wiring Harness

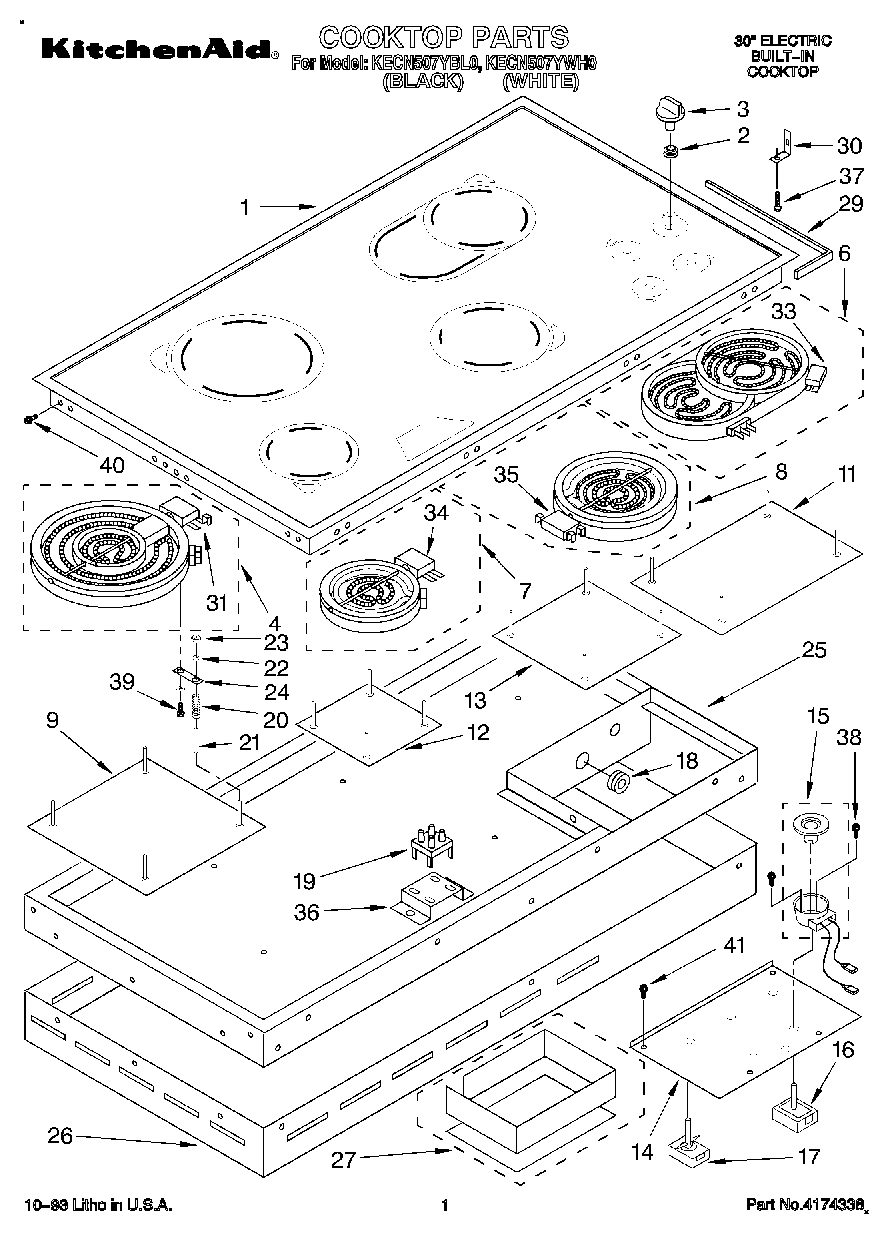

1Cooktop (Black)
1Cooktop (White)
2Seal, Knob (5)
3Knob (5) (White)
3Knob (5) (Black)
9Support, Element 2100W
11Support, Element 2200W
12Support, Element 1200W Halogen
13Support, Element 1800W Halogen
14Support, Plate
15Support, Knob (5)
16Element, Heating 1800W Halogen Right Front
16Element, Heating 1200W Halogen Left Front
16Switch, Infinite (3) 4380009, 4380010, 4380007 Elements
17Element, Heating 2100W (700/1400) Left Rear
17Switch, Infinite Dual Circuit (2) 4380008, 4380006 Elements
17Element, Heating 2200W (1400/800) Right Rear
18Ring, Rubber
19Indicator Light Block
20Spring, Element Support
21Spacer, Element Support
22Washer
23Nut
24Bracket, Element Support
25Burner Box, Inner
26Burner Box, Outer
27Shield, Infinite Switch
29Gasket
30Bracket, Installation
31Limiter, 4380006 Element
33Limiter, 4380008 Element
34Limiter, 4380009 Element
35Limiter, 4380010 Element
36Bracket, Support
37Screw
38Screw
39Screw
40Screw
41Screw
