| W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz) |
| Installation, Instructions |
| Use & Care Guide |
| Harness, Wiring |

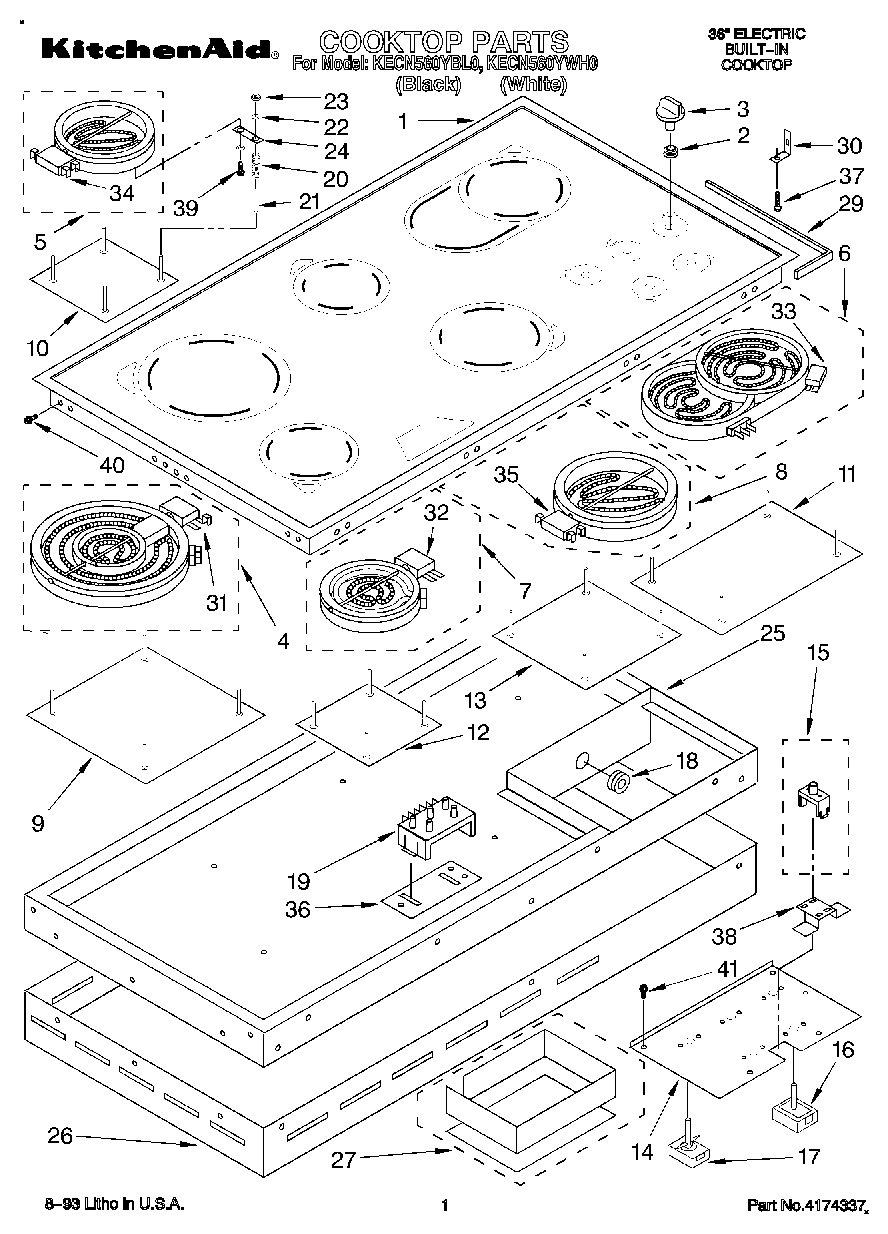

| 1 | Cooktop (White) |
| 1 | Cooktop (Black) |
| 2 | Seal, Knob (5) |
| 3 | Knob (5) (Black) |
| 3 | Knob (5) (White) |
| 4 | Element, Heating 2100W (700/1400) Left Rear |
| 5 | W10823693 Whirlpool Surface Element |
| 6 | Element, Heating 2200W (1400/800) Right Rear |
| 7 | Element, Heating |
| 8 | Element, Heating 1400W Right Front |
| 9 | Support, Element 2100W |
| 10 | Support, Element 1700W |
| 11 | Support, Element 2200W |
| 12 | Support, Element 1200W |
| 13 | Support, Element 1400W |
| 14 | Support, Plate |
| 15 | Indicator, Light (2) |
| 16 | Switch, Infinite (3) 4380009, 4380010, 4380007 Elements |
| 17 | Switch, Infinite Dual Circuit (2) 4380008, 4380006 Elements |
| 18 | Ring, Rubber |
| 19 | Indicator Light Block |
| 20 | Spring, Element Support |
| 21 | Spacer, Element Support |
| 22 | Washer |
| 23 | Nut |
| 24 | Bracket, Element Support |
| 25 | Burner Box, Inner |
| 26 | Burner Box, Outer |
| 27 | Shield, Infinite Switch |
| 29 | Gasket |
| 30 | Bracket, Installation |
| 31 | Limiter, 4380006 Element |
| 32 | Limiter, 4380010 Element |
| 33 | Limiter, 4380008 Element |
| 34 | Limiter, 4380011 Element |
| 35 | Limiter, 4380012 Element |
| 36 | Bracket, Support |
| 37 | Screw |
| 38 | Bracket, Support |
| 39 | Screw |
| 40 | Screw |
| 41 | Screw |
