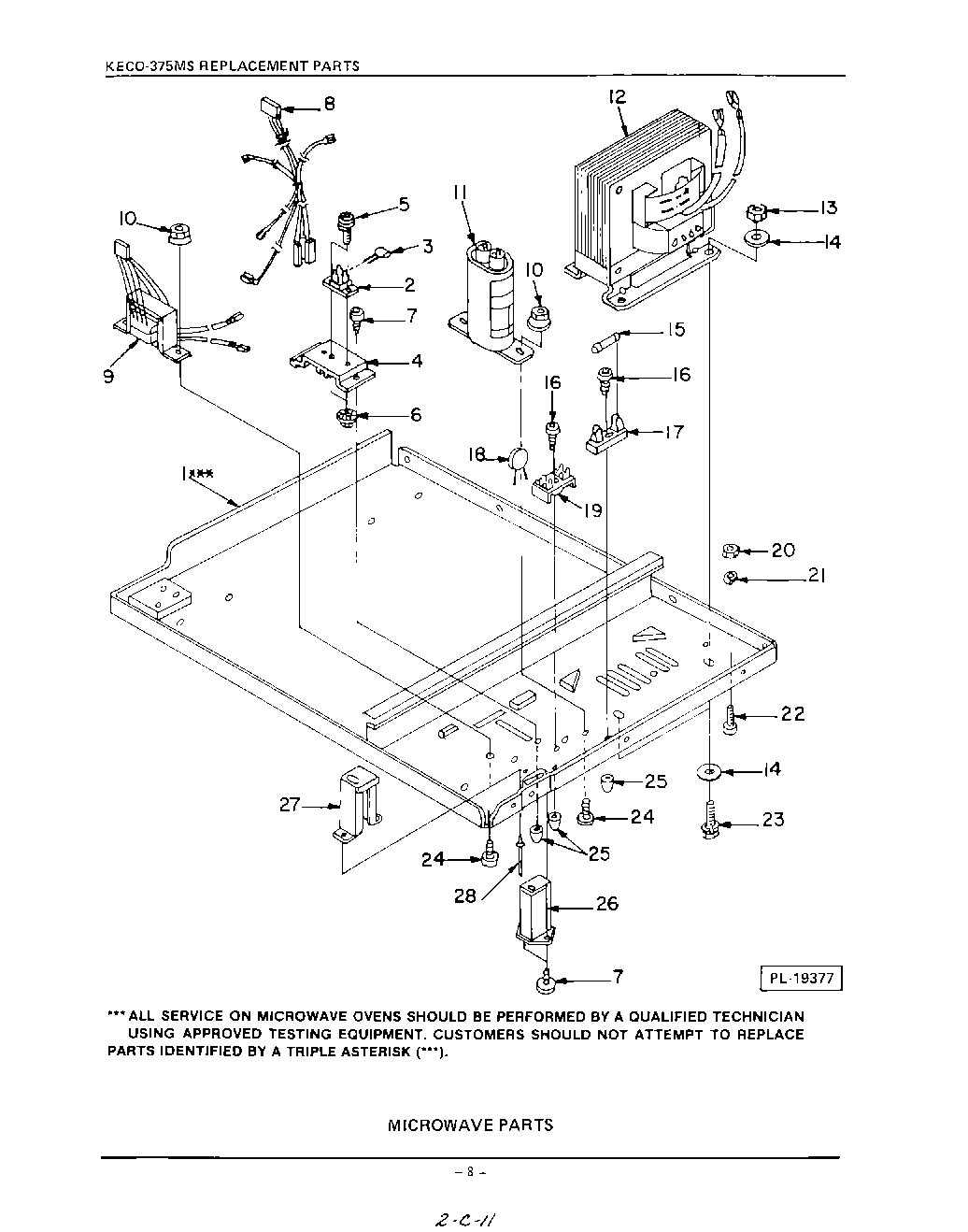

KECO375MS 05 – MICROWAVE PARTS

Products

Position	Product
1	Bottom Plate xxx
2	Triac
3	Polyester Film Capacitor, 0.1 mfd +/- 20 Percent, 50V
4	Heat Sink
5	Screw with Spring Washer, Pan Hd. Machine, 3 x 8 mm, Z1
6	Hex Nut with Washer, 3 mm, Z1-1
7	Screw, Truss Hd. Tapping, 4 x 8, Z1-2
8	Connector, Triac
9	Step-down Transformer, Control Circuit, P6T-3825
10	Hex Nut with Washer, 4 mm, Z1-1
11	High Voltage Capacitor with Resistor and Rectifier, 0.85 mfd
12	High Voltage Transformer, 120 V Input, H6T-3825
13	Hex Nut, 6 mm, Z1-1
14	Lock Washer Int, Tooth No.12
15	Fuse, 15A
16	Screw, Bind Hd. Tapping, 4 x 16 mm, Z1-2
17	Fuse Holder
18	Varistor
19	Terminal Board
20	Hex Nut, 4 mm, Brass, N1-1
21	Spring Washer, 4 mm, Phosphated Bronze, N1
22	Screw, Pan Hd. Machine, 4 x 10 mm, Brass, N1
23	Hex Hd. Bolt with Spring Washer, 6 x 14 mm, Z1
24	Screw, Pan Hd. Diacut, 4 x 10 mm, Z1
25	Cap, Black Vinyl, Screw
26	Back-up Battery
27	Battery Holder
28	WPL 305408
