KECO375MS 06 – DOOR

Products

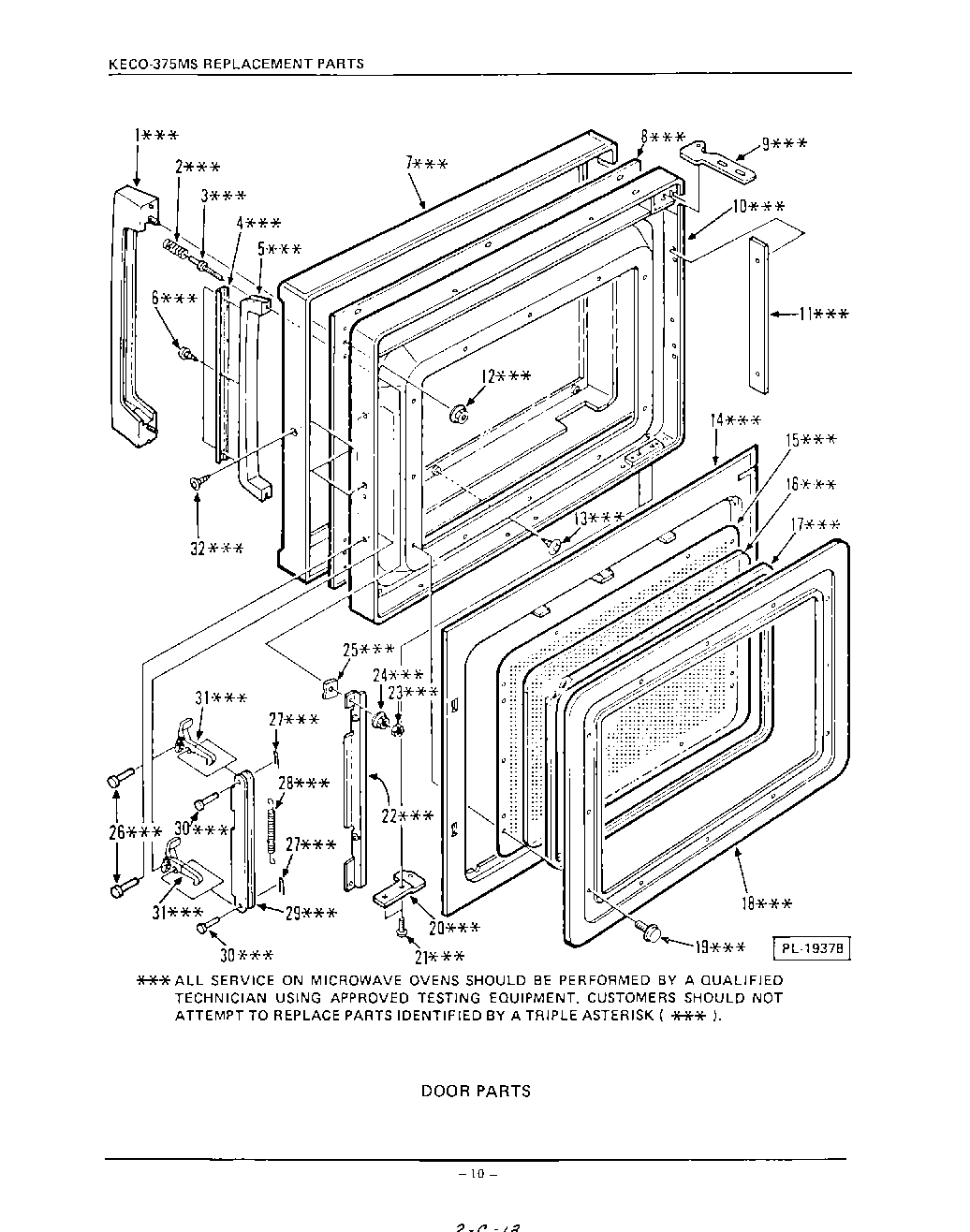

Position	Product
1	Door Handle with Plastic Stripe xxx
2	Spring, Door Handle xxx
3	Shaft, Door Handle xxx
4	Metal Reinforcement xxx
5	Handle Grip xxx
6	Screw, Pan Hd. Tapping, 3 x 6 mm, Z1 xxx
7	Door Sash with Metal Trimming xxx
8	Plastic Barrier xxx
9	Upper Hinge, Door xxx
10	Door Main Frame xxx
11	Ferrite Rubber xxx
12	Hex Nut with Washer, 4 mm, Z1-1
13	Screw, Truss Hd. Tapping, 3 x 6 mm, Z1-1 xxx
14	Choke Dielectric with Ferrite Rubber xxx
15	Perforated Screen xxx
16	Glass Panel xxx
17	Door Seal xxx
18	Retaining Frame, Perforated Screen xxx
19	Sink Screw, Oval Hd. Machine with Washer, 4 x 6 mm, U xxx
20	Lower Hinge, Door xxx
21	Screw, Truss Hd. Machine, 4 x 10 mm, Z1 xxx
22	Latch Lever xxx
23	Hex Nut, 3 mm, Z1 xxx
24	Hex Nut with Washer, 3 mm, Z1-1
25	Rubber Packing, Handle Shaft xxx
26	Shaft, Door Latch xxx
27	Stopper, Latch Lever Shaft xxx
28	Spring, Door Latch xxx
29	Latch Lever xxx
30	Shaft, Latch Lever xxx
31	Door Latch xxx
32	Screw, Flat Hd. Tapping, 3 x 8 mm, ZK-1 xxx
