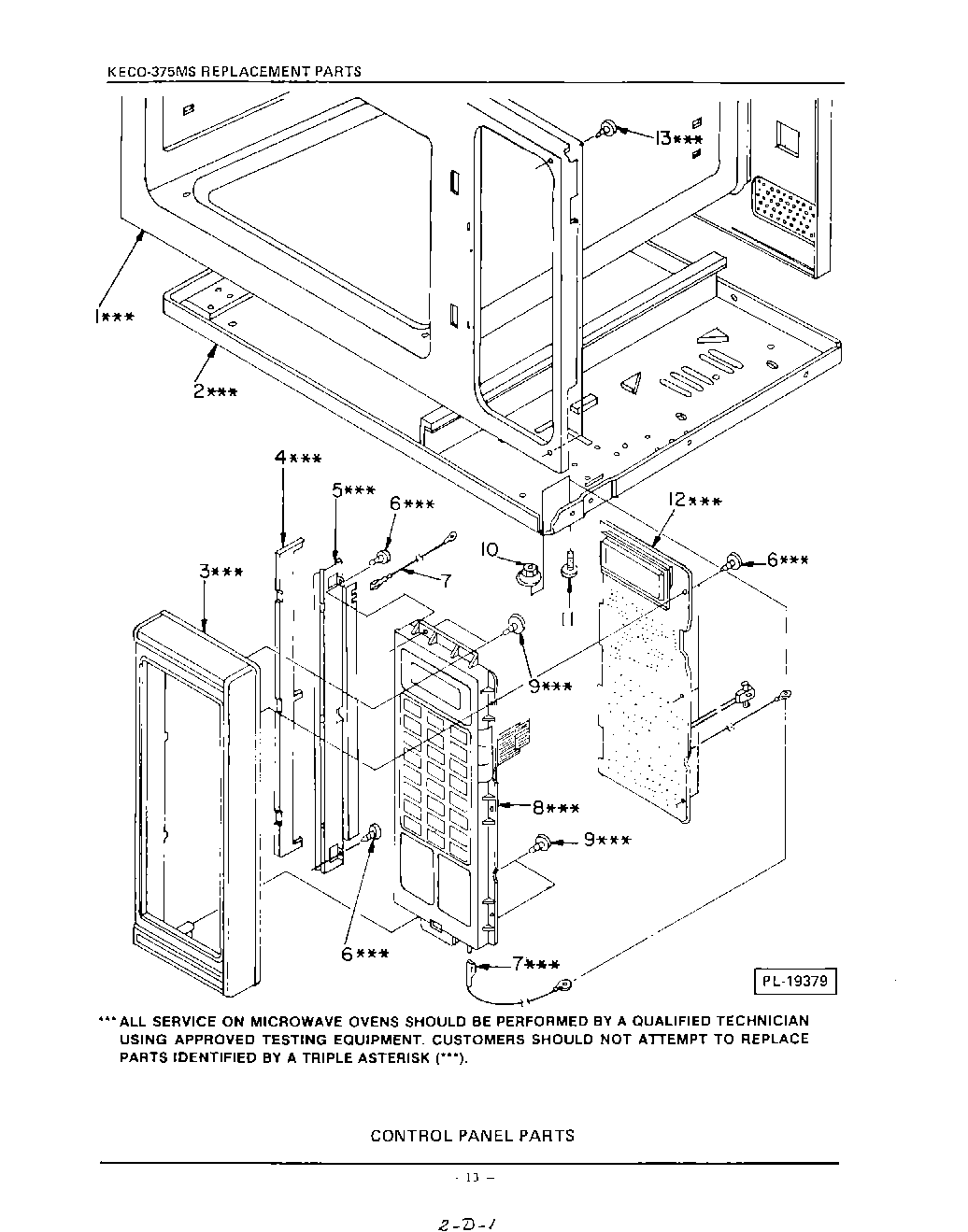

KECO375MS 07 – CONTROL PANEL

Products

Position	Product
1	Oven Cavity xxx (Alos order Caution Label (Key No.3)
2	Bottom Plate xxx
3	Control Frame with Metal Piece xxx
4	Ferrite Rubber xxx
5	Metal Bracket xxx
6	Screw, Pan Hd. Tapping, 3 x 12 mm, C2-1 xxx
7	Ground Lead xxx
8	Touch Key Board Assy. (Incls. Harness) xxx
9	Screw, Truss Hd. Tapping, 4 x 12 mm. Z1-1 xxx
10	Hex Nut with Washer, 4 mm, Z1-1
11	Screw, Pan Hd. Diacut, 4 x 10 mm, Z1
12	Power and Control Circuit Board Complete xxx
13	Screw, Truss Hd. Tapping, 4 x 10 mm, Z1-1
