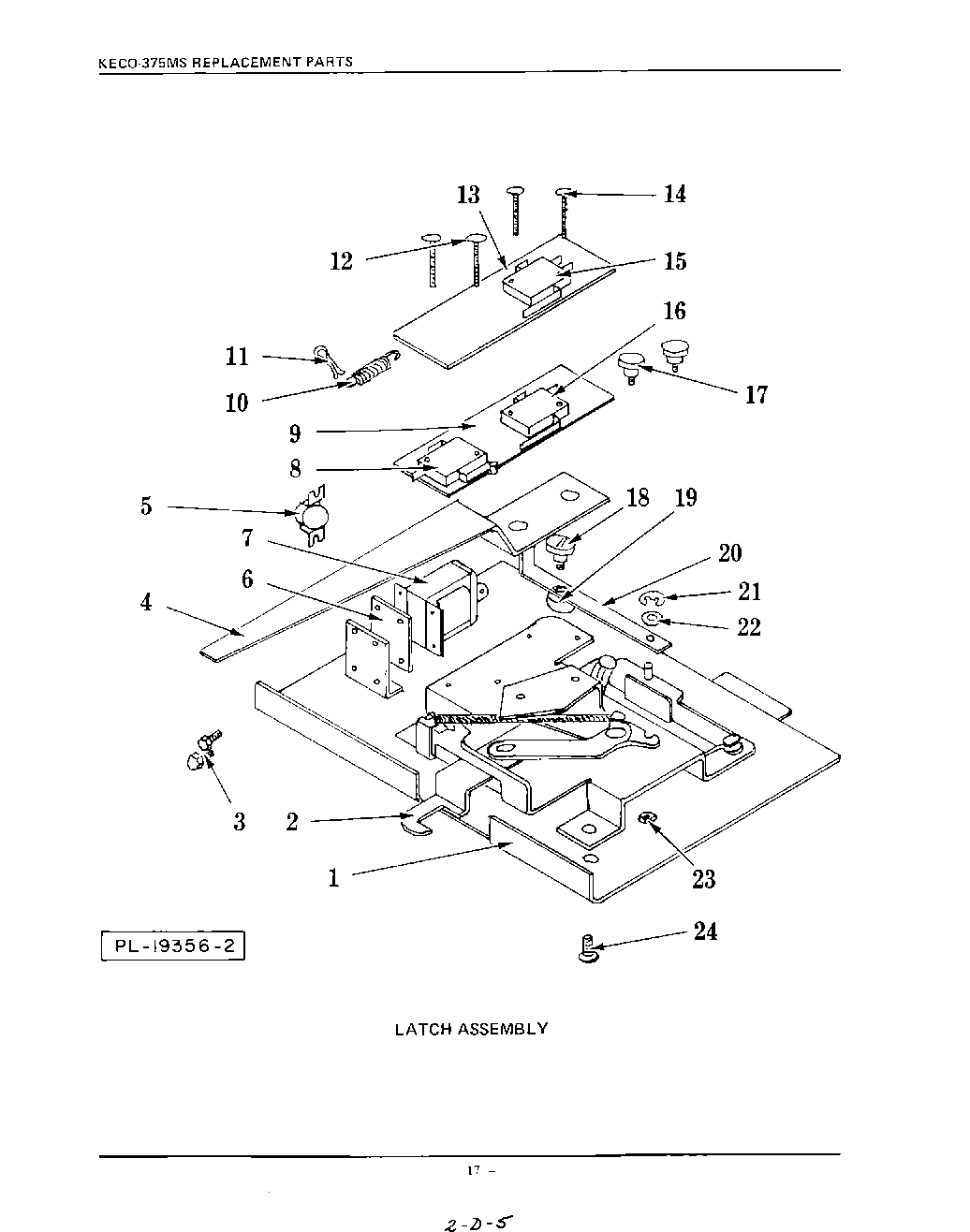

KECO375MS 09 – LATCH ASSEMBLY

Products

Position	Product
1	Latch Mounting Plate
2	Latch Mechanism
3	Screw No.10-24 x 3/8“ Hex TCS
4	Latch Lever
5	Thermal Switch
6	Solenoid Spacer
7	Solenoid
8	Latch Switch with Roller
9	Insulator KEDO-245/275
10	Solenoid Spring
11	Cotter Pin
12	Screw – No.4-40 x 9/16“ RHMS – Slotted KESO-140/145, KESO-170/175
13	Insulator KESO-140/145, KESO-170/175, KEDO-240/270
14	Screw – No.4-40 x 1-1/8“ RHMS – Slotted
15	Latch Switch, SPDT KESO-145/175 Upper Oven KEDO-245/275
16	Latch Switch, Normally Open
17	Shoulder Screw, Latch Lever KESO-140/145, KESO-170, KESO-175 Upper Oven KEDO-245/275
18	Shoulder Screw, Actuator Arm
19	Spacer, Actuator Arm
20	Actuator Arm
21	Retaining Ring
22	Washer, Flat
23	Nut, 10-24 Hex Kep
24	Screw, 10-24 x 3/8“ PTHMS
