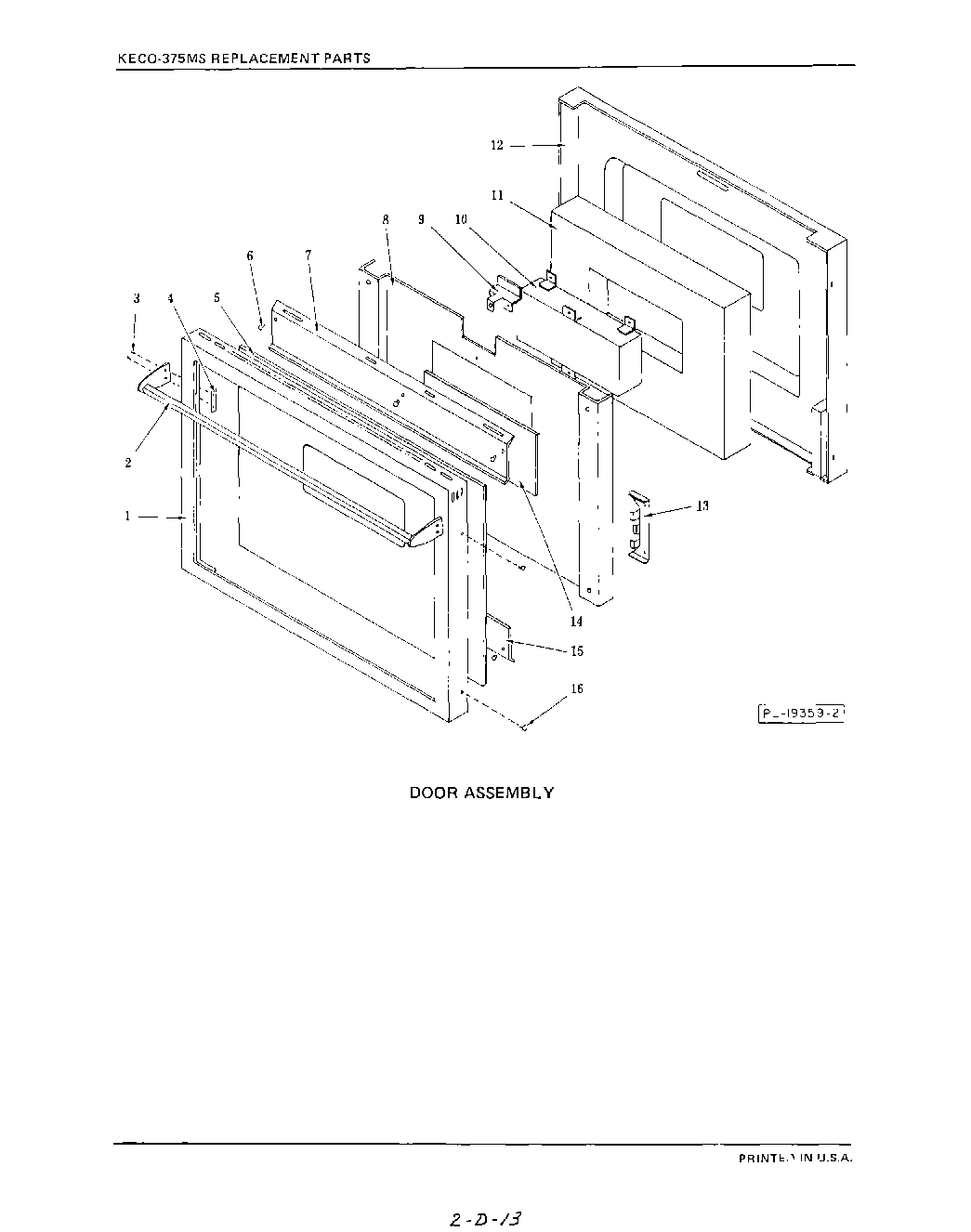

| 1 | Door Frame KEDO-270 |
| 2 | Door Handle KEDO-270 |
| 3 | Screw, 8-32 x 3/8`` PFHMS |
| 4 | Tinnerman |
| 5 | Door Glass KEDO-270 |
| 6 | Rubber Bumper |
| 7 | Air Baffle-Top KEDO-270 |
| 8 | Insulation Retainer KEDO-270 |
| 9 | Lock Bracket |
| 10 | Window Pack |
| 11 | Insulation KEDO-270 |
| 12 | Door Liner KEDO-270 |
| 13 | Glass Mounting Bracket |
| 14 | Glass Panel |
| 15 | Air Baffle-Bottom KEDO-270 |
| 16 | Screw, 8A x 3/8`` PKESMS |
