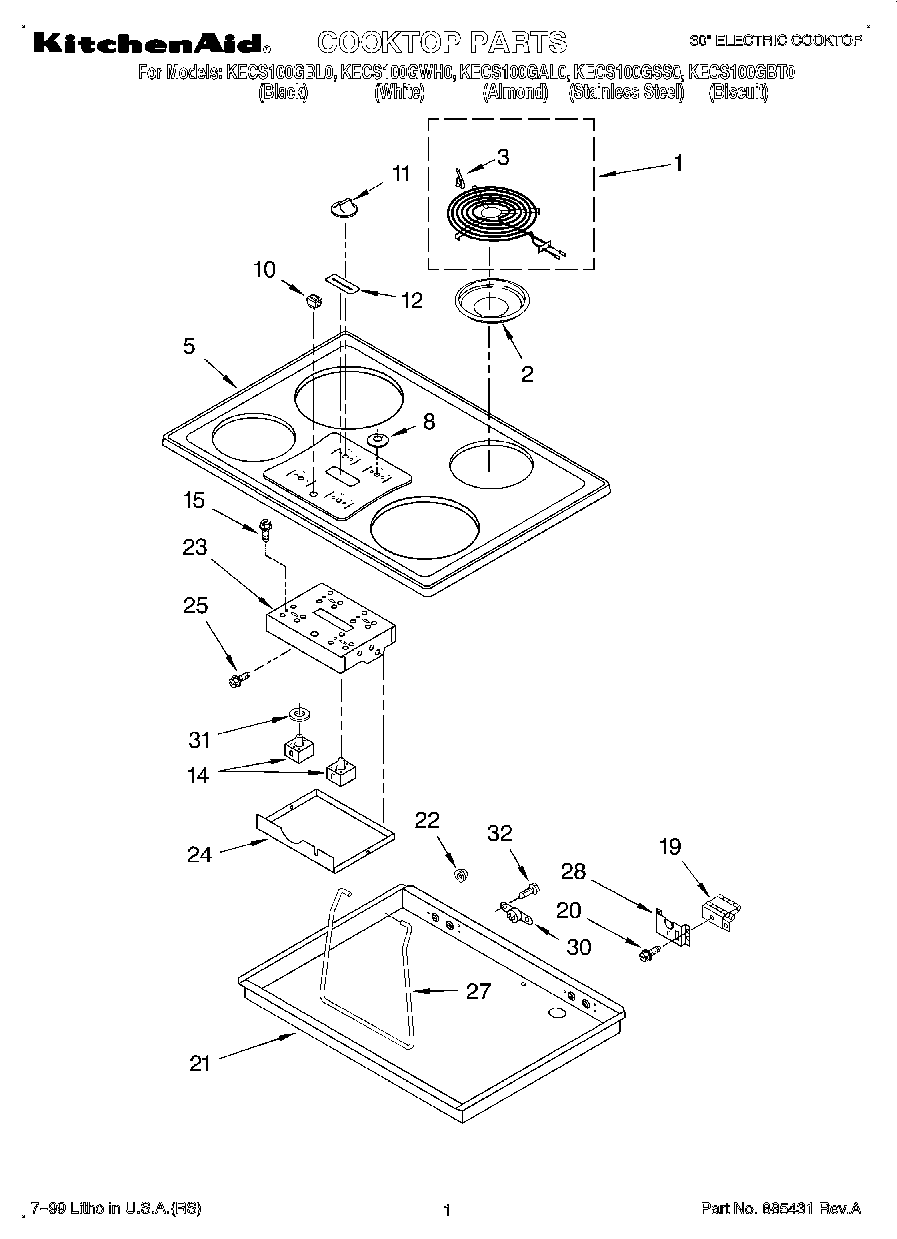

KECS100GAL0 01 – SECTION

Products

Position	Product
	Safer Cooking Tips
	WPL LIT3191538
	WPL LIT3191536
	WPL LIT3192086
1	WP3191455 Whirlpool Surface Element
1	WP3191454 Whirlpool Surface Element
1	Surface Element (2600W RF)
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
2	DRIP BOWL 8" W/HOLE CHROME
3	WP3195917 Whirlpool Clip Assembly
5	Cooktop (Biscuit)
5	Cooktop (Almond)
5	Cooktop (Stainless Steel)
5	Cooktop (White)
5	Cooktop (Onyx Black)
6	Bracket, Installation
7	Screw, 10-24 x 2.5
8	Collar, Knob (Biscuit)
8	Collar, Knob (Almond)
8	Collar, Knob (White)
8	Collar, Knob (Black)
10	WP4456181 Whirlpool Indicator Light
11	Knobs, Control (4) (Almond)
11	WP9750372FW Whirlpool Knob Assembly
11	WP9750372FF Whirlpool Knob
11	WP9750372FC Whirlpool Knob
12	Nameplate (Biscuit)
12	Nameplate (Black)
12	Nameplate (Almond)
12	Nameplate (White)
14	WP3191472 Whirlpool Infinite Switch
14	WP3191473 Whirlpool Infinite Switch
14	WP3191471 Whirlpool Infinite Switch
15	3400855 Whirlpool Oven Screw
19	Hinge (2)
20	WP3177991 Whirlpool Screw
21	Burner Box
22	Bushing, Fiber
23	Bracket, Switch Mounting
24	Cover, Switch Box
25	WP3196557 Whirlpool Screw
27	Rod, Top Support
28	Bracket, Hinge
30	TOD, Reset
31	3183956 Whirlpool Oven Seal Switch
32	WP3400015 Whirlpool Screw
32	Harness, Wire (Pilot Light)
32	Conduit
32	WP486754 Whirlpool Compactor Screw
32	3184020 Whirlpool Oven Wire
32	Harness, Wire (Main
32	Harness, Wire (Main RR-RF)
32	Bushing
