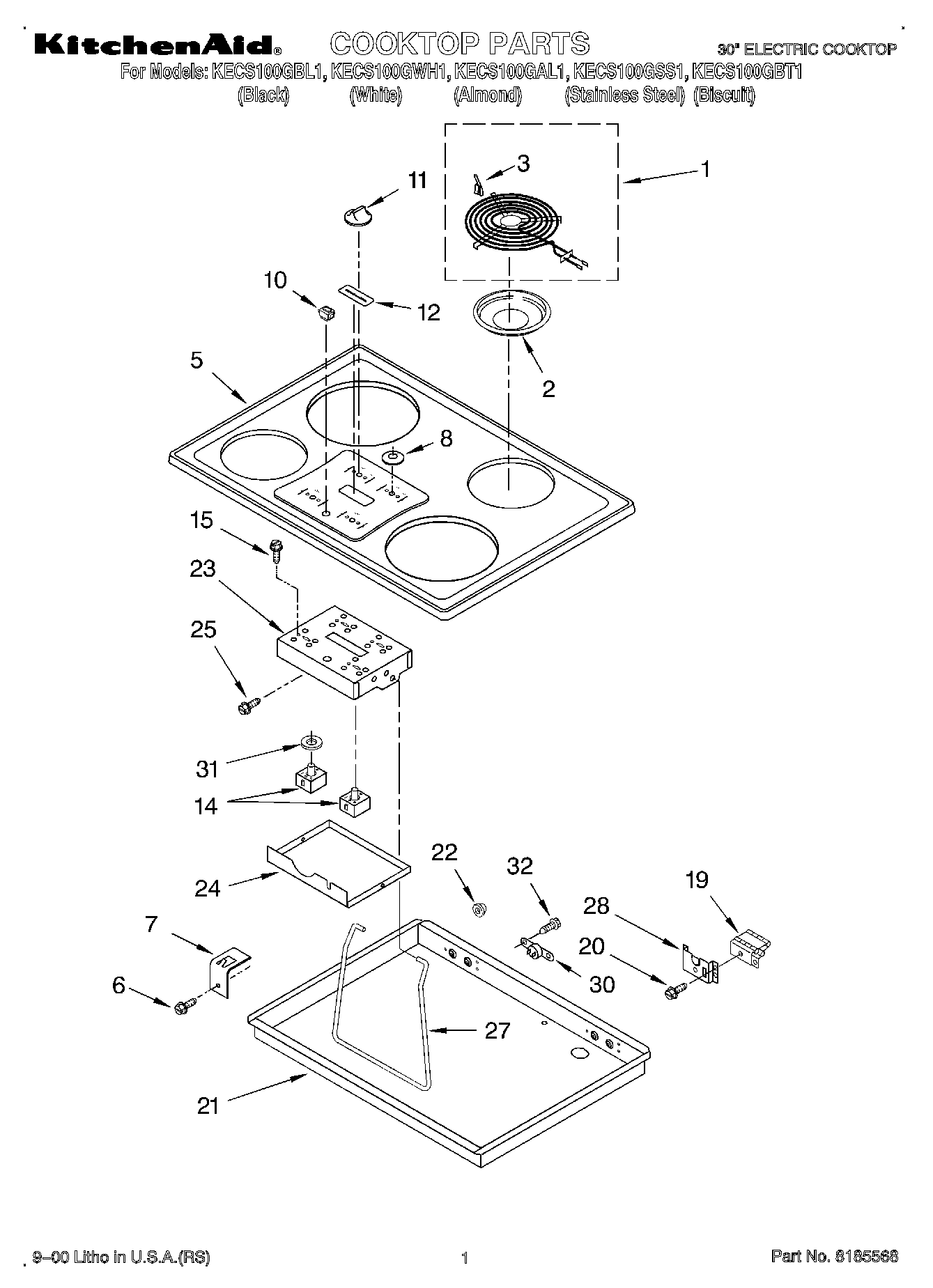

KECS100GSS1 01 – SECTION

KECS100GSS1 01 – SECTION

Written by

in

KECS100GSS1 01 – SECTION

Products

PositionProduct
Safer Cooking Tips
WPL LIT3191536
WPL LIT3191538
WPL LIT3192086
1Surface Element (2600W RF)
1WP3191454 Whirlpool Surface Element
1WP3191455 Whirlpool Surface Element
2DRIP BOWL 8" W/HOLE CHROME
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
3WP3195917 Whirlpool Clip Assembly
5Cooktop (Onyx Black)
5Cooktop (Stainless Steel)
5Cooktop (White)
5Cooktop (Biscuit)
5Cooktop (Almond)
6Bracket, Installation
7Screw, 10-24 x 2.5
8Collar, Knob (White)
8Collar, Knob (Almond)
8Collar, Knob (Black)
8Collar, Knob (Biscuit)
10WP4456181 Whirlpool Indicator Light
11WP9750372FC Whirlpool Knob
11Knobs, Control (4) (Almond)
11WP9750372FW Whirlpool Knob Assembly
11WP9750372FF Whirlpool Knob
12Nameplate (Biscuit)
12Nameplate (Almond)
12Nameplate (White)
12Nameplate (Black)
14WP3191472 Whirlpool Infinite Switch
14WP3191473 Whirlpool Infinite Switch
14WP3191471 Whirlpool Infinite Switch
153400855 Whirlpool Oven Screw
19Hinge (2)
21BOX-BURNER
22Bushing, Fiber
23Bracket, Switch Mounting
24Cover, Switch Box
25WP3196557 Whirlpool Screw
27Rod, Top Support
28Bracket, Hinge
30TOD, Reset
313183956 Whirlpool Oven Seal Switch
32Conduit
32W10491985 Whirlpool Screw
32WP3400015 Whirlpool Screw
32WP486754 Whirlpool Compactor Screw
32Harness, Wire (Main
32Harness, Wire (Main RR-RF)
32Bushing
324448664 Whirlpool Oven Mounting Bracket
323184020 Whirlpool Oven Wire
32Harness, Wire (Pilot Light)
