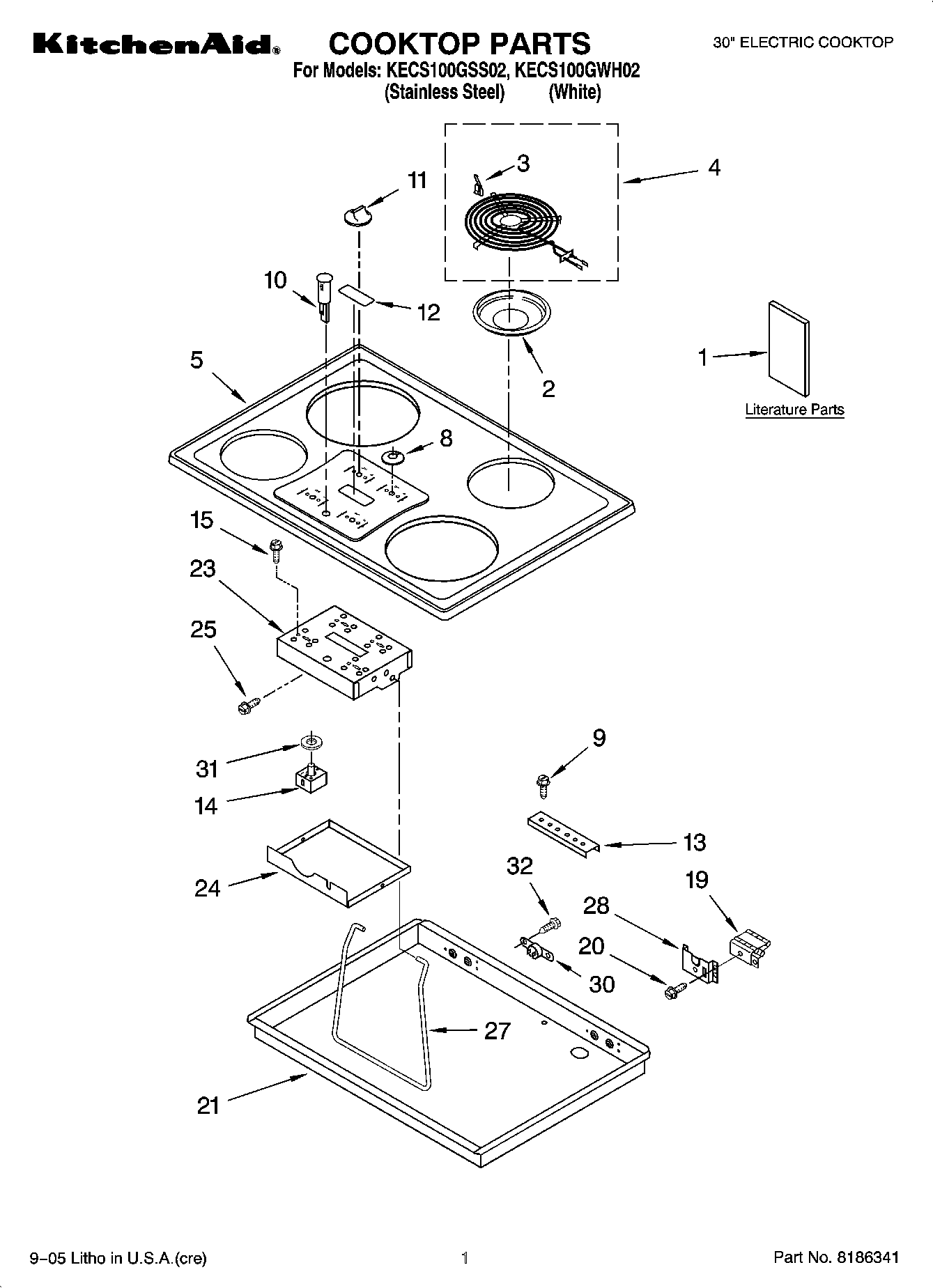

KECS100GWH02 01 – COOKTOP PARTS

Products

PositionProduct
1Safe Cooking Tips
1Wiring Diagram
1Use & Care Guide
1Installation, Instructions
1Safe Cooking Tips (French)
2DRIP BOWL 8" W/HOLE CHROME
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
3WP3195917 Whirlpool Clip Assembly
4Surface Element (2600W RF)
4WP3191454 Whirlpool Surface Element
4WP3191455 Whirlpool Surface Element
5Cooktop (Stainless Steel)
5Cooktop (White)
8Collar, Knob (White)
8Collar, Knob (Black)
9WP3400093 Whirlpool Screw
10WP4456181 Whirlpool Indicator Light
11WP9750372FF Whirlpool Knob
11WP9750372FW Whirlpool Knob Assembly
12Nameplate (Black)
12Nameplate (White)
138186533 Whirlpool Hardware
14WP3191473 Whirlpool Infinite Switch
14WP3191472 Whirlpool Infinite Switch
14WP3191471 Whirlpool Infinite Switch
153400855 Whirlpool Oven Screw
19Hinge (2)
21BOX-BURNER
23Bracket, Switch Mounting
24Cover, Switch Box
25WP3196557 Whirlpool Screw
27Rod, Top Support
28Bracket, Hinge
30TOD, Reset
313183956 Whirlpool Oven Seal Switch
32Conduit
32Harness, Wire (Main LF-LR)
32FOLLOWING PARTS NOT ILLUSTRATED
32W10491985 Whirlpool Screw
324448664 Whirlpool Oven Mounting Bracket
32Harness, Wire (Main RR-RF)
32WP486754 Whirlpool Compactor Screw
32WP3400015 Whirlpool Screw
323184020 Whirlpool Oven Wire
32Bushing
32WIRING HARNESS PARTS
