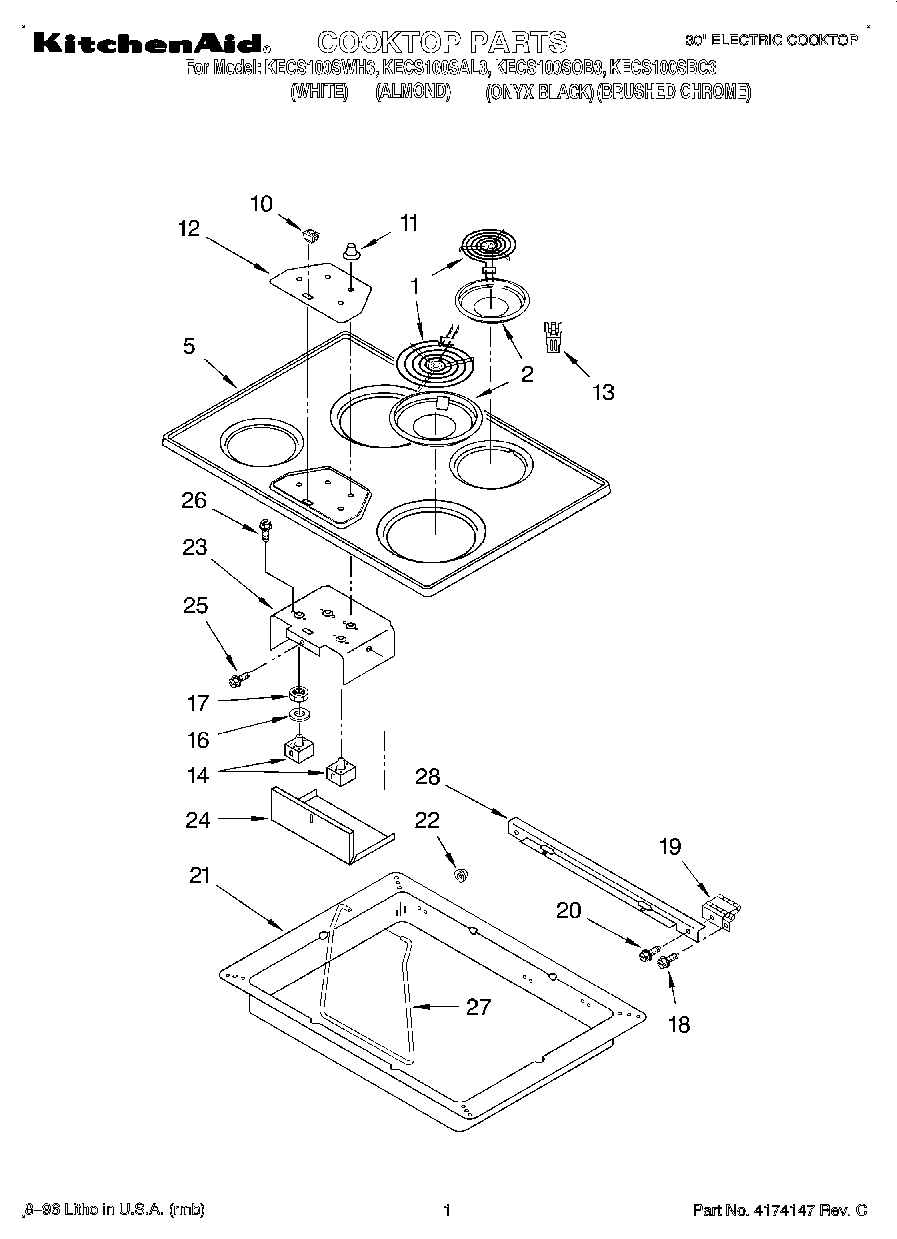

KECS100SBC3 01 – SECTION

Products

Position	Product
	Installation Instructions
	Repair Parts List
	Guide, Use & Care
1	WP3191455 Whirlpool Surface Element
1	WP3177565 Whirlpool Surface Element
1	326789 Whirlpool Surface Element 8 Inch
2	DRIP BOWL 8" W/HOLE CHROME
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
5	Cooktop (Almond)
5	Cooktop (White)
5	Cooktop (Onyx Black)
5	Cooktop (Brushed Chrome)
10	Light, Power On
11	Knob, Control (4)
12	Plate, Control
13	BURNER RECEPTACLE KIT
14	Switch, Infinite (8“ Elmnt (2) 2600W)
14	Switch, Infinite (6“ Elmnt (2) 1400W)
16	Washer (4)
17	Nut, Hex Jam (4)
19	Hinge (2)
21	Burner Box
22	Bushing, Fiber
23	Bracket, Switch Mounting
24	Cover, Switch Control
25	Screw, (2)
26	WPW10068250 Whirlpool Dishwasher Screw
27	Rod, Top Support
28	Wire Assy. Red
28	Bracket, Hinge
28	Harness, Wire Power
28	Mounting Hardware
28	Harness, Pilot Light
28	Wire Assy. Black
