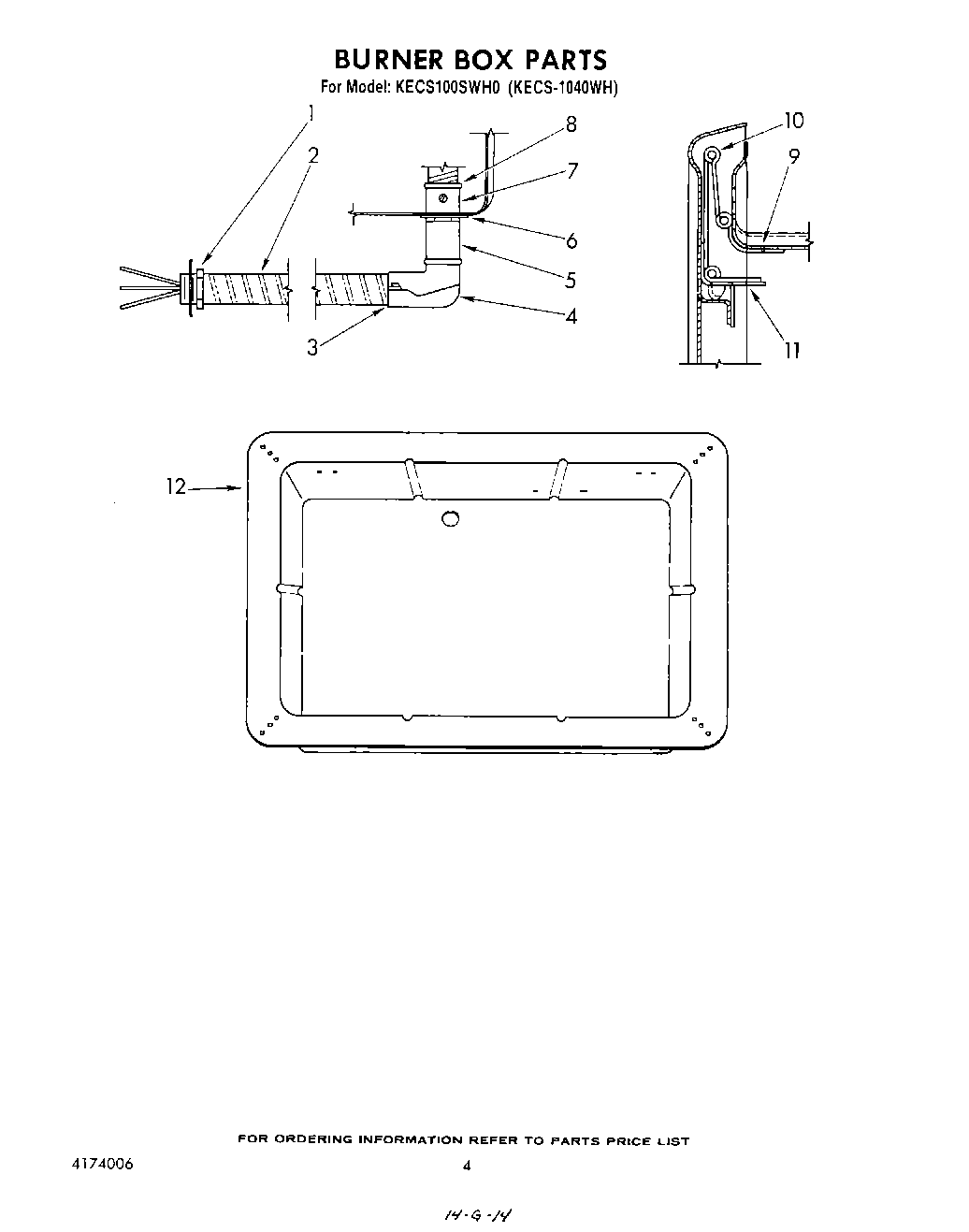

KECS100SWH0 04 – SECTION

Products

Position	Product
	Installation Instructions
	Guide, Use & Care
	Repair Parts List
1	Conduit Connector
2	Conduit, 1/2“ Flexible
3	Bushing, Fiber
4	Cnduit Connector 90o X 1/2
5	Coupling, Pipe
6	Washer, Reducing
7	7111P002-60 Whirlpool Clamp
8	Bushing, Conduit
9	Screw, (2)
10	Hinge (2)
11	WPW10068250 Whirlpool Dishwasher Screw
12	Switch Cover
12	Burner Box
12	Mounting Hardware
12	Rod, Top Support
12	Conduit, Extra Flex
