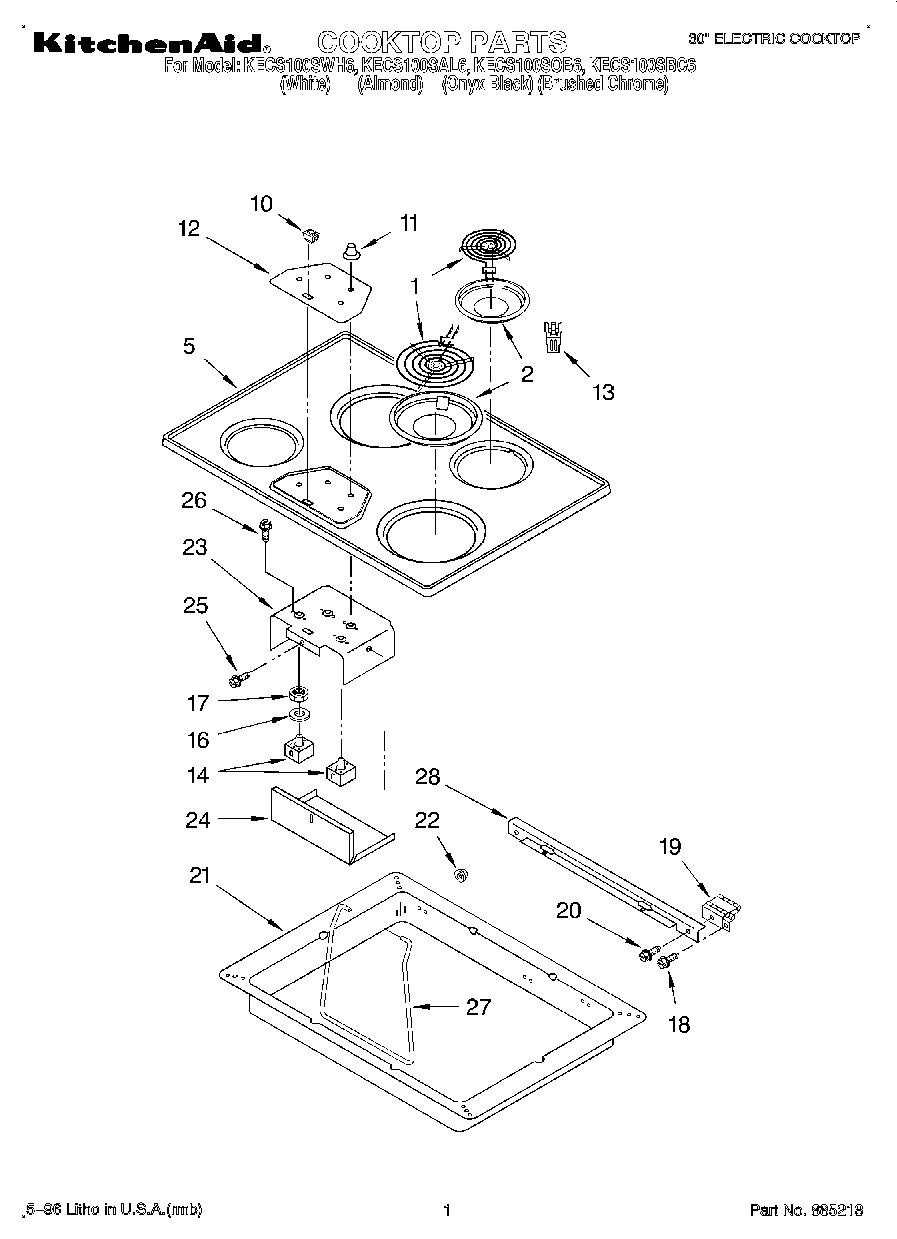

| 1 | 326789 Whirlpool Surface Element 8 Inch |
| 1 | WP3177565 Whirlpool Surface Element |
| 1 | WP3191455 Whirlpool Surface Element |
| 2 | DRIP BOWL 8" W/HOLE CHROME |
| 2 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 5 | Cooktop (Onyx Black) |
| 5 | Cooktop (White) |
| 5 | Cooktop (Almond) |
| 5 | Cooktop (Brushed Chrome) |
| 10 | Light, Power On |
| 11 | Knob, Control (4) |
| 12 | Plate, Control |
| 13 | BURNER RECEPTACLE KIT |
| 13 | Screw |
| 13 | Clip, Mounting |
| 14 | Switch, Infinite (Use W/8`` Elements (Violet Stem)) |
| 14 | Switch, Infinite (Use W/6`` Elements (Silver Stem)) |
| 16 | Washer (4) |
| 17 | Nut, Hex Jam (4) |
| 19 | Hinge (2) |
| 21 | Burner Box |
| 22 | Bushing, Fiber |
| 23 | Bracket, Switch Mounting |
| 24 | Cover, Switch Control |
| 25 | Screw, (2) |
| 26 | WPW10068250 Whirlpool Dishwasher Screw |
| 27 | Rod, Top Support |
| 28 | Harness, Pilot Light |
| 28 | Mounting Hardware |
| 28 | Harness, Wire Power |
| 28 | Wire Assy. Red |
| 28 | Wire Assy. Black |
| 28 | Bracket, Hinge |
