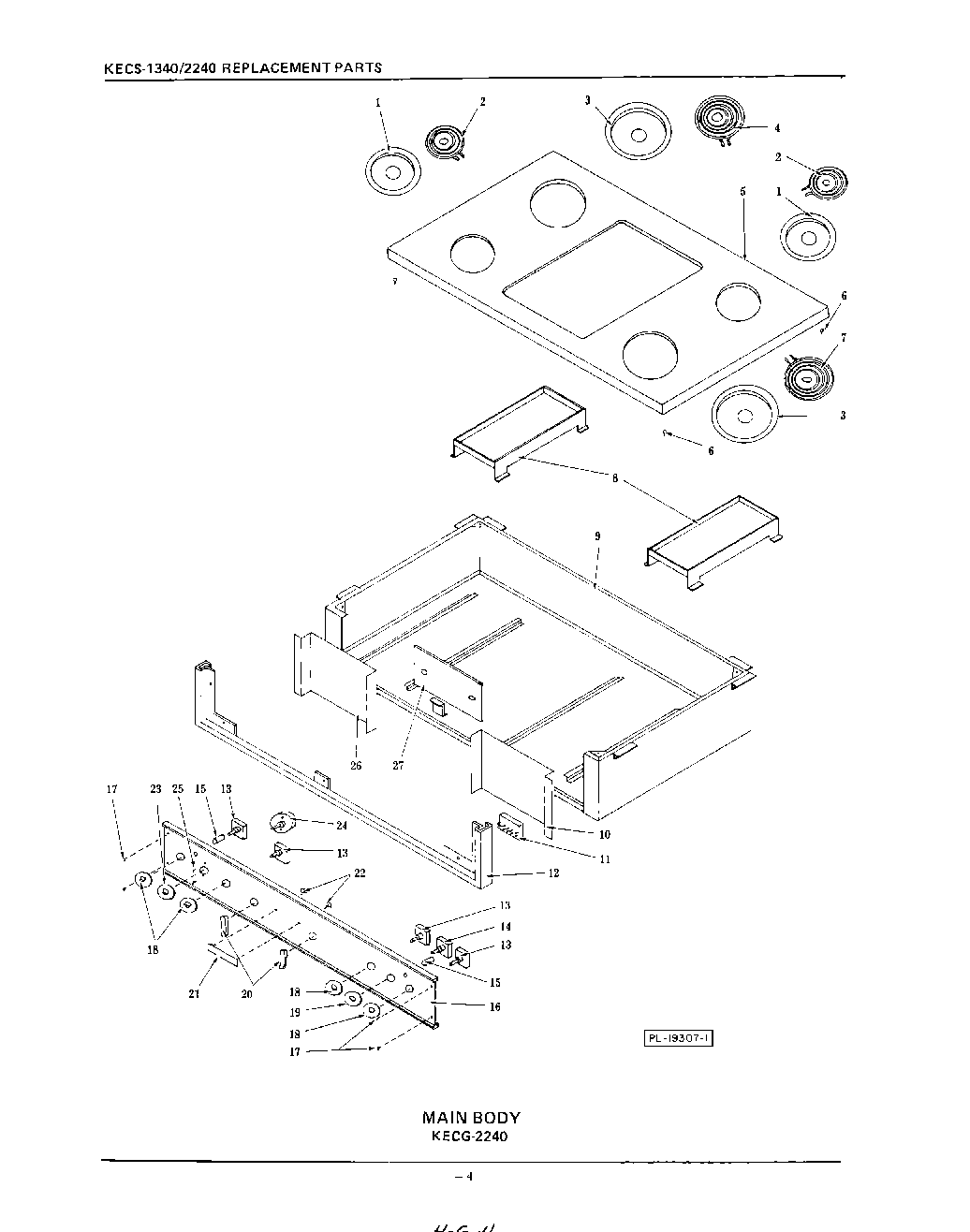

KECS130SWH0 03 – SECTION

Products

Position	Product
1	6“ Burner Bowl
2	Element, 1250 Watt
3	8“ Burner Bowl
4	Element, 2100 Watt
5	Cooktop
6	Tee Bolt
7	Element, 2600 Watt
8	Burner Pan
9	Housing
11	Terminal Block
12	Front Frame
13	Infinite Switch
14	Griddle Control Switch
15	Indicator Light
16	Control Panel
17	Screw, 10AB x 1/2“ POHSMS
18	Knob, Top Burner
19	Knob, Broiler
20	Handle
21	Nameplate
22	Nut, Push – On
23	Knob – Timer
24	Timer
25	Screw, 5-40 x 1/2“ RHMS – Slot
26	Switch Box, Left Hand
27	Control Panel Heat Shield
