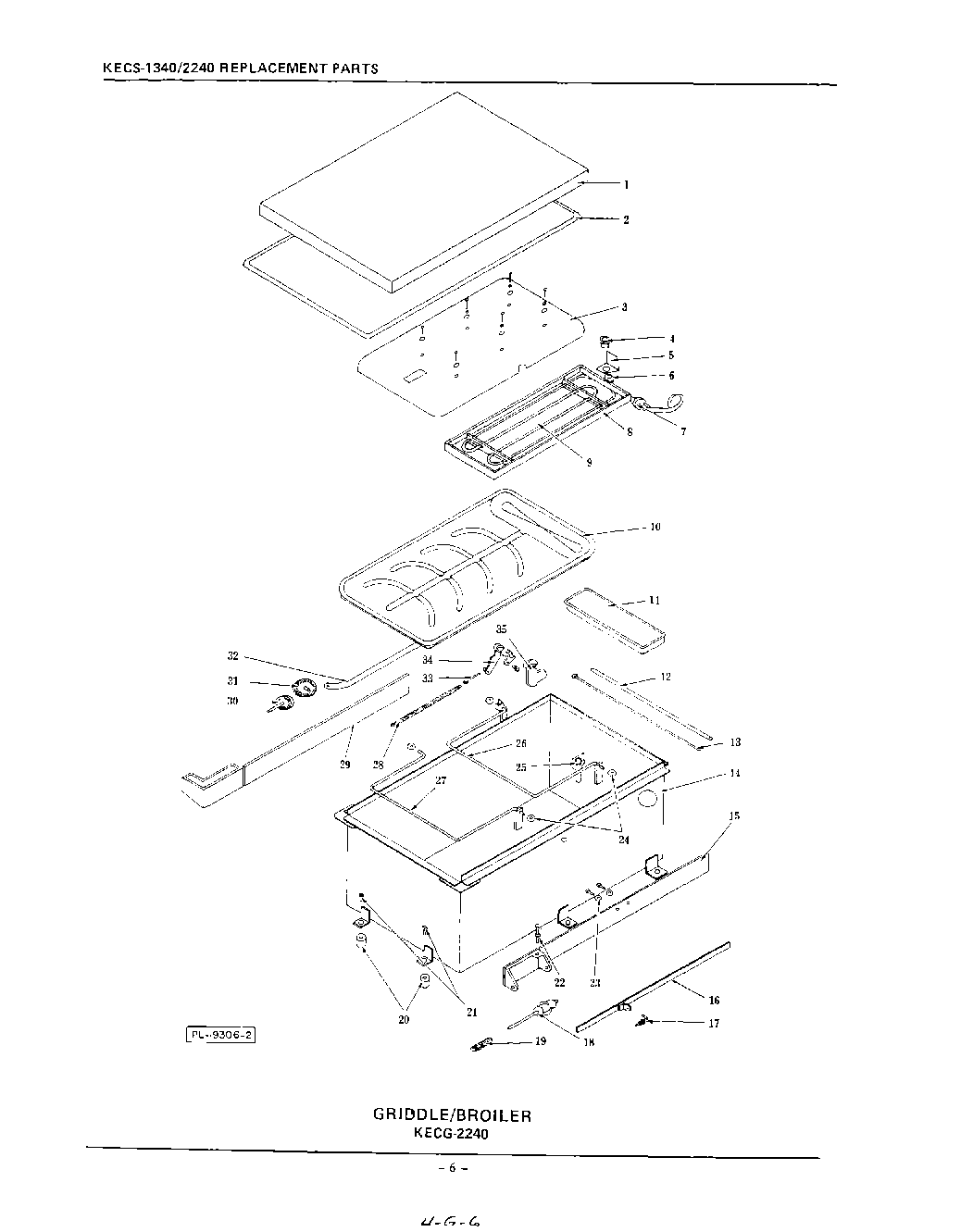

KECS1340 04 – SECTION

Products

Position	Product
1	Cutting Board
2	Griddle
3	Broiler Burner Heat Shield
4	Sensor Fitting
5	Mounting Angle, Sensor
6	Lock Nut, 1/2“-20
7	Element Pivot Assembly
8	Broiler Element Frame
9	Broiler Element
10	Broiler Platter
11	Grease Cup
12	Broiler Box Spacer
13	Broiler Box Tee Bolt
14	Broiler Box
15	Broiler Box Reinforcement Plate, Right
16	Sling Link Assy
17	Front Sling Adjustment Hook
18	Griddle Lift Cam and Shaft Assembly
19	Cam Shaft Spring
20	Spacer
21	Screw, 10-24 x 1/4“ HWHTCS
22	Screw, 10-24 x 1-1/2“ HHMS Slot
23	Washer, 13/32 x 5/8
24	Washer, 7/16 x 1
25	Burner Neck Burner
26	Rear Sling Assembly
27	Front Sling Assembly
28	Broiler Lift Spring
29	Broiler Box Reinforcement Plate, Left
30	Front Gear and Shaft Assembly
31	Griddle Lift Gear
32	Connecting Bar
33	Eyebolt, 10-24 x 1-1/2“
34	Griddle Lift Spring – Coupling Assembly
35	Broiler Burner Shaft Bearing
