| Guide, Use & Care |
| WPL LIT4174026 |

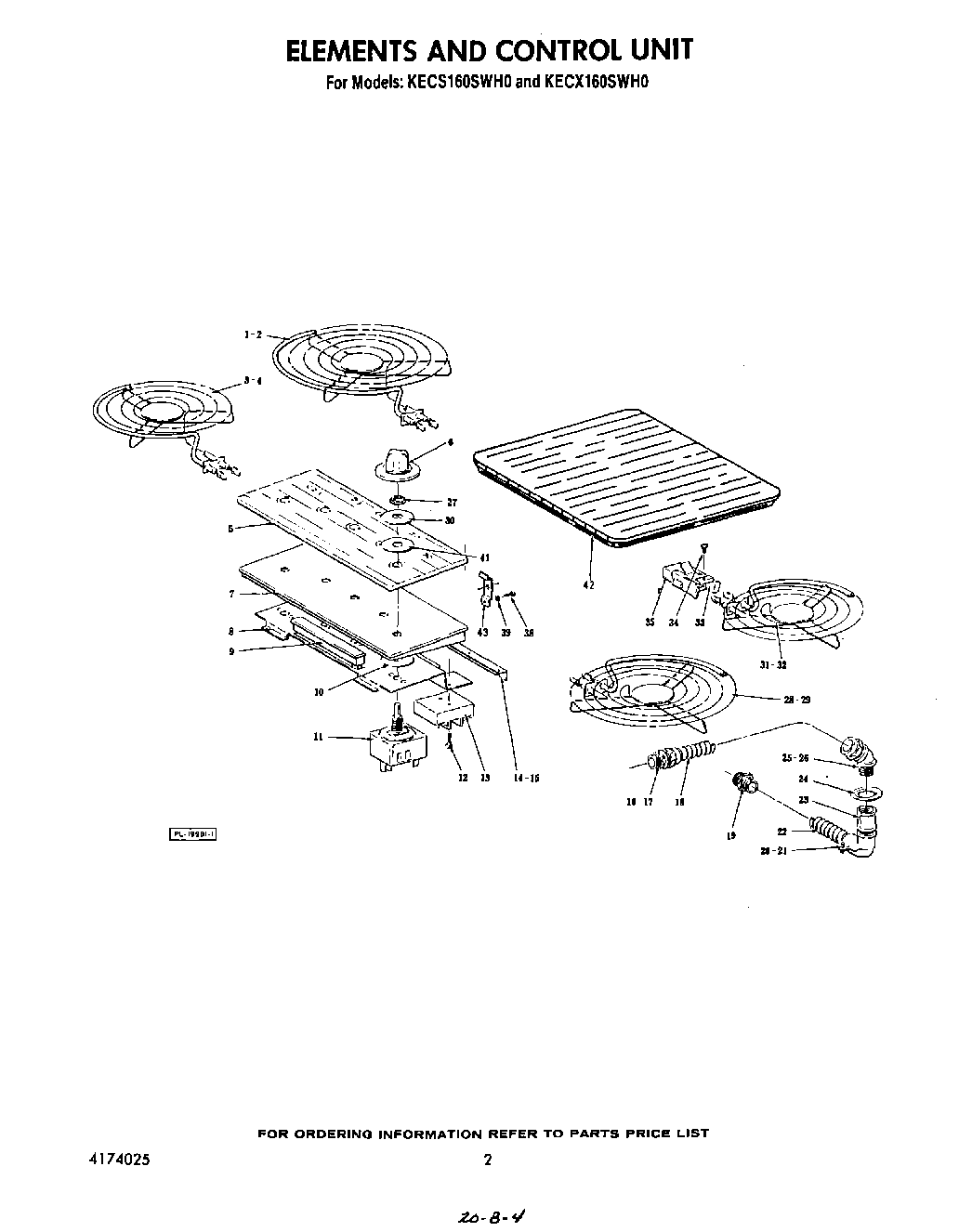

| Repair Parts List |
| 1 | WP660533 Whirlpool Oven 8" Surface Element |
| 2 | WP3177565 Whirlpool Surface Element |
| 5 | Glass, Control Panel |
| 6 | Knob, Control (4) |
| 7 | Frame, Glass Mounting |
| 8 | Bracket, Switch Mounting |
| 9 | Indicator Light Assembly |
| 11 | Switch, Infinite |
| 12 | Screw, Self Tapping (10-16 X 7/8) Phil. Pan Hd. |
| 13 | Block, Terminal |
| 15 | Screw, Self- Tapping 8-18 X 5/16 Phil. Pan Hd. |
| 17 | Coupling, Pipe 1/2`` |
| 18 | Conduit, Extra Flexible |
| 19 | Conduit Connector |
| 20 | Conduit Donnector 90~ X 1/2 |
| 21 | Bushing, Fiber |
| 22 | Conduit, 1/2`` Flexible |
| 23 | Coupling, 1/2 Pipe |
| 24 | Washer, Reducing |
| 25 | Bushing, Conduit |
| 26 | Connector, 3/8 X 45o |
| 27 | Nut, Hex Jam (4) |
| 29 | Element 8`` (2250W 208V.) |
| 30 | Washer (4) |
| 31 | WPY04100165 Whirlpool Surface Element |
| 32 | Element (6`` 1080 Watt 208V.) |
| 33 | Clip, Receptacle (4) |
| 34 | Screw |
| 35 | BURNER RECEPTACLE KIT |
| 38 | Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB |
| 39 | Lockwasher, 8 Int. Shake- proof |
| 41 | WP3188425 Whirlpool Seal Switch |
| 42 | Cutting Board |
| 43 | Grill Receptacle Cover |
