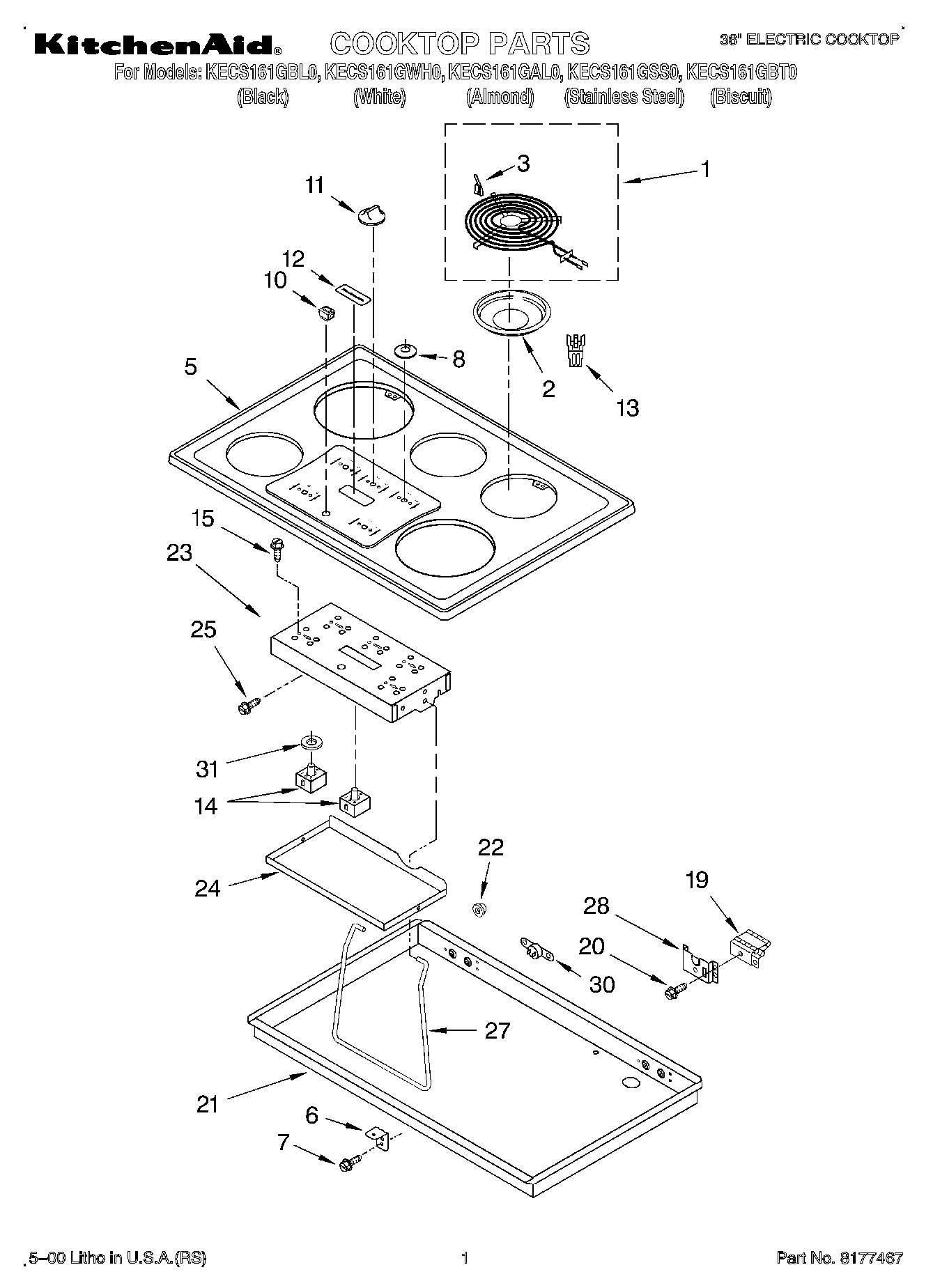

KECS161GBL0 01 – SECTION

Products

Position	Product
	WPL LIT3191538
	WPL LIT3191536
1	Surface Element (2600W RF)
1	WP3191455 Whirlpool Surface Element
1	WP3191454 Whirlpool Surface Element
2	DRIP BOWL 8" W/HOLE CHROME
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	WP3195917 Whirlpool Clip Assembly
5	Cooktop (Stainless Steel)
5	Cooktop (Biscuit)
5	Cooktop (Almond)
5	Cooktop (White)
5	Cooktop (Black)
6	Bracket, Installation
7	Screw, 10-24 x 2.5
8	Collar, Knob (Black)
8	Collar, Knob (White)
8	Collar, Knob (Almond)
8	Collar, Knob (Biscuit)
10	WP4456181 Whirlpool Indicator Light
11	WP9750372FF Whirlpool Knob
11	WP9750372FW Whirlpool Knob Assembly
11	Knobs, Control (4) (Almond)
11	WP9750372FC Whirlpool Knob
12	Nameplate (Almond)
12	Nameplate (Biscuit)
12	Nameplate (White)
12	Nameplate (Black)
13	WP9760411 Whirlpool Clip
14	WP3191473 Whirlpool Infinite Switch
14	WP3191472 Whirlpool Infinite Switch
14	WP3191471 Whirlpool Infinite Switch
15	3400855 Whirlpool Oven Screw
19	Hinge (2)
20	WP3177991 Whirlpool Screw
21	Burner Box
22	Bushing, Fiber
23	Bracket, Switch Mounting
24	Cover, Switch Box
25	WP3196557 Whirlpool Screw
27	Rod, Top Support
28	Bracket, Hinge
30	TOD, Reset
31	Harness, Wire (Main
31	Harness, Wire (Main Center)
31	Harness, Pilot Light
31	Harness, Wire (Main RR-RF)
31	Bushing
31	WP3400015 Whirlpool Screw
31	3183956 Whirlpool Oven Seal Switch
31	3184020 Whirlpool Oven Wire
31	Conduit
