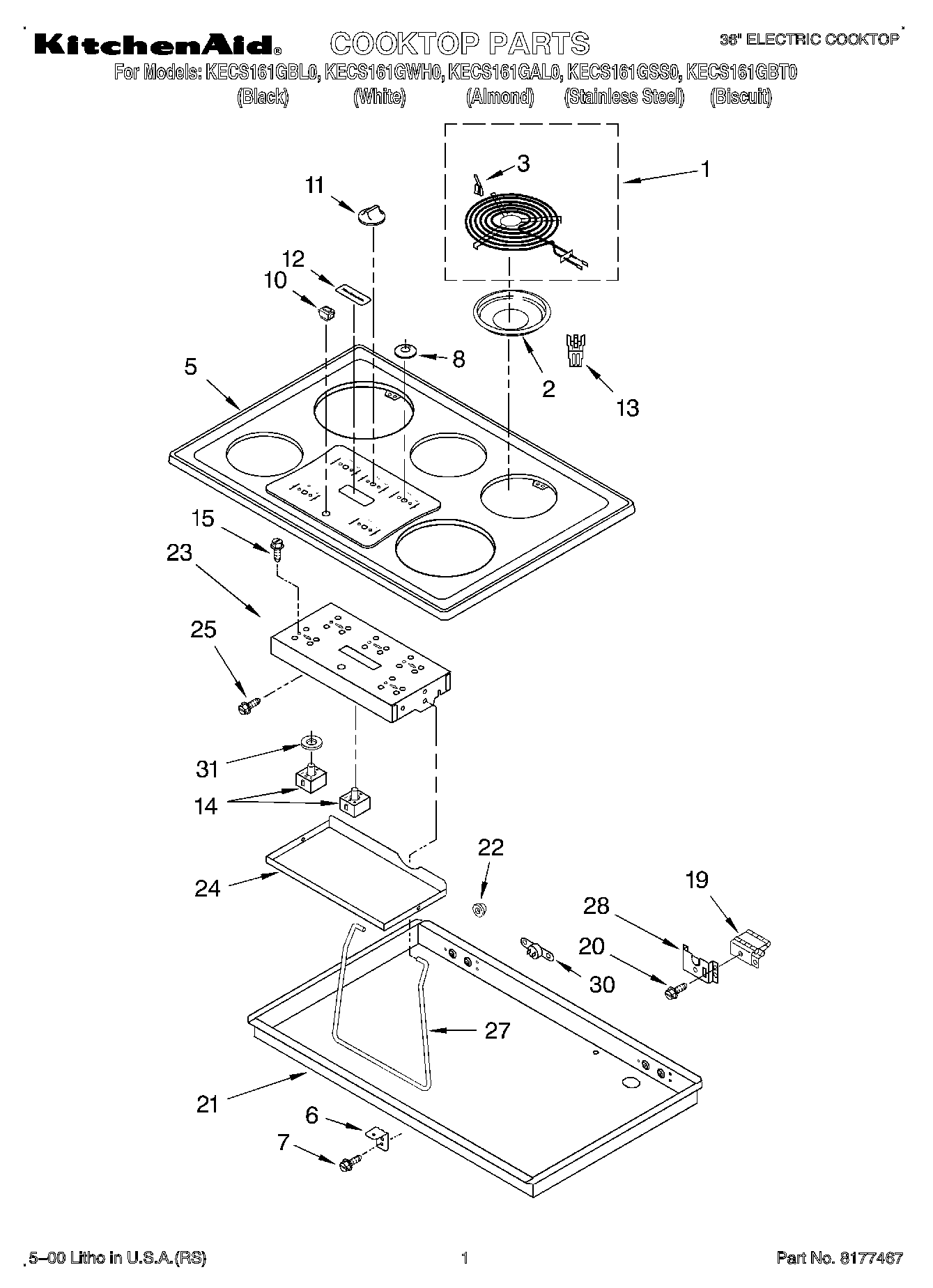

KECS161GBT0 01 – SECTION

Products

PositionProduct
WPL LIT3191538
WPL LIT3191536
1Surface Element (2600W RF)
1WP3191455 Whirlpool Surface Element
1WP3191454 Whirlpool Surface Element
2DRIP BOWL 8" W/HOLE CHROME
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
3WP3195917 Whirlpool Clip Assembly
5Cooktop (Stainless Steel)
5Cooktop (Biscuit)
5Cooktop (Almond)
5Cooktop (White)
5Cooktop (Black)
6Bracket, Installation
7Screw, 10-24 x 2.5
8Collar, Knob (Black)
8Collar, Knob (White)
8Collar, Knob (Almond)
8Collar, Knob (Biscuit)
10WP4456181 Whirlpool Indicator Light
11WP9750372FF Whirlpool Knob
11WP9750372FW Whirlpool Knob Assembly
11Knobs, Control (4) (Almond)
11WP9750372FC Whirlpool Knob
12Nameplate (Almond)
12Nameplate (Biscuit)
12Nameplate (White)
12Nameplate (Black)
13WP9760411 Whirlpool Clip
14WP3191473 Whirlpool Infinite Switch
14WP3191472 Whirlpool Infinite Switch
14WP3191471 Whirlpool Infinite Switch
153400855 Whirlpool Oven Screw
19Hinge (2)
20WP3177991 Whirlpool Screw
21Burner Box
22Bushing, Fiber
23Bracket, Switch Mounting
24Cover, Switch Box
25WP3196557 Whirlpool Screw
27Rod, Top Support
28Bracket, Hinge
30TOD, Reset
31Harness, Wire (Main
31Harness, Wire (Main Center)
31Harness, Pilot Light
31Harness, Wire (Main RR-RF)
31Bushing
31WP3400015 Whirlpool Screw
313183956 Whirlpool Oven Seal Switch
313184020 Whirlpool Oven Wire
31Conduit
