KECS161GBT1 01 – SECTION

KECS161GBT1 01 – SECTION

Written by

in

KECS161GBT1 01 – SECTION

Products

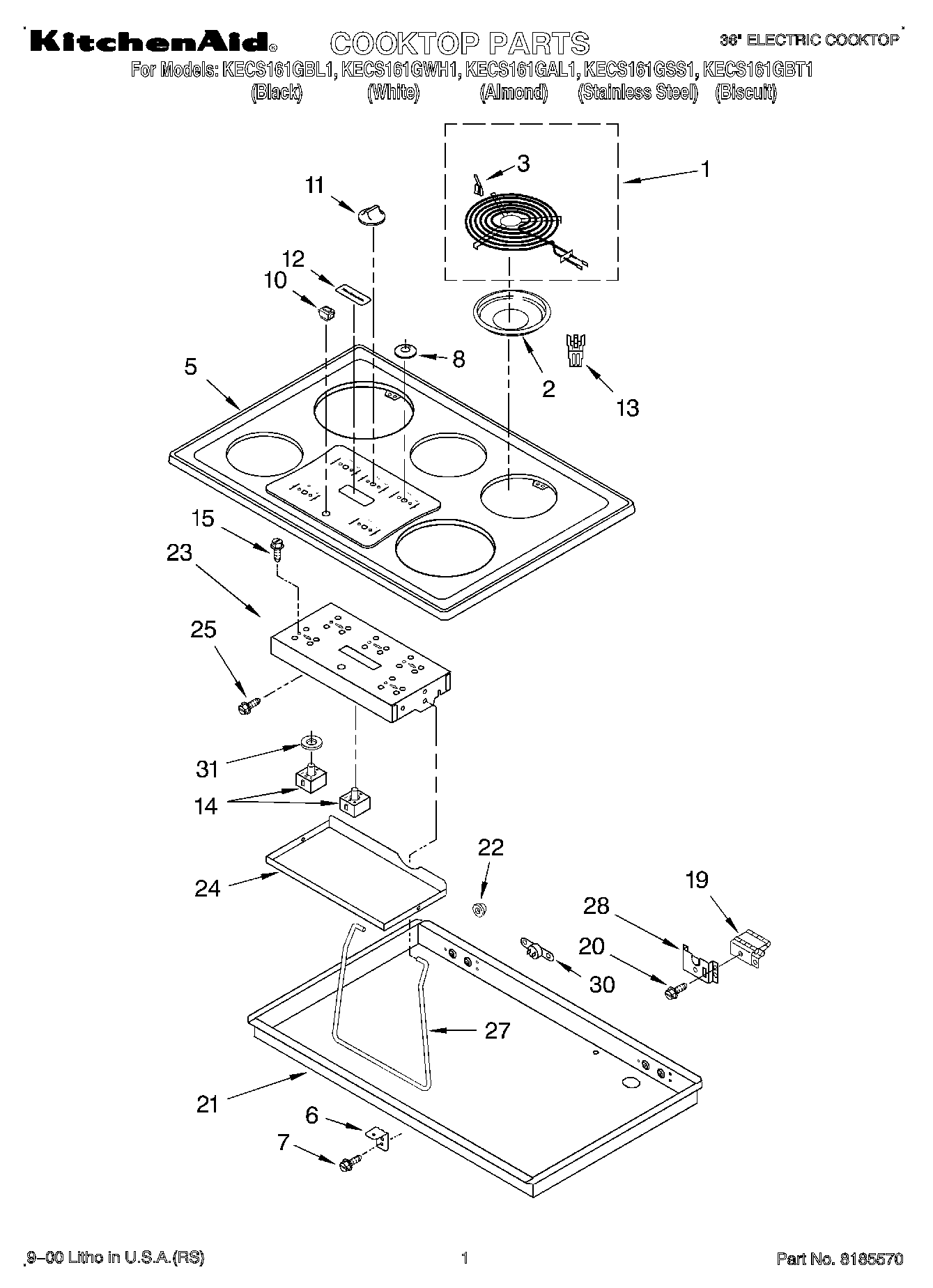

PositionProduct
Safer Cooking Tips
WPL LIT3191536
WPL LIT3192087
WPL LIT3191538
1Surface Element (2600W RF)
1WP3191454 Whirlpool Surface Element
1WP3191455 Whirlpool Surface Element
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2DRIP BOWL 8" W/HOLE CHROME
3WP3195917 Whirlpool Clip Assembly
5Cooktop (Black)
5Cooktop (White)
5Cooktop (Almond)
5Cooktop (Stainless Steel)
5Cooktop (Biscuit)
6Bracket, Installation
7Screw, 10-24 x 2.5
8Collar, Knob (Biscuit)
8Collar, Knob (White)
8Collar, Knob (Black)
8Collar, Knob (Almond)
10WP4456181 Whirlpool Indicator Light
11WP9750372FW Whirlpool Knob Assembly
11Knobs, Control (4) (Almond)
11WP9750372FF Whirlpool Knob
11WP9750372FC Whirlpool Knob
12Nameplate (Almond)
12Nameplate (Black)
12Nameplate (White)
12Nameplate (Biscuit)
13WP9760411 Whirlpool Clip
14WP3191473 Whirlpool Infinite Switch
14WP3191472 Whirlpool Infinite Switch
14WP3191471 Whirlpool Infinite Switch
153400855 Whirlpool Oven Screw
19Hinge (2)
21Burner Box
23Bracket, Switch Mounting
24Cover, Switch Box
25WP3196557 Whirlpool Screw
27Rod, Top Support
28Bracket, Hinge
30TOD, Reset
31Harness, Wire (Main Center)
31Conduit
31Harness, Pilot Light
31Harness, Wire (Main RR-RF)
31Bushing
314448664 Whirlpool Oven Mounting Bracket
31W10491985 Whirlpool Screw
31WP3400015 Whirlpool Screw
313183956 Whirlpool Oven Seal Switch
313184020 Whirlpool Oven Wire
31Harness, Wire (Main
