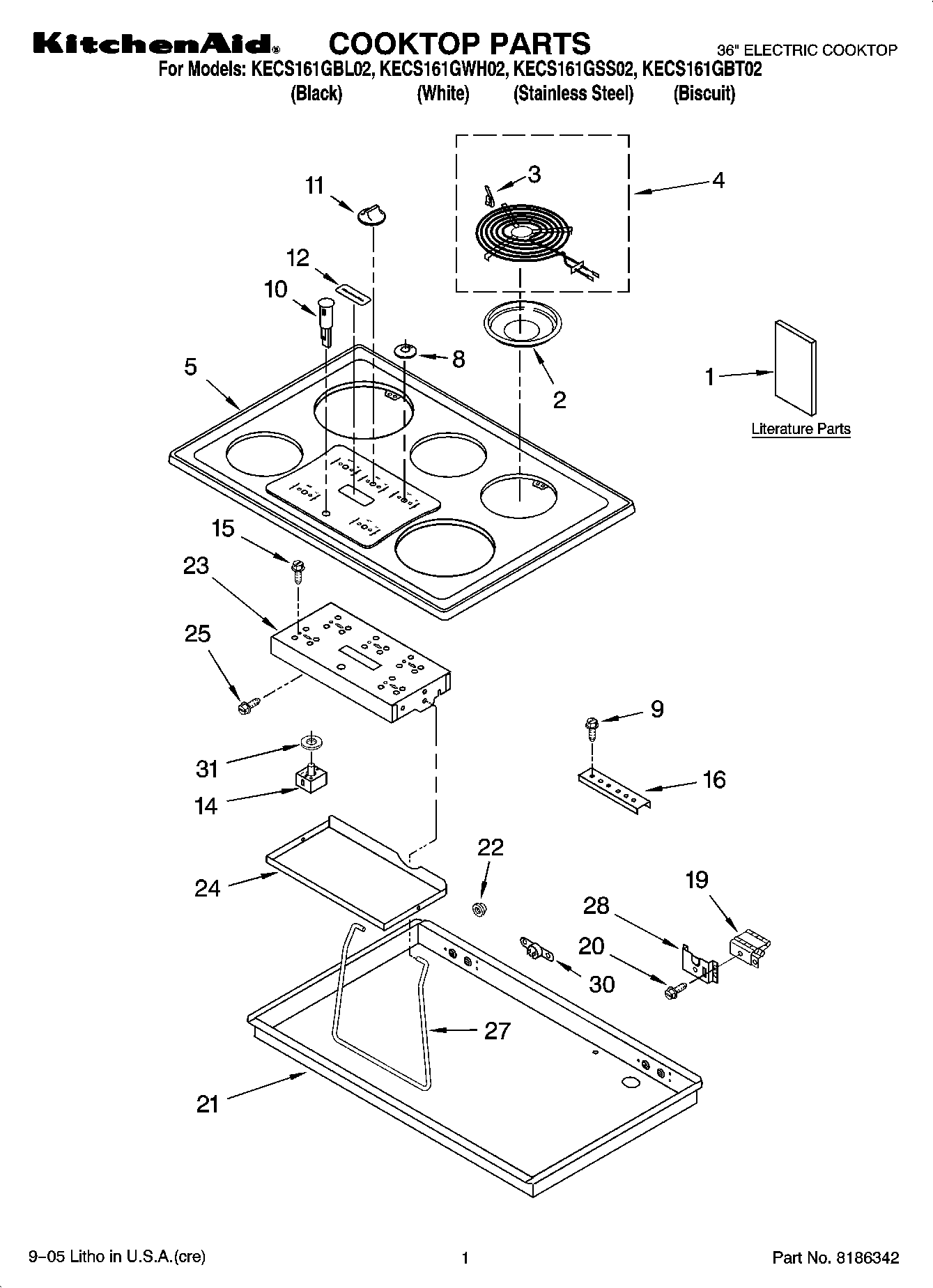

KECS161GWH02 01 – COOKTOP PARTSadmin2025-04-26T09:34:37+00:00KECS161GWH02 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | Use & Care Guide |
| 1 | Wiring Diagram |
| 1 | Safe Cooking Tips (French) |
| 1 | Safe Cooking Tips |
| 1 | Installation, Instructions |
| 2 | DRIP BOWL 8" W/HOLE CHROME |
| 2 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 3 | WP3195917 Whirlpool Clip Assembly |
| 4 | WP3191454 Whirlpool Surface Element |
| 4 | Surface Element (2600W RF) |
| 4 | WP3191455 Whirlpool Surface Element |
| 5 | Cooktop (Biscuit) |
| 5 | Cooktop (White) |
| 5 | Cooktop (Black) |
| 5 | Cooktop (Stainless Steel) |
| 8 | Collar, Knob (Black) |
| 8 | Collar, Knob (White) |
| 8 | Collar, Knob (Biscuit) |
| 9 | WP3400093 Whirlpool Screw |
| 10 | WP4456181 Whirlpool Indicator Light |
| 11 | WP9750372FC Whirlpool Knob |
| 11 | WP9750372FW Whirlpool Knob Assembly |
| 11 | WP9750372FF Whirlpool Knob |
| 12 | Nameplate (Biscuit) |
| 12 | Nameplate (White) |
| 12 | Nameplate (Black) |
| 14 | WP3191471 Whirlpool Infinite Switch |
| 14 | WP3191472 Whirlpool Infinite Switch |
| 14 | WP3191473 Whirlpool Infinite Switch |
| 15 | 3400855 Whirlpool Oven Screw |
| 16 | 8186533 Whirlpool Hardware |
| 19 | Hinge (2) |
| 21 | Burner Box |
| 23 | Bracket, Switch Mounting |
| 24 | Cover, Switch Box |
| 25 | WP3196557 Whirlpool Screw |
| 27 | Rod, Top Support |
| 28 | Bracket, Hinge |
| 30 | TOD, Reset |
| 31 | WPL 4457153 |
| 31 | Harness, Wire |
| 31 | Harness, Wire (Main LF-LR) |
| 31 | Harness, Wire (Main RR-RF) |
| 31 | W10491985 Whirlpool Screw |
| 31 | WP3400015 Whirlpool Screw |
| 31 | 4448664 Whirlpool Oven Mounting Bracket |
| 31 | 3183956 Whirlpool Oven Seal Switch |
| 31 | 3184020 Whirlpool Oven Wire |
| 31 | Bushing |
| 31 | WPL ARI84738A9 |
