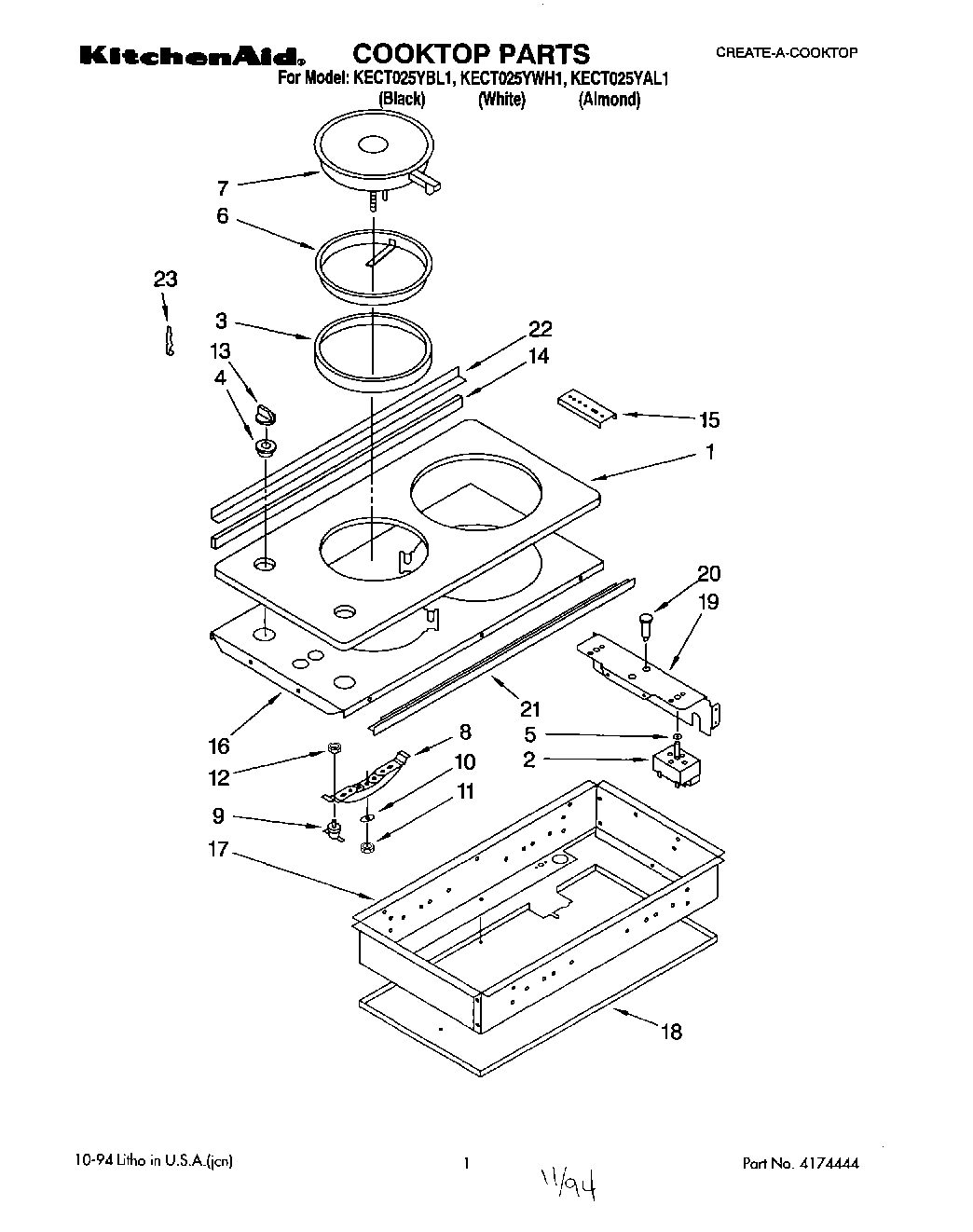

KECT025YAL1 01 – SECTION

Products

Position	Product
	Use & Care Guide
	Installation Instructions
	Hardware Assembly
1	Cooktop, Glass (Black)
1	Cooktop, Glass (White)
1	Cooktop, Glass (Almond)
2	Switch, Inifinite (Front Burner (Green Shaft))
2	Switch, Inifinite (Rear Burner (Orange Shaft))
2	WP486579 Whirlpool Air Conditioner Screw
3	Seal, Burner
4	Seal, Inifinite Switch
5	Seal, Switch Shaft (2)
6	gasket, ring (1.5 KW)
6	gasket, ring (2.0 KW)
7	8203517 Whirlpool Oven Surface Element
7	Element, Solid (Rear Burner)
8	bracket, element (2.0 KW)
8	bracket, element (1.5 KW)
9	Thermostat (2)
10	Spring, Leaf
11	hex nut (8)
12	Nut, Metric
13	Knob, Cooktop (Black)
13	Knob, Cooktop (White)
13	Knob, Cooktop (Almond)
14	seal, foam tape
15	Screw
15	Nut, Tinnerman (2)
15	8186533 Whirlpool Hardware
16	Top, Burner Box
17	Side, Burner Box (2)
17	WP488729 Whirlpool Refrigerator Door Screw
18	Bottom, Burner Box
19	WPL 312318
19	Bracket, Control Panel
20	Light, Indicator (2)
21	Trim, Extrusion (White)
21	Trim, Extrusion (Black)
21	Trim, Extrusion (Almond)
22	Bracket, Angle
23	Seal, Hook
